71201 (12-32 XL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

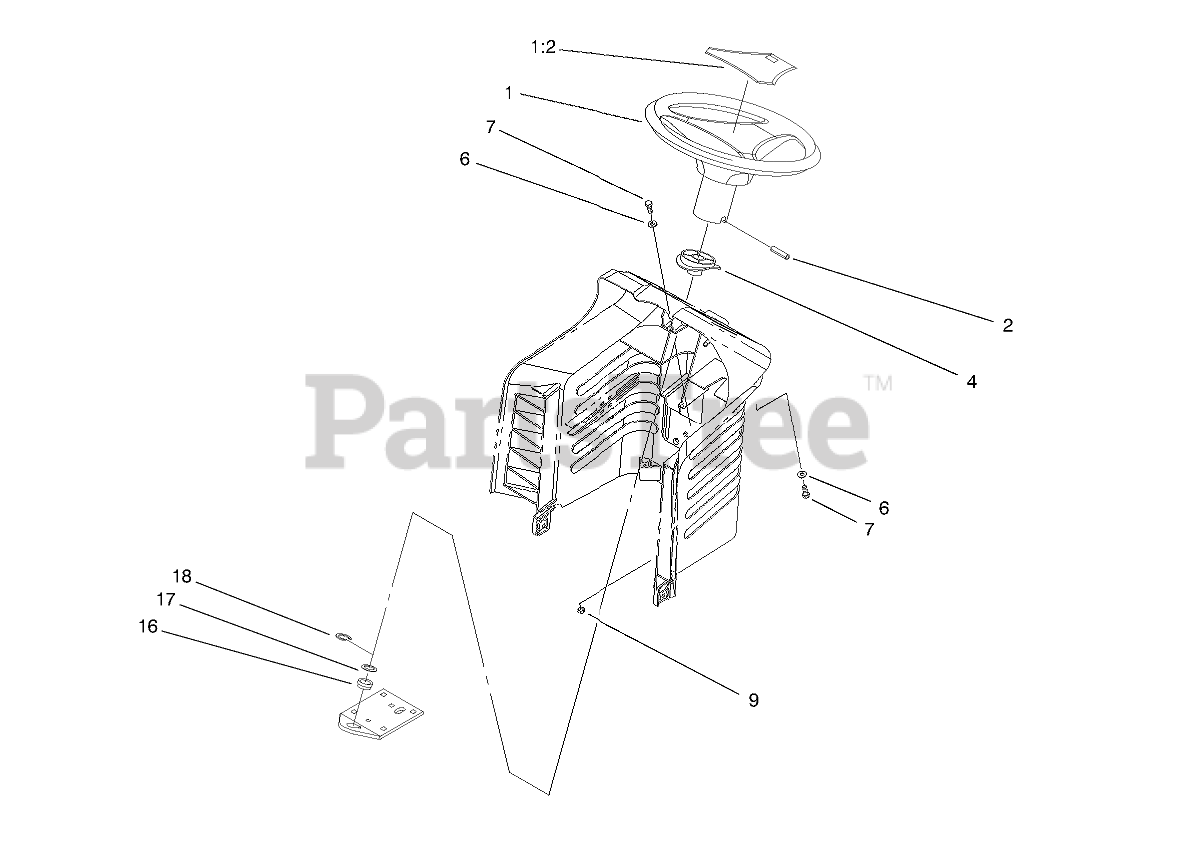

STEERING ASSEMBLY Parts Diagram

  • Title
1

Toro 88-3850

Steering Wheel
(Superseded to 98-1467)

$274.99

$

Usually ships in 3-6 days

0

1:2

Toro 88-3870

COVER-WHEEL

$

$

Not available

2

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

4

Toro 88-4190

BUSHING-SLIDING

$18.99

$

In Stock, only 1 left!

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 88-5150

BEARING-FLANGE

$3.99

$

In Stock, Qty 16

0

17

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

18

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0
