71201 (12-32 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) DECK ASSEMBLY (32" CUTTING UNIT) Parts Diagram

Lawn Tractor

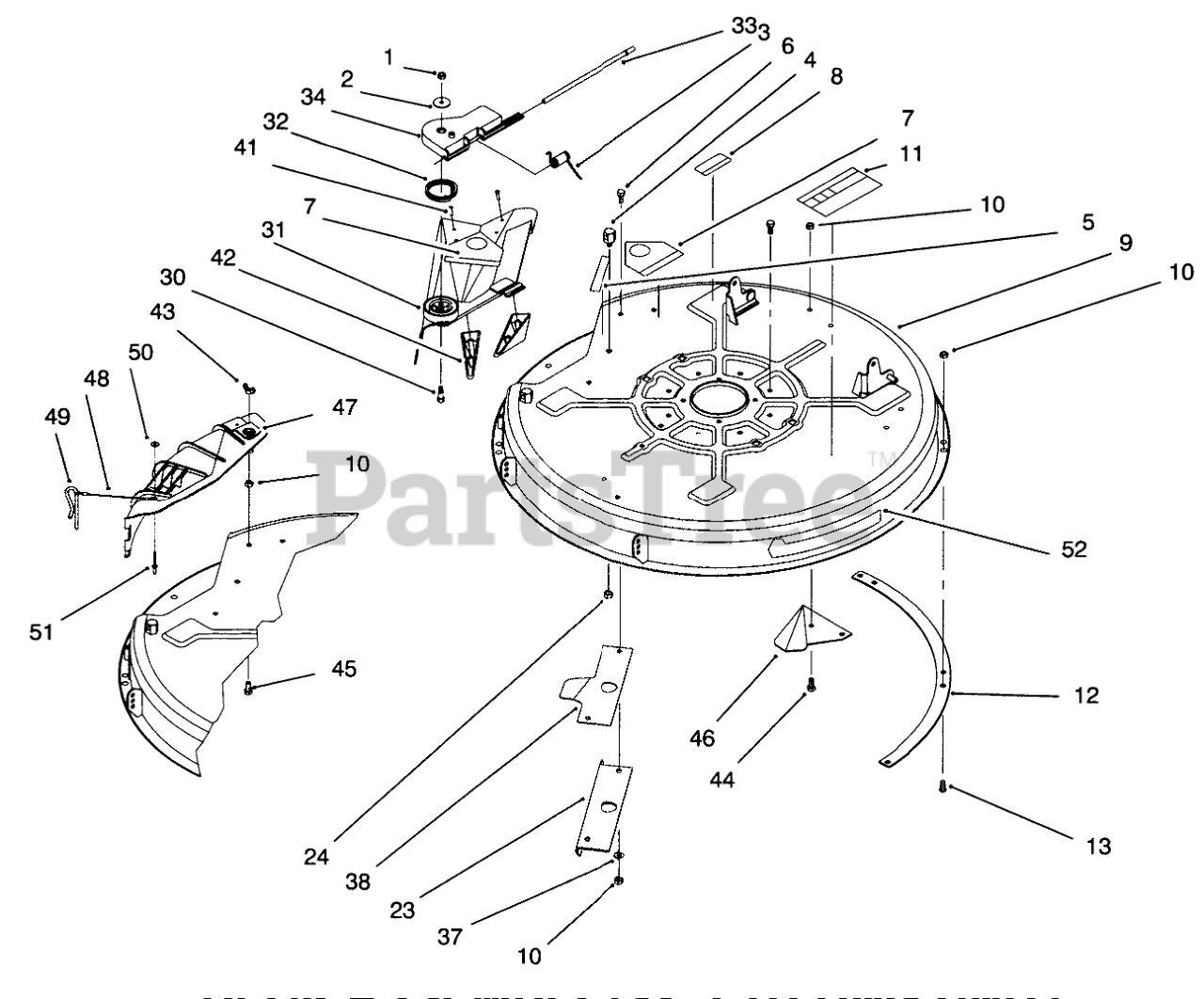

DECK ASSEMBLY (32" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

3

Toro 92-2493

SPRING-TORSION

$12.99

$

In Stock, only 2 left!

0

4

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

5

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

Toro 93-7009

DECAL-DANGER

Note: Not illustrated

$7.49

$

In Stock, only 1 left!

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

Toro 93-7010

DECAL-DANGER

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

8

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

Toro 93-6674

DECAL-WARNING

Note: Not illustrated

$7.49

$

Usually ships in 3-6 days

0

9

Toro 88-5790-01

Cutter Deck-32"
(Superseded to 95-7482)

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

12

Toro 80-4490

RING-DECK
(Superseded to 80-4490-03)

$19.99

$

Usually ships in 3-6 days

0

13

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

23

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available

24

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

30

Toro 92-8916

BOLT-SHOULDER

$15.99

$

In Stock, only 1 left!

0

31

Toro 93-0318

Deflector Assembly (Incl. Ref. #7)

$104.99

$

In Stock, only 1 left!

0

Toro 93-7694

Deflector Ass-y (Incl. Ref. #7) (Model No. 71201 Only)

Note: Not illustrated

$137.99

$

Usually ships in 3-6 days

0

32

Toro 88-6160

SPRING-TORSION

$35.99

$

In Stock, only 1 left!

0

33

Toro 88-6150

ROD-HINGE, DEFLECTOR

$

$

Not available

34

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$22.99

$

In Stock, only 2 left!

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Toro 92-2494

Ramp-Deflector
(Superseded to 92-2494-03)

$28.99

$

Usually ships in 3-6 days

0

41

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

42

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

43

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

44

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

46

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$33.99

$

In Stock, only 4 left!

0

47

Toro 83-7010

Brace-Cover, Rear
(Superseded to 83-7010-03)

$27.99

$

Usually ships in 3-6 days

0

48

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

49

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

50

Toro 2356-49

Washer-Flat (Model No. 71201 Only)

$

$

Currently unavailable

51

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

52

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.49

$

In Stock, Qty 20+

0

Toro 82-6150

Discharge Cover Assembly (Incl. Ref. #47-51) (Model No. 71201 Only)
(Superseded to 82-6151)

Note: Not illustrated

$121.99

$

In Stock, only 2 left!

0
