71200 (12-32 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

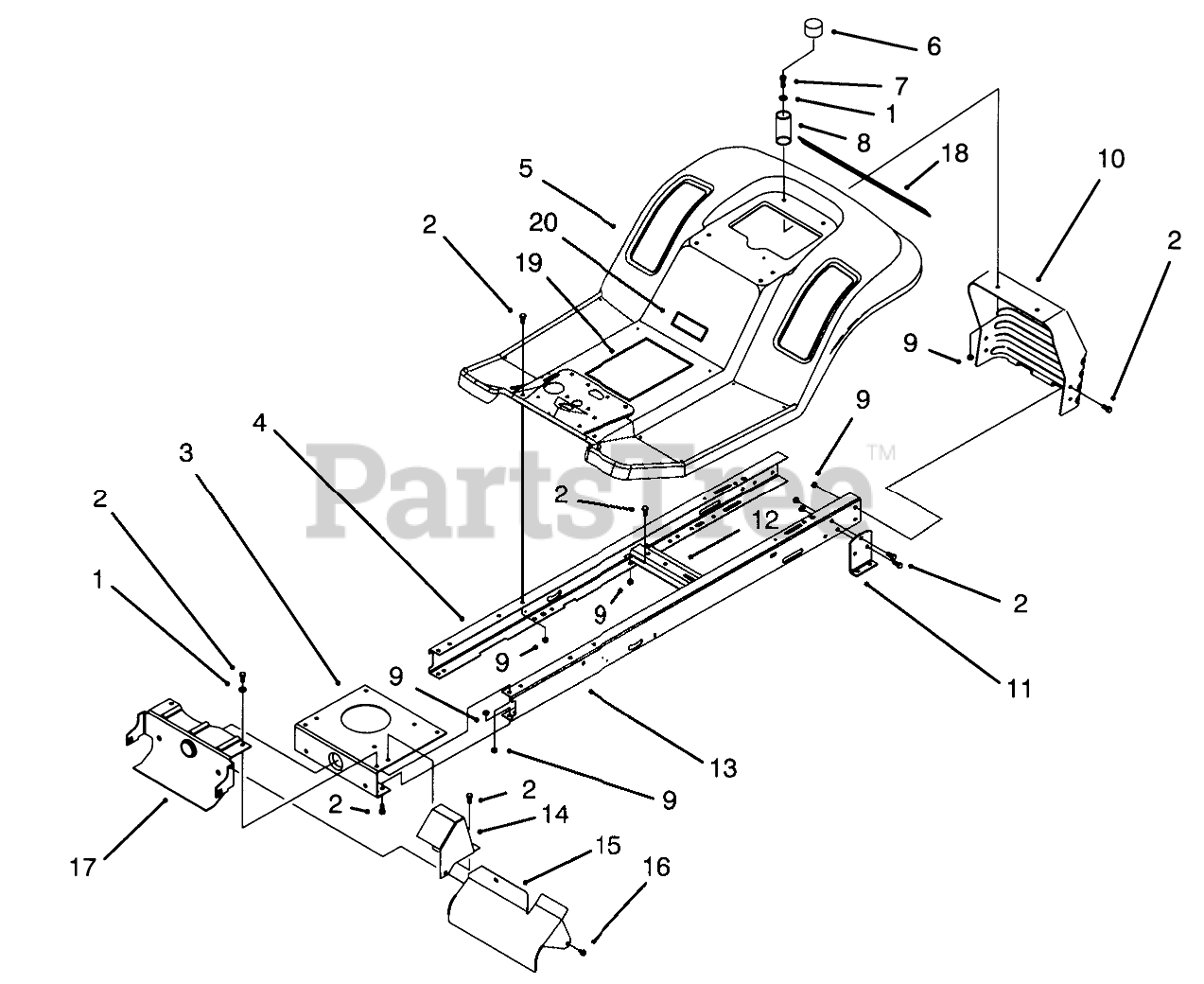

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

3

Toro 88-4630

Plate-Engine Mount
(Superseded to 88-4630-03)

$

$

Not available

4

Toro 88-4650

Frame-Rail R.H.
(Superseded to 99-2959-03)

$120.99

$

Usually ships in 3-6 days

0

5

Toro 88-3840-01

BODY-REAR

$768.99

$

Usually ships in 3-6 days

0

6

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 88-6220

SPRING-COMPRESSION

$33.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 88-3940

Panel-Rear Hitch
(Superseded to 99-2957-03)

$183.99

$

Usually ships in 3-6 days

0

11

Toro 88-5260

Bracket-Transaxle
(Superseded to 88-5260-03)

$14.99

$

In Stock, only 1 left!

0

12

Toro 88-4620

Bracket-Idle Pivot
(Superseded to 88-4620-03)

$

$

Not available

13

Toro 88-4660

Frame-Rail L.H.
(Superseded to 99-2958-03)

$120.99

$

Usually ships in 3-6 days

0

14

Toro 88-4960

Shield-Exhaust Pipe
(Superseded to 88-4960-03)

$

$

Not available

15

Toro 88-6290

Shield-Muffler
(Superseded to 88-6290-03)

$55.99

$

Usually ships in 3-6 days

0

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 88-5120

Support-FrontAxle
(Superseded to 110-8636-03)

$69.99

$

Usually ships in 3-6 days

0

18

Toro 92-2489

DECAL - REAR BODY

$

$

Not available

19

Toro 92-2484

Decal-Instruction
(Superseded to 94-1237)

$

$

Not available

Toro 93-1365

Decal-Instruction
(Superseded to 94-1237)

Note: Not illustrated

$

$

Not available

20

Toro 117242

Decal-Made In USA
(Superseded to 76-1340)

$16.99

$

In Stock, only 1 left!

0
