712 S (1690213) - AGCO Garden Tractor, 12hp (SN: 2297 - 3750) Seat & Deck Group Parts Diagram

Garden Tractor, 12hp (SN: 2297 - 3750)

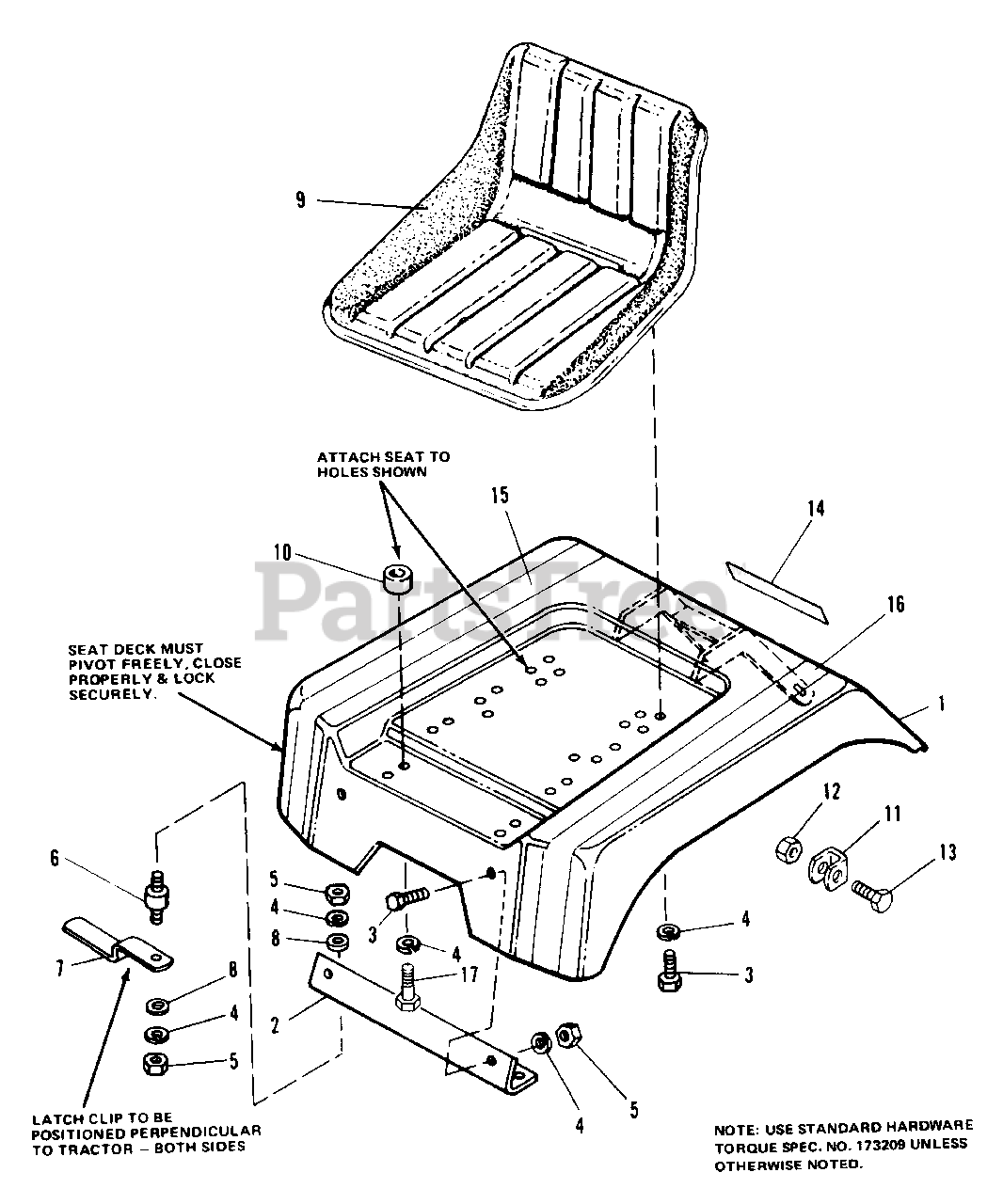

Seat & Deck Group Parts Diagram

  • Title

1

Simplicity 166111

SEAT, Deck

$

$

Not available

2

Simplicity 2164029SM

BRACKET, Frt. Seat Deck

$

$

Not available

3

Simplicity 2825205

CAPSCREW, 5/16-18 x 5/8

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2157094SM

CONNECTOR, Cushion

$

$

Not available

7

Simplicity 1606823SM

CLIP

$

$

Not available

8

Simplicity 2817377

WASHER, 1/4

$

$

Not available

9

Simplicity 1686712SM

SEAT

$487.99

$

Usually ships in 2-12 days

0

10

Simplicity 1707571SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1607870SM

STOP, Seat Deck
(Superseded to 1607870ASM)

$52.99

$

Usually ships in 2-12 days

0

12

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 2153166

DECAL, Simplicity

$

$

Not available

15

Simplicity 1657282

DECAL, Stripe, R.H.

$

$

Not available

16

Simplicity 1657283

DECAL, Stripe, L.H.

$

$

Not available

17

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1 1/4

$

$

Not available
