712 (712242) - Cub Cadet 2,250 Watt Portable Generator (1982) Series 712A Generator Parts Diagram

2,250 Watt Portable Generator

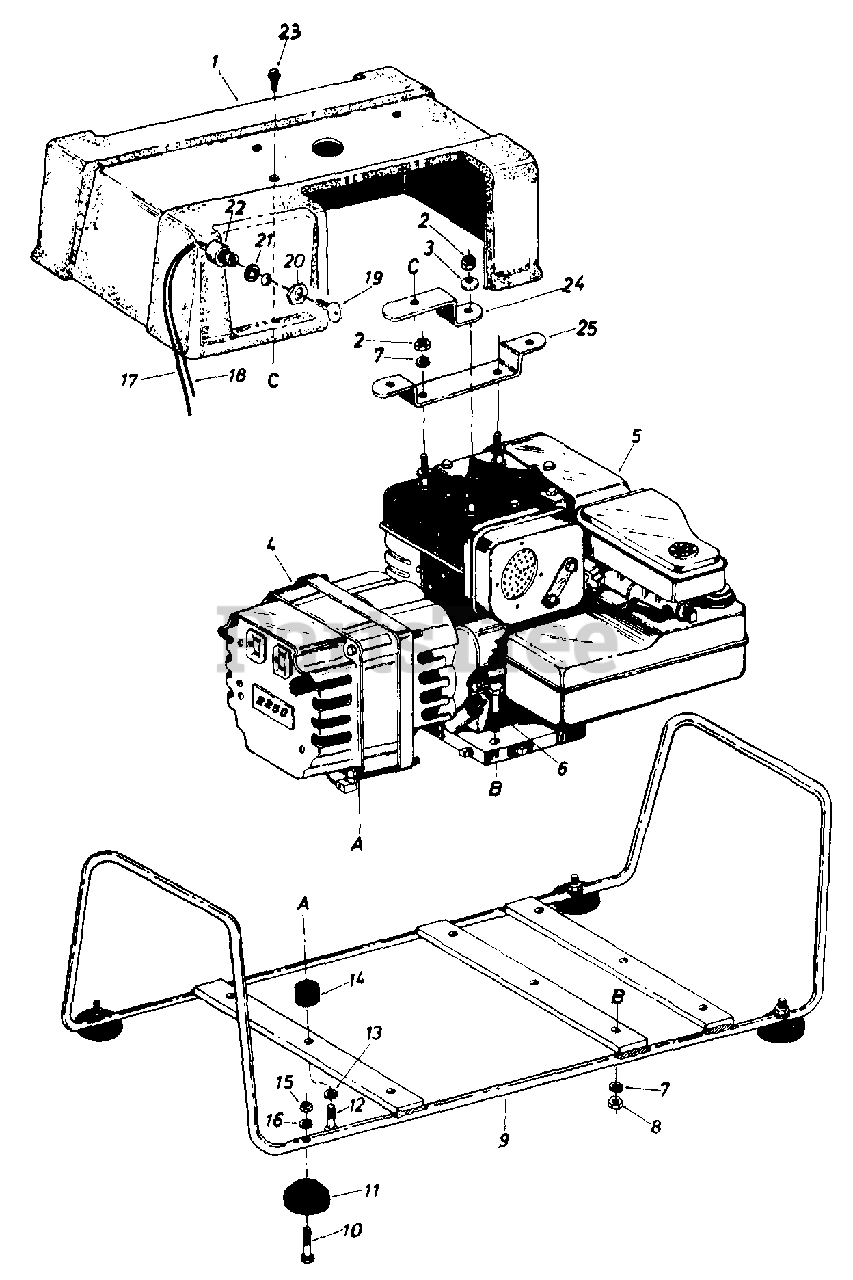

Series 712A Generator Parts Diagram

  • Title
1

Cub Cadet 731-0560

Cover

Note: Code N

$

$

Currently unavailable

2

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0242

Belleville Wash. .345 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

4

Generator

$

$

Not available

5

Engine

$

$

Not available

6

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 11

0

7

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 14682

Carriage Ass'y.

Note: Code N

$

$

Currently unavailable

10

Cub Cadet 710-0524

Truss Mach. Scr. 1/4-20 x 1.75" Lg.

$

$

Currently unavailable

11

Cub Cadet 735-0212

Rubber Bumper

$

$

Currently unavailable

12

Cub Cadet 710-0259

Hex Sems Bolt 5/16-18 x .62" Lg.

$

$

Not available

13

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 735-0213

Rubber Bumper

$

$

Currently unavailable

15

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 725-0814

Electric Wire

Note: (Ground on Gen.) Code N

$

$

Currently unavailable

18

Cub Cadet 725-0800

Electric Wire

Note: (To Engine) Code N

$

$

Currently unavailable

19

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

20

Part of Ref. No. 22

$

$

Not available

21

Part of Ref. No. 22

$

$

Not available

22

Cub Cadet 725-0802

Ignition - Safety Switch

Note: Code N

$

$

Currently unavailable

23

Cub Cadet 710-0607

Hex Wash Hd. TT-Tapp Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

24

Cub Cadet 14686

Cover Bracket

Note: Code N

$

$

Currently unavailable

25

Cub Cadet 14688

Cover Bracket

Note: Code N

$

$

Currently unavailable
