71199 (XL 320) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 219907-0170-E1 Parts Diagram

Lawn Tractor

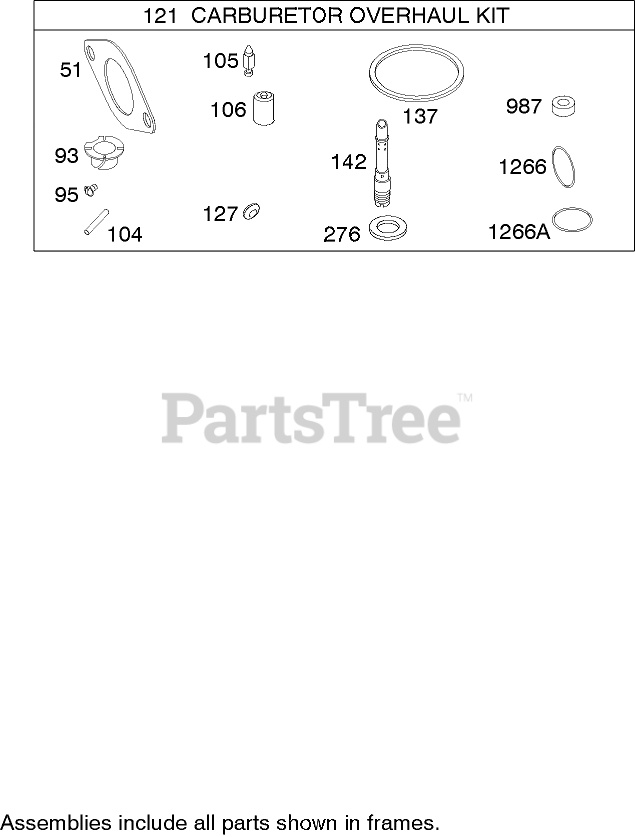

CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 219907-0170-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 790031

Carburetor Overhaul Kit
(Superseded to 796185)

Note: Obtain parts from www.briggsandstratton.com

$112.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 790025

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 790025

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$24.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 18

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0
