71199 (12-32 XL) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) "L" ENGINE SYSTEM COMPONENTS ASSEMBLY Parts Diagram
Lawn Tractor

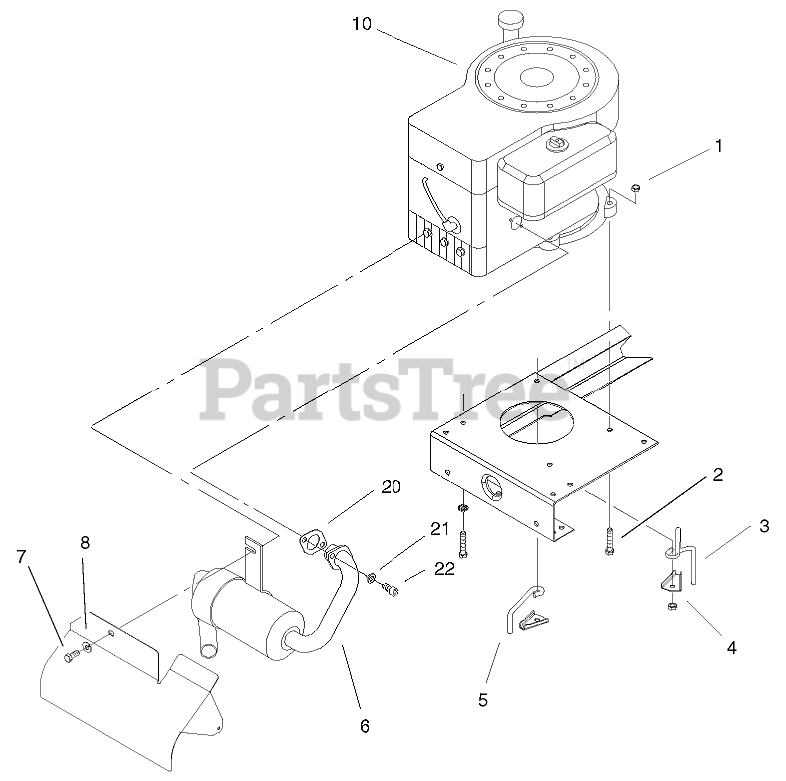

"L" ENGINE SYSTEM COMPONENTS ASSEMBLY Parts Diagram
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 322-9
SCREW-HH
$3.49
$
In Stock, only 3 left!
Toro 88-6060
GUIDE-BELT, LH
$23.99
$
Usually ships in 3-6 days
Toro 76-3820
ANCHOR-GUIDE, BELT
$2.49
$
Usually ships in 3-6 days
Toro 88-5490
GUIDE-BELT, RH
$19.99
$
Usually ships in 3-6 days
Toro 88-6480
MUFFLER
$386.99
$
Usually ships in 3-6 days
Toro 321-4
SCREW-HH
$1.49
$
In Stock, Qty 20+
Toro 3253-3
WASHER-LOCK
$0.99
$
In Stock, Qty 20+
10
Engine-Briggs and Stratton (284707-1148-E1)
Note: Not serviced
$
$
Not available
Toro 88-4410
GASKET-EXHAUST
$19.99
$
In Stock, Qty 6
Toro 3253-4
WASHER-LOCK
$0.99
$
In Stock, Qty 20+
Toro 3274-10
SCREW-HSH
$9.99
$
In Stock, Qty 13
