71199 (12-32 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

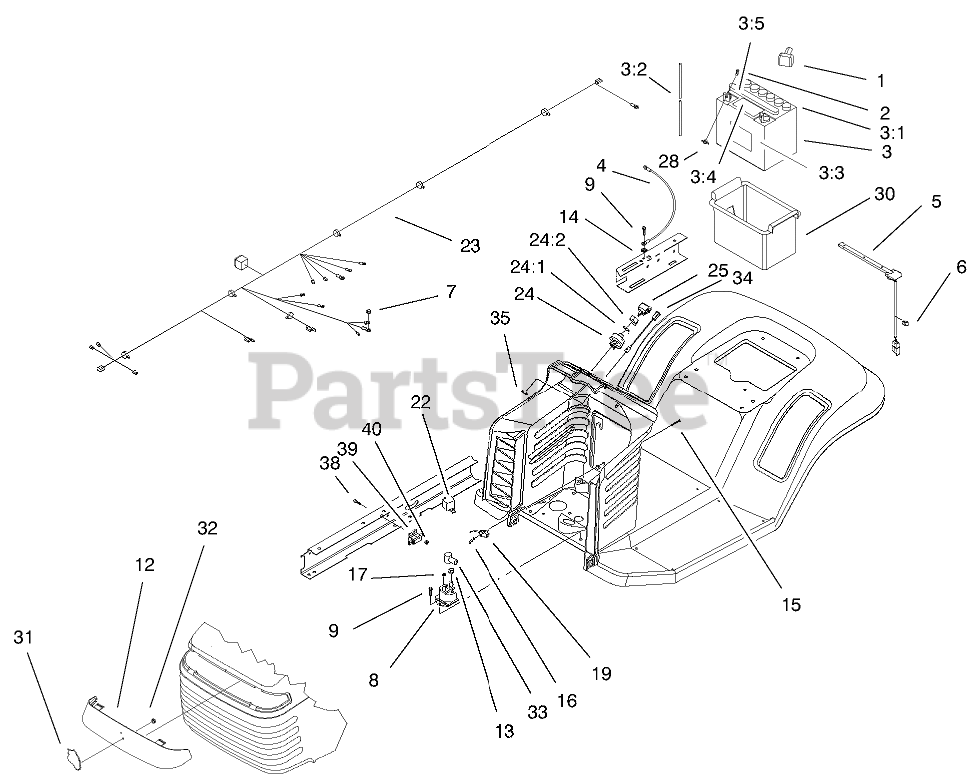

ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

3:1

Toro 218-560

CAP-BATTERY

$

$

Not available

3:2

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

3:3

Toro 93-6668

DECAL-BATTERY

$18.99

$

Usually ships in 3-6 days

0

3:4

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

3:5

Toro 93-9354

DECAL - DANGER

$

$

Not available

4

Toro 44-8110

WIRE ASM

$27.99

$

Usually ships in 3-6 days

0

5

Toro 38-1420

SWITCH-SEAT

$

$

Not available

6

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 28-4210

SOLENOID

$64.99

$

In Stock, only 2 left!

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

12

Toro 88-3960

LENS-HEADLIGHT

$67.99

$

In Stock, only 1 left!

0

13

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 93-0539

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

17

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

19

Toro 88-9932

SWITCH-MICRO

$36.99

$

In Stock, only 3 left!

0

22

Toro 98-7249

RELAY

$22.99

$

In Stock, only 1 left!

0

23

Toro 99-6841

HARNESS-WIRE, GEAR

$

$

Not available

24

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 11

0

24:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

24:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

25

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

30

Toro 88-4040

BOX-BATTERY

$36.99

$

Usually ships in 3-6 days

0

31

Toro 80-2240

EMBLEM-GRILLE WHEELHORSE

$

$

Not available

32

Toro 3290-299

CLIP

$

$

Not available

33

Toro 94-5362

BOOT-TERMINAL INSULATOR

$4.49

$

In Stock, only 1 left!

0

34

Toro 95-7652

LIGHT-INDICATOR

$47.99

$

Usually ships in 3-6 days

0

35

Toro 99-6059

CLIP-RETAINER
(Superseded to 32151-80)

$1.49

$

In Stock, Qty 7

0

38

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 20+

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
