71199 (12-32 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 284707-1148-E1 Parts Diagram

Lawn Tractor

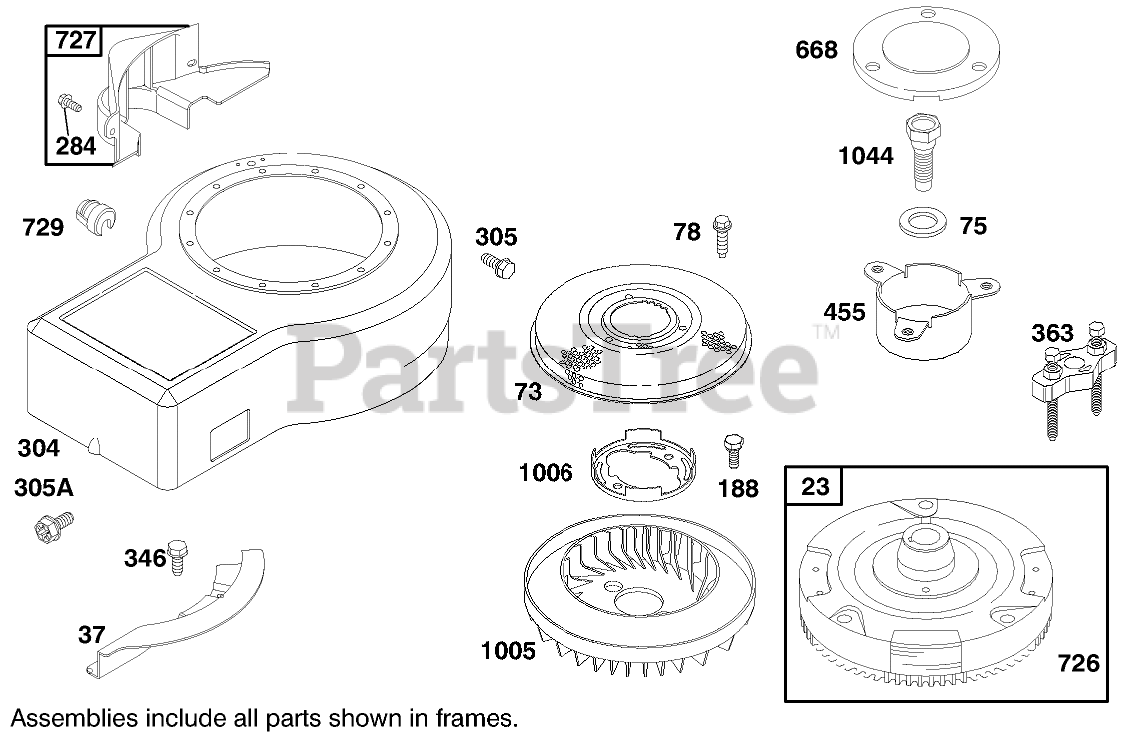

ENGINE BRIGGS & STRATTON MODEL 284707-1148-E1 Parts Diagram

  • Title
23

Briggs & Stratton 492326

Flywheel
(Superseded to 693557)

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 224517

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 225136

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 94626

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

284

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

304

Briggs & Stratton 496319

Housing-Blower
(Superseded to 690846)

$108.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

305A

Briggs & Stratton 94905

Screw-Torx Hex.
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

346

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 399676

Gear-Ring (Includes Mtg Hardware)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0
