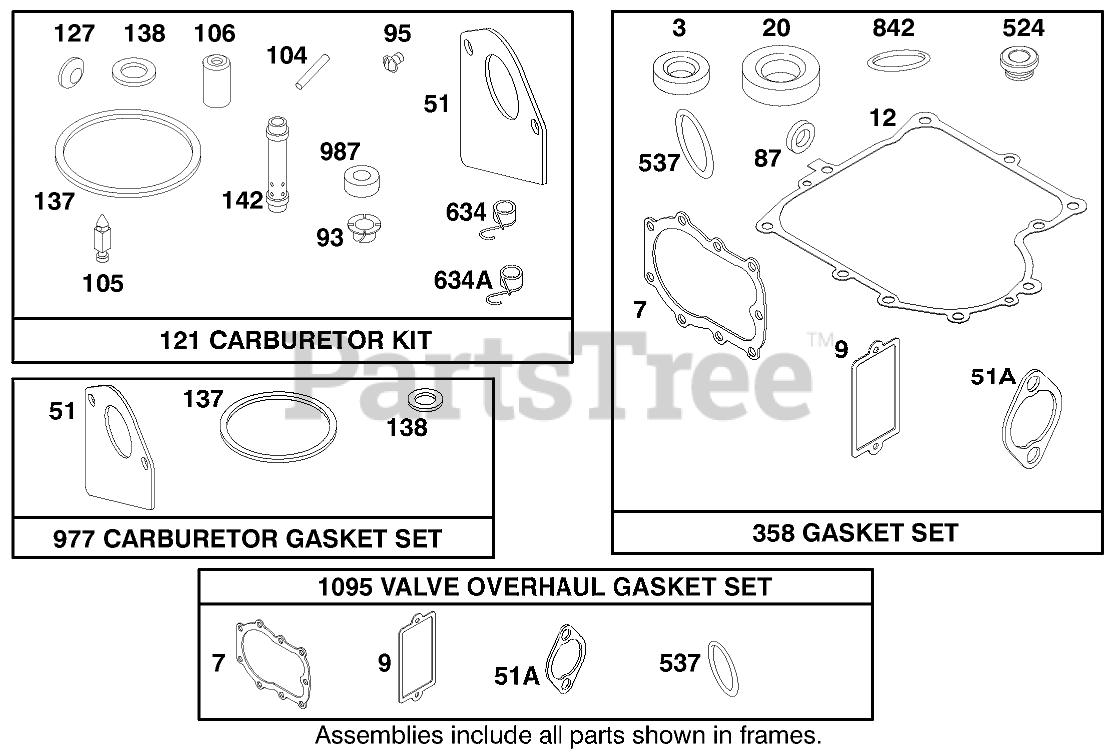

71199 (12-32 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 284707-1148-E1 Parts Diagram

Briggs & Stratton 391086

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 271866

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 271866

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

Briggs & Stratton 27803

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 27803

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

Briggs & Stratton 271916

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 271997

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 271996

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 291675

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 272465

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 272465

Note: Included in Carburetor Gasket Set-Part No. 494385.

Briggs & Stratton 272554

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

Briggs & Stratton 272554

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 491323

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 281346

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 94098

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 231789

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 231855

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 231854

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 499220

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 281165

Note: Included in Carburetor Gasket Set-Part No. 494385.

Briggs & Stratton 281165

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 281164

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 281164

Note: Included in Carburetor Gasket Set-Part No. 494385.

Briggs & Stratton 497566

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 494241

Briggs & Stratton 281370

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 281106

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

Briggs & Stratton 281106

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 494453

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 494555

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 270920

Note: Included in Gasket Set-Part No. 494241.

Briggs & Stratton 494385

Briggs & Stratton 281166

Note: Included in Carburetor Kit-Part No. 499220.

Briggs & Stratton 498539
