71197 (17-44 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

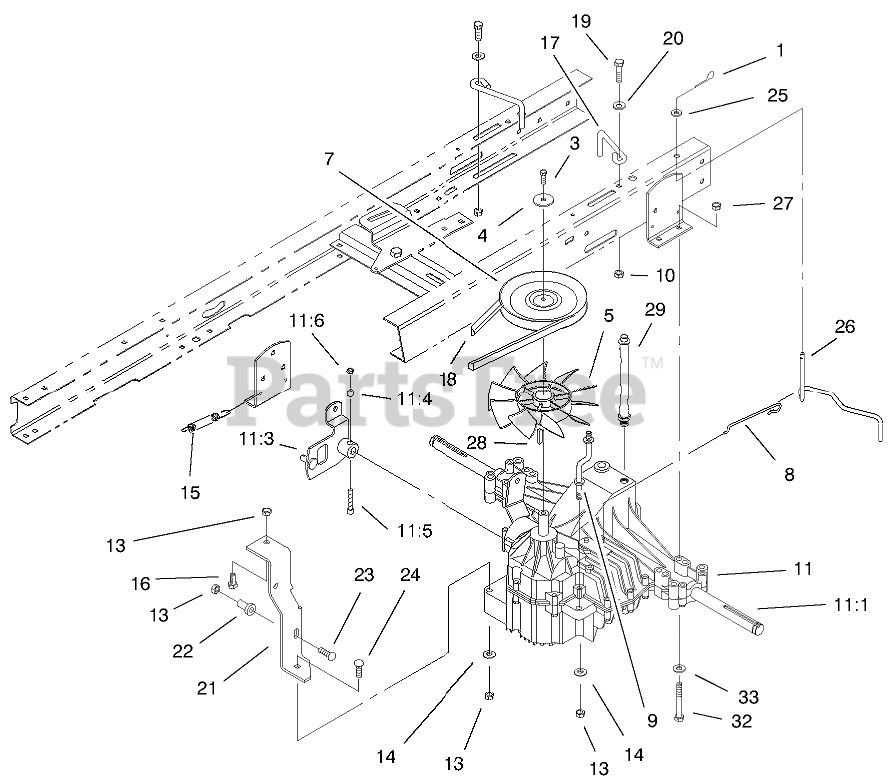

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

3

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

5

Toro 93-3867

FAN - 10 BLADE 7" DIA.

$77.99

$

Usually ships in 3-6 days

0

7

Toro 93-3862

PULLEY, TRANSMISSION

$151.99

$

In Stock, only 1 left!

0

8

Toro 92-8856

WIRE - BYPASS

$

$

Not available

9

Toro 93-3872

STRAP - TORQUE

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

ASM-Transaxle Hydro 1644

$

$

Not available

11:1

Toro 95-2727

Transaxle ASM-Hydro
(Superseded to 95-1662)

$3792.99

$

Usually ships in 3-6 days

0

11:3

Toro 99-5845

LEVER WA-SPEED CONTROL

$

$

Not available

11:4

Toro 86-4270

LOCK SPACER

$

$

Not available

11:5

Toro 3274-59

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

11:6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 26-6701

SPRING-RETURN, BRAKE

$25.99

$

Usually ships in 3-6 days

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 93-3868

GUIDE-BELT, TRANSMISSION

$

$

Not available

18

Toro 93-3883

V-BELT, HYDRO

$55.99

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

21

Toro 93-3863-03

BRKT-SPEED CONTROL

$

$

Not available

22

Toro 65-5080

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

23

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 92-8857

LEVER - BYPASS

$

$

Not available

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 80-6090

KEY-PUMP

$9.99

$

Usually ships in 3-6 days

0

29

Toro 94-1945

ASM - BREATHER HOSE

$43.99

$

Usually ships in 3-6 days

0

32

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
