71197 (17-44 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

Lawn Tractor

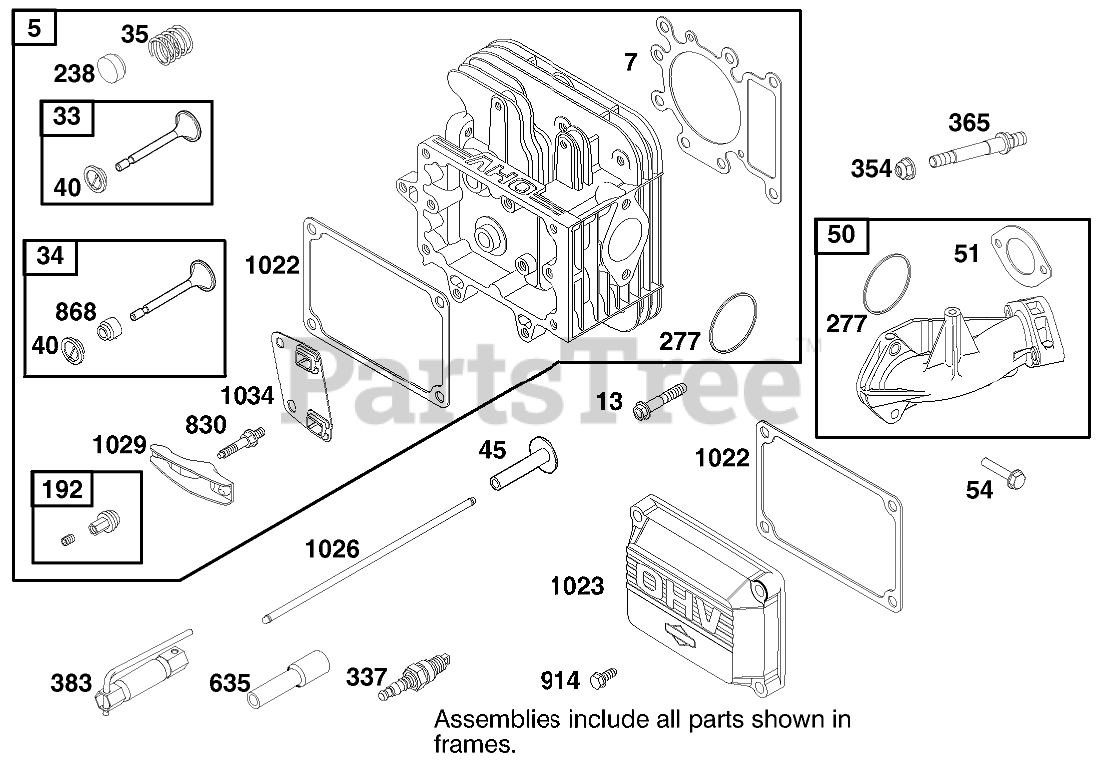

ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

  • Title

5

Briggs & Stratton 690188

Cylinder Head
(Superseded to 796026)

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692410

Gasket-Cylinder Head
(Superseded to 796584)

Note: Included in Carburetor Kit-Ref. 121.

$19.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692410

Gasket-Cylinder Head
(Superseded to 796584)

Note: Included in Gasket Set-Ref. 358.

$19.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

Screw
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 495856

Valve-Exhaust
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 495857

Valve-Intake
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262811

Spring-Valve
(Superseded to 691279)

$5.99

$

In Stock, Qty 10

0

40

Briggs & Stratton 224641

Retainer-Valve
(Superseded to 499586)

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 262411

Tappet-Valve
(Superseded to 690564)

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 690193

Manifold-Intake
(Superseded to 592842)

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Kits

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: ,

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: , and

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 95160

Screw-Hex.
(Superseded to 691148)

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 492160

Adjuster-Valve
(Superseded to 691986)

$11.99

$

In Stock, Qty 18

0

238

Briggs & Stratton 262836

Cap-Valve
(Superseded to 691843)

$8.49

$

In Stock, Qty 20+

0

277

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121.

$5.49

$

In Stock, Qty 16

0

277

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 16

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

354

Briggs & Stratton 94010

Nut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

365

Briggs & Stratton 690227

Stud

$7.99

$

In Stock, Qty 6

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

635

Briggs & Stratton 280872

Boot-Spark Plug
(Superseded to 691909)

$4.99

$

In Stock, Qty 5

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

830

Briggs & Stratton 94555

Stud-Rocker Arm
(Superseded to 691095)

$7.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Carburetor Kit-Ref. 121.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 94682

Screw-Hex.
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Carburetor Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 690388

Cover-Rocker
(Superseded to 797421)

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 494432

Guide-Push Rod
(Superseded to 692003)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 224554

Arm-Rocker
(Superseded to 691751)

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 495248

Guide-Push Rod
(Superseded to 690822)

$9.49

$

In Stock, only 3 left!

0
