71196 (16-44 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

Lawn Tractor

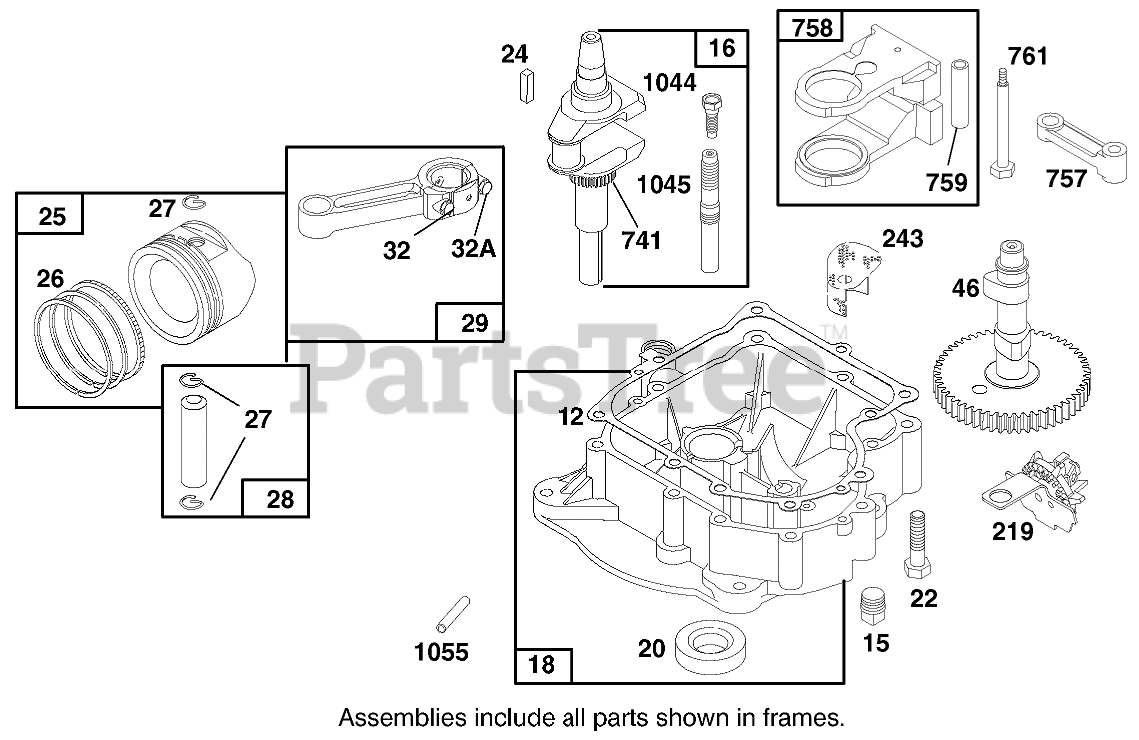

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

  • Title

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Part No. 495993.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No. 495993.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495162

Crankshaft
(Superseded to 693944)

$246.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496742

Base-Engine

$200.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 495993.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94624

Screw-Sem
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Toro 494860

Piston Assembly (Standard)

$

$

Currently unavailable

Toro 495977

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Briggs & Stratton 495978

Piston Assy. (.020" O.S.)
(Superseded to 499292)

$

$

Not available

Toro 495979

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Briggs & Stratton 495854

Ring Set (Std.)

$79.99

$

In Stock, Qty 5

0

Briggs & Stratton 495852

Ring Set (.010" O.S.)

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 495851

Ring Set (.020" O.S.)

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 495855

Rind Set (.030" O.S.)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 494504

Rod-Connecting
(Superseded to 494504S)

$112.99

$

In Stock, Qty 5

0

Briggs & Stratton 495490

Rod-Conn. (.020" U.S.)

$

$

Not available

32

Briggs & Stratton 94695

Screw-Conn. Rod (1 7/8" Long)
(Superseded to 791118)

$4.99

$

In Stock, only 4 left!

0

32A

Briggs & Stratton 94648

Screw-Conn. Rod (1 5/8" Long)
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 496885

Gear-Cam
(Superseded to 597221)

$139.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

243

Briggs & Stratton 225076

Arm, Idler
(Superseded to 691216)

$10.99

$

Usually ships in 2-12 days

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 262932

Gear-Elming
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

Link-Counteweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 399891

Counterweight
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

761

Briggs & Stratton 94593

Screw-HH
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1045

Briggs & Stratton 231828

Crankshaft Extension
(Superseded to 691779)

$47.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

1055

Briggs & Stratton 231931

Tube-Oil Pump
(Superseded to 690528)

$8.49

$

Usually ships in 2-12 days

0
