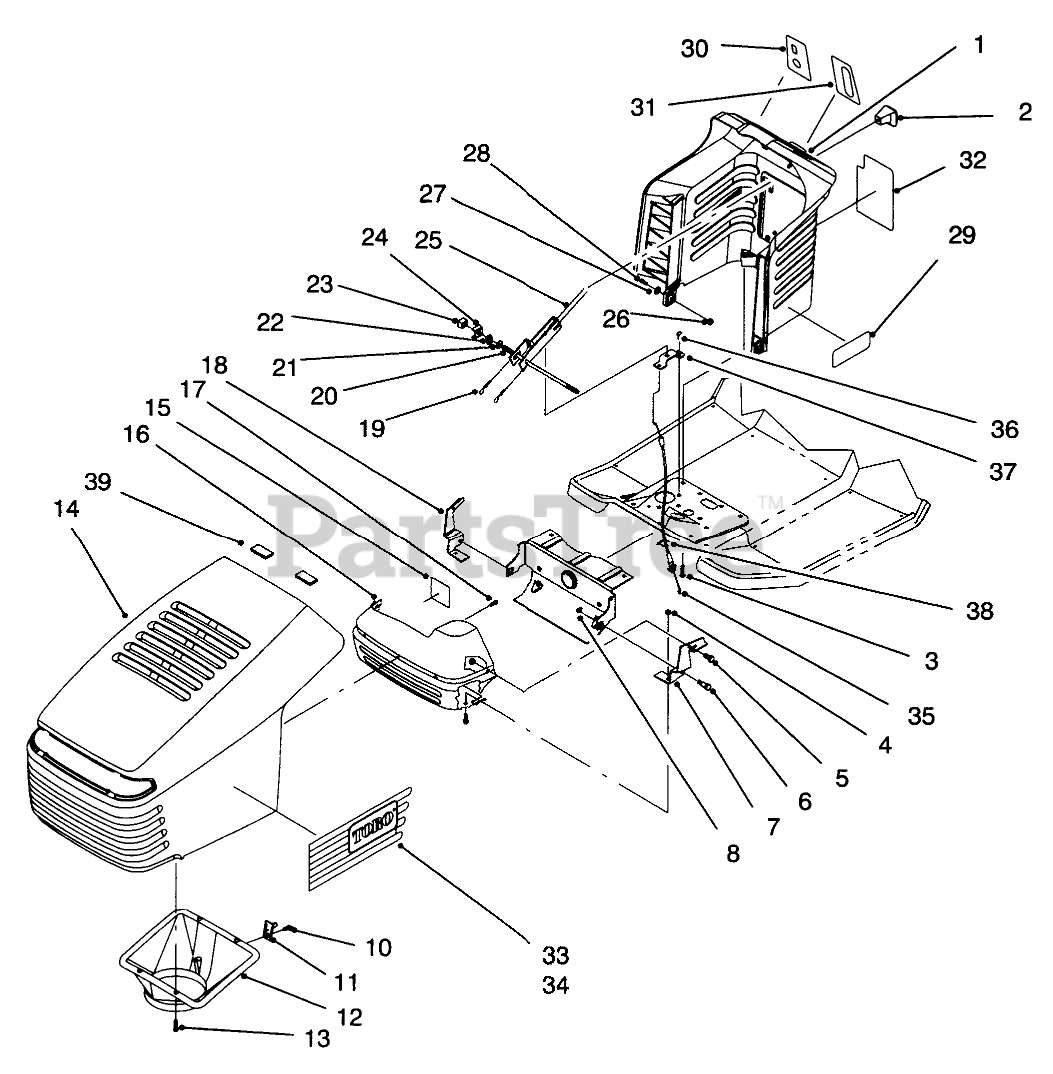

71196 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) HOOD ASSEMBLY Parts Diagram

Lawn Tractor

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 93-0303

Tower-Steering
(Superseded to 99-1947)

$479.99

$

Usually ships in 3-6 days

0

2

Toro 94-5565

KNOB-SHIFT

$14.99

$

In Stock, only 1 left!

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

7

Toro 88-6050

Bracket-Hinge L.H.
(Superseded to 88-6050-03)

$

$

Not available

8

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

11

Toro 94-1984

LATCH-PIN

$6.49

$

Usually ships in 3-6 days

0

12

Toro 93-3891

DUCT-AIR, HOOD

$46.99

$

Usually ships in 3-6 days

0

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 92-8650

HOOD ASM

$

$

Not available

15

Toro 92-5782

TAPE-FOIL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 93-3864

Shield-Heat
(Superseded to 93-3864-03)

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 88-6040

Bracket-Hinge R.H.
(Superseded to 88-6040-03)

$11.99

$

In Stock, only 1 left!

0

19

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

20

Toro 88-4170

ROD-TOWER PIVOT

$26.99

$

Usually ships in 3-6 days

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

23

Toro 88-4140

NUT-WEDGE

$

$

Not available

24

Toro 88-4160

ROD-CLAMP PIVOT

$3.49

$

Usually ships in 3-6 days

0

25

Toro 88-5190

Lever-Deck Engage
(Superseded to 88-5190-03)

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 94-3528

DECAL-TOWER 1644 HXL

$

$

Not available

30

Toro 92-2460

DECAL-IGNITION/LIGHTS

$21.99

$

Usually ships in 3-6 days

0

31

Toro 92-2461

DECAL

$11.99

$

In Stock, only 1 left!

0

32

Toro 92-2462

DECAL-DECK, ENGAGE

$

$

Not available

33

Toro 92-2468

DECAL - HOOD LEFT

$29.99

$

Usually ships in 3-6 days

0

34

Toro 92-2467

DECAL - HOOD RIGHT

$29.99

$

Usually ships in 3-6 days

0

35

Toro 94-4292

Cable-Deck Engage
(Superseded to 99-6838)

$103.99

$

Usually ships in 3-6 days

0

36

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

37

Toro 93-3849

BRACKET-CABLE, UPPER

$16.99

$

Usually ships in 3-6 days

0

38

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

39

Toro 94-1980

FOAM-HOOD

$3.49

$

Usually ships in 3-6 days

0
