71196 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

Lawn Tractor

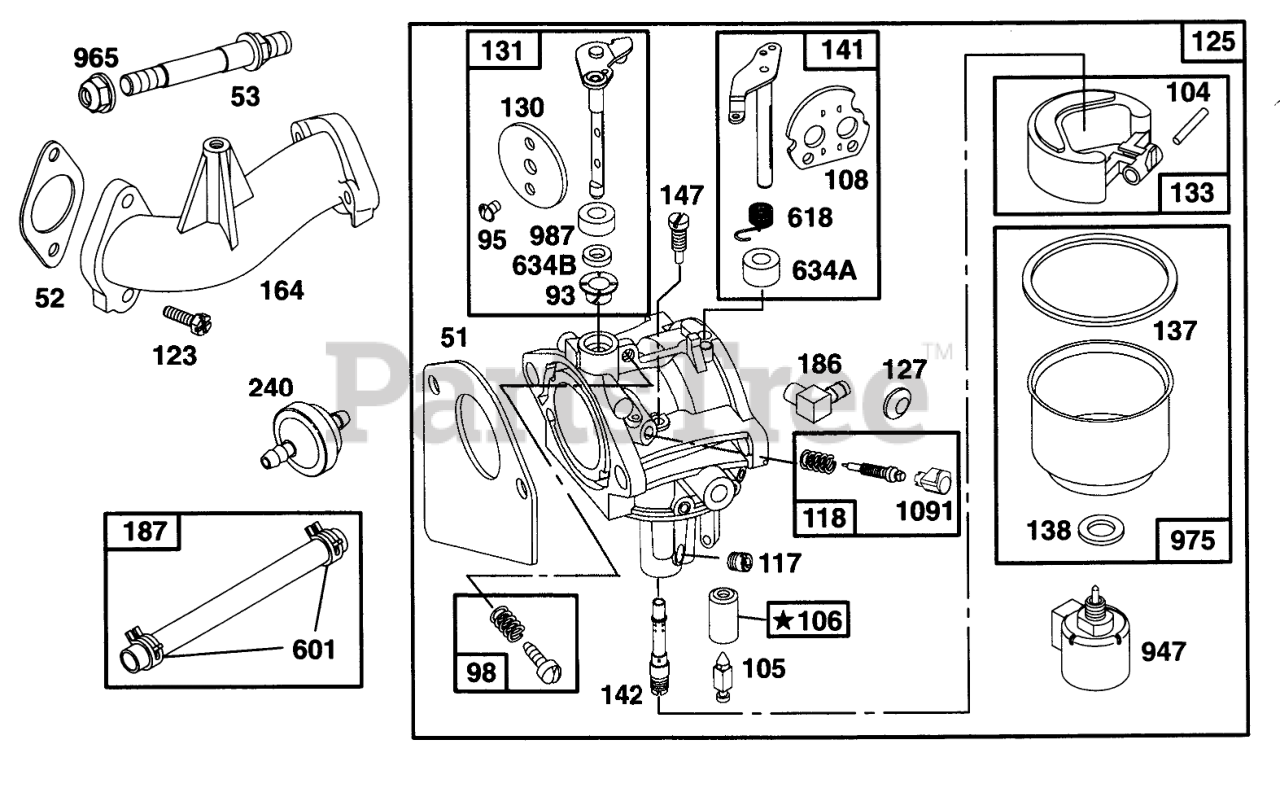

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

  • Title

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Kit-Part No. 498116.

$4.99

$

In Stock, only 2 left!

0

52

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Valve Overhaul Kit-Part No. 495992.

$4.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Gasket Set-Part No. 495993.

$4.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No. 498116.

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No. 498116.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Part No. 498116.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Part No. 498116.

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$7.99

$

In Stock, only 3 left!

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231858

Jet-Main
(Superseded to 697228)

Note: Included in Carburetor Kit-Part No. 498116.

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 495932

Valve-Needle

$12.99

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498061

Carburetor
(Superseded to 799727)

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No. 498116.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No. 498116.

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 231990

Nozzle Carburetor

Note: Included in Carburetor Kit-Part No. 498116.

$29.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231985

Jet-Pilot

Note: Included in Carburetor Kit-Part No. 498116.

$7.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 214047

Manifold-Intake
(Superseded to 592842)

$43.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 493496

Connector-Fuel
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke

$8.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Kit-Part No. 498116.

$6.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

Note: Included in Carburetor Kit-Part No. 498116.

$3.99

$

In Stock, only 3 left!

0

947

Briggs & Stratton 497672

Solenoid
(Superseded to 692734)

$102.99

$

In Stock, Qty 7

0

965

Briggs & Stratton 94010

Nut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No. 498116.

$5.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281364

Cap-Limiter
(Superseded to 691333)

$9.49

$

In Stock, only 1 left!

0

495136

NOTE:Rod-Push (Exhaust)

$

$

Not available
