71196 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

Lawn Tractor

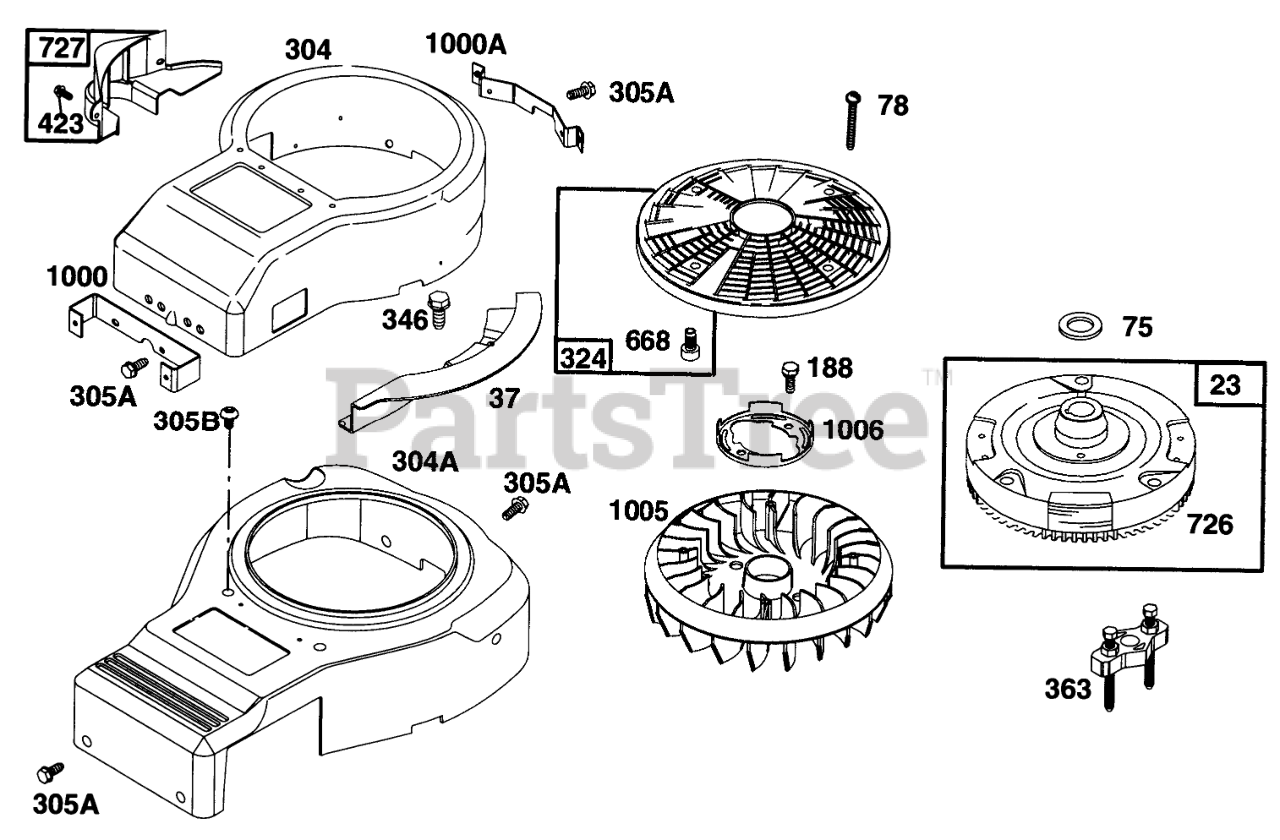

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

  • Title
23

Briggs & Stratton 492326

Flywheel
(Superseded to 693557)

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 225136

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 94821

Screw-Sem
(Superseded to 691674)

$2.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 225175

Housing-Blower (Inner)

$83.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 225017

Housing-Blower
(Superseded to 690497)

$199.99

$

In Stock, only 1 left!

0

305A

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

305B

Briggs & Stratton 94822

Screw-Sem
(Superseded to 690365)

$2.99

$

In Stock, only 1 left!

0

324

Briggs & Stratton 494439

Screen-Rotating

$53.99

$

In Stock, Qty 10

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 94073

Screw-Sem
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

668

Briggs & Stratton 805402

Spacer
(Superseded to 691500)

$7.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mtg. Hardware)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

1000

Briggs & Stratton 224968

Bracket-Front
(Superseded to 690493)

$22.99

$

Usually ships in 2-12 days

0

1000A

Briggs & Stratton 224969

Bracket-Rear
(Superseded to 690494)

$20.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 281400

Fan-Flywheel
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

495136

NOTE:Rod-Push (Exhaust)

$

$

Not available
