71196 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

Lawn Tractor

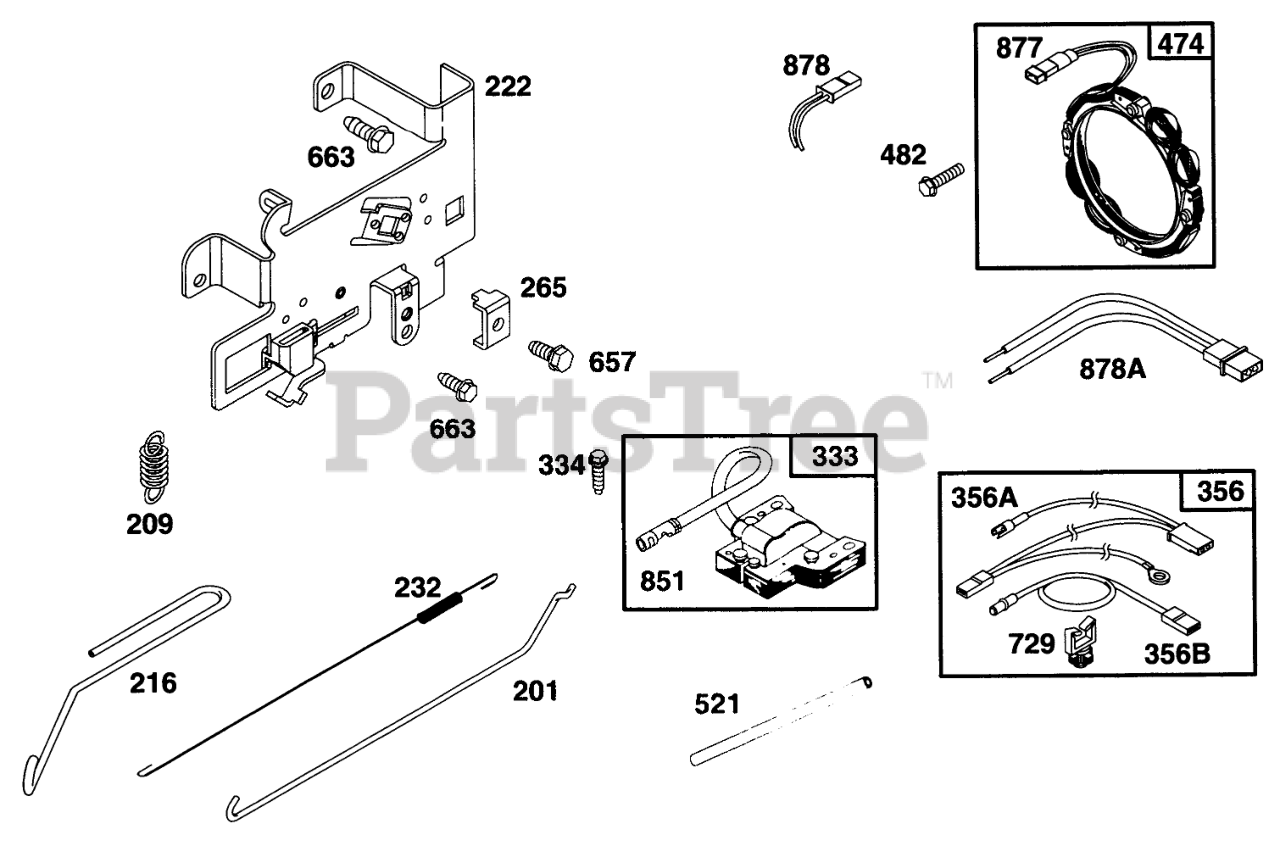

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

  • Title
201

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 495611

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 6

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 495859

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497708

Wire Stop
(Superseded to 692037)

$35.99

$

In Stock, only 1 left!

0

356A

Toro 497671

Wire Stop

$

$

Currently unavailable

356B

Briggs & Stratton 494705

Wire Stop
(Superseded to 690807)

$

$

Not available

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

521

Briggs & Stratton 272699

Shield-Cable
(Superseded to 690581)

$12.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

729

Briggs & Stratton 281390

Clip-Wire
(Superseded to 691335)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 224110

Cable Terminal
(Superseded to 692424)

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 399916

Connector-Wire, Alternator

$12.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0

495136

NOTE:Rod-Push (Exhaust)

$

$

Not available
