71193 (14-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28N707-0131-01 Parts Diagram

Lawn Tractor

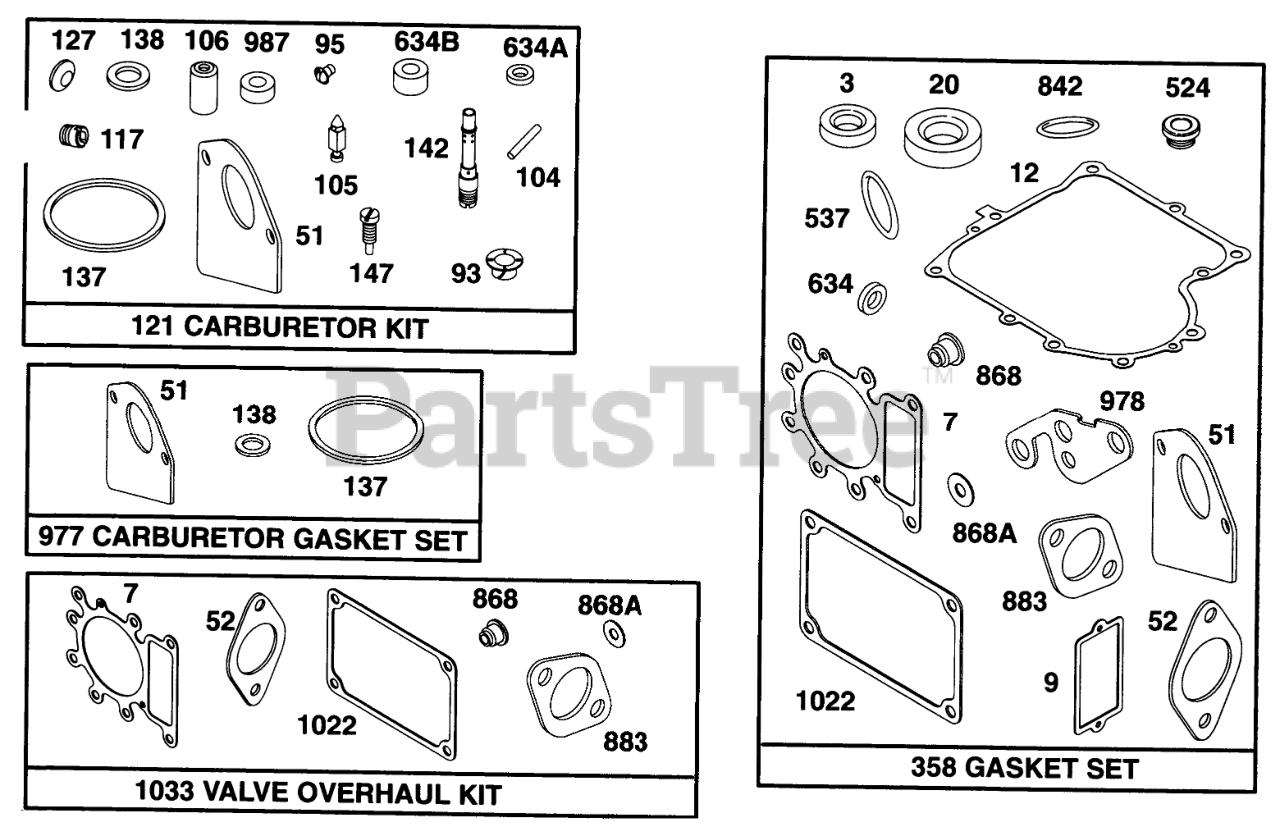

ENGINE BRIGGS & STRATTON MODEL 28N707-0131-01 Parts Diagram

  • Title
3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No 495993.

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272614

Head
(Superseded to 273280S)

Note: Included in Valve Overhaul Kit-Part No 495992.

$10.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272614

Head
(Superseded to 273280S)

Note: Included in Gasket Set-Part No 495993.

$10.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No 495993.

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Part No 495993.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No 495993.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No 495993.

$6.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Part No 495993.

$6.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No 494385.

$4.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Kit-Part No 498116.

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Valve Overhaul Kit-Part No 495992.

$4.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 272569

Gasket-Intake
(Superseded to 272569S)

Note: Included in Gasket Set-Part No 495993.

$4.99

$

In Stock, only 1 left!

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Part No 498116.

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No 498116.

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No 498116.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Part No 498116.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Part No 498116.

$7.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231858

Jet-Main
(Superseded to 697228)

Note: Included in Carburetor Kit-Part No 498116.

$17.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 231850

Jet-Main (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498116

Carburetor Kit

$65.99

$

Usually ships in 2-12 days

0

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No 498116.

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No 494385.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No 498116.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No 498116.

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No 494385.

$5.49

$

In Stock, Qty 20+

0

142

Briggs & Stratton 231990

Nozzle Carburetor

Note: Included in Carburetor Kit-Part No 498116.

$29.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231985

Jet-Pilot

Note: Included in Carburetor Kit-Part No 498116.

$7.99

$

Usually ships in 2-12 days

0

358

$86.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Part No 495993.

$8.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Part No 495993.

$4.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No 495993.

$7.99

$

In Stock, Qty 8

0

634A

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

Note: Included in Carburetor Kit-Part No 498116.

$3.99

$

In Stock, only 3 left!

0

634B

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Kit-Part No 498116.

$6.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No 495993.

$4.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 494435

Seal-Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Part No 495992.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 494435

Seal-Valve
(Superseded to 690968)

Note: Included in Gasket Set-Part No 495993.

$10.99

$

In Stock, Qty 20+

0

868A

Briggs & Stratton 272610

Seal Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Part No 495992.

$10.99

$

In Stock, Qty 20+

0

868A

Briggs & Stratton 272610

Seal Valve
(Superseded to 690968)

Note: Included in Gasket Set-Part No 495993.

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

Note: Included in Gasket Set-Part No 495993.

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

978

Briggs & Stratton 272888

Gasket-Adapter
(Superseded to 691317)

Note: Included in Gasket Set-Part No 495993.

$4.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No 498116.

$5.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Valve Overhaul Kit-Part No 495992.

$6.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Gasket Set-Part No 495993.

$6.49

$

In Stock, Qty 20+

0

1033

Briggs & Stratton 495992

Kit-Valve Overhaul

$64.99

$

In Stock, only 2 left!

0
