71193 (14-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) 38" DECK COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

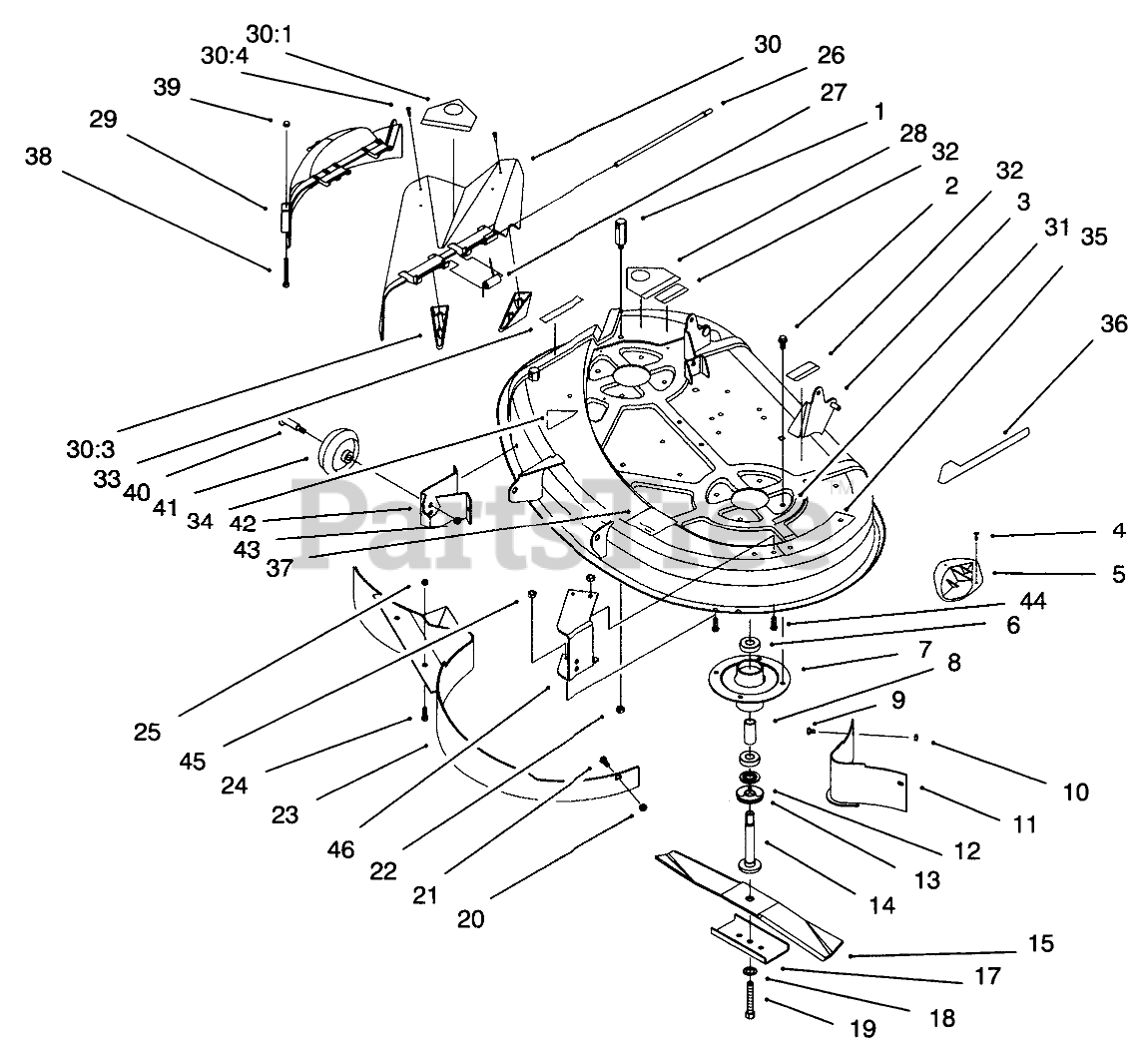

38" DECK COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 94-1949-01

Deck Wa-38"

$

$

Currently unavailable

4

Toro 32144-111

Screw-PPH #8 X .62 (Only On: 71193)

$0.99

$

In Stock, Qty 20+

0

5

Toro 76-2160

Plate-Kicker (Only On: 71193)

$15.99

$

In Stock, Qty 5

0

6

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

7

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 7

0

8

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

9

Toro 321-4

Screw-HH (Only On: 71193)

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

Nut-Lock (Only On: 71193)

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

Wa-Baffle (Only On: 71193)

$59.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

13

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

14

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

15

Toro 57-4700

Blade-19.32" (Only On: 71217)
(Superseded to 57-4700-03)

$37.99

$

In Stock, only 2 left!

0

15

Toro 79-3061

Blade-19.32 Recycler (Only On: 71193)
(Superseded to 14-7799)

$62.99

$

In Stock, only 3 left!

0

17

Toro 80-0510-03

Stiffener-Blade (Only On: 71193)

$17.99

$

In Stock, Qty 7

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

Nut-Lock (Only On: 71193)

$2.49

$

In Stock, Qty 20+

0

21

Toro 3230-1

Screw-CARR (Only On 71193)

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600-03

Wa-Baffle (Only On: 71193)

$94.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

Screw-HH (Only On: 71193)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 3296-39

Nut-Lock (Only On: 71193)

$2.99

$

In Stock, Qty 20+

0

26

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

27

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

28

Toro 93-1122

Decal-Danger (Only On: 71193)

$8.99

$

In Stock, Qty 12

0

28

Toro 93-7010

Decal-Danger (Only On: 71217)

$11.99

$

Usually ships in 3-6 days

0

29

Toro 88-4430

Recycler Cover ASM (Only On: 71193)

$

$

Not available

30

Toro 93-0317

ASM-Deflector (Only On: 71193) (Incl. Ref. #30:1)

$71.99

$

In Stock, only 1 left!

0

30

Toro 93-7695

ASM.-38" Deflector (Only On: 71217) (Incl. Ref. #30:1 & 30:3-30:4)

$82.99

$

In Stock, only 2 left!

0

30:1

Toro 93-1122

Decal Danger (Only On: 71193)

$8.99

$

In Stock, Qty 12

0

30:1

Toro 93-7010

Decal Danger (Only On: 71217)

$11.99

$

Usually ships in 3-6 days

0

30:3

Toro 93-7679

Kicker-CE (Only On: 71217)

$

$

Currently unavailable

30:4

Toro 93-0231

Screw-Phillips Pan Head (Only On: 71217)

$0.99

$

In Stock, Qty 20+

0

31

Toro 68-3660

Decal-Shield Danger (Only On: 71193)

$10.99

$

In Stock, only 1 left!

0

31

Toro 93-6677

Decal-Shield Danger (Only On: 71217)

$

$

Not available

32

Toro 55-4300

Decal-Warning (Only On: 71193)

$13.99

$

Usually ships in 3-6 days

0

32

Toro 93-6674

Decal-Warninig (Only On: 71217)

$6.49

$

Usually ships in 3-6 days

0

33

Toro 68-3650

Decal-Danger (Only On: 71193)

$13.99

$

Usually ships in 3-6 days

0

33

Toro 93-7009

Decal-Deflector Danger (Only On: 71217)

$6.49

$

In Stock, only 1 left!

0

35

Toro 79-3140

Decal-Danger (Only On: 71193)

$15.99

$

Usually ships in 3-6 days

0

36

Toro 92-9520

Decal-Deck (Only On: 71193)

$38.99

$

Usually ships in 3-6 days

0

37

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$6.49

$

Usually ships in 3-6 days

0

38

Toro 321-15

Screw-HH (Only On: 71193)

$1.49

$

In Stock, Qty 7

0

39

Toro 32111-7

Nut-Cap (Only On: 71193)

$7.99

$

In Stock, only 2 left!

0

40

Toro 56-6591

Wheel Bolt (Only On: 71217)

$9.49

$

In Stock, only 3 left!

0

41

Toro 701756

Wheel-Deck (Only On: 71217)

$7.99

$

In Stock, Qty 14

0

42

Toro 88-5740-03

Bracket-Deck Wheel RH (Only On: 71217)

$39.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

Nut-Lock (Only On: 71217)

$2.99

$

In Stock, Qty 20+

0

44

Toro 322-3

Screw-HH (Only On: 71217)

$0.99

$

In Stock, Qty 20+

0

45

Toro 3296-29

Nut-Lock (Only On: 71217)

$2.49

$

In Stock, Qty 20+

0

46

Toro 93-3896-03

Bracket-Deck Wheel LH (Only On: 71217)

$58.99

$

Usually ships in 3-6 days

0
