71192 (15-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

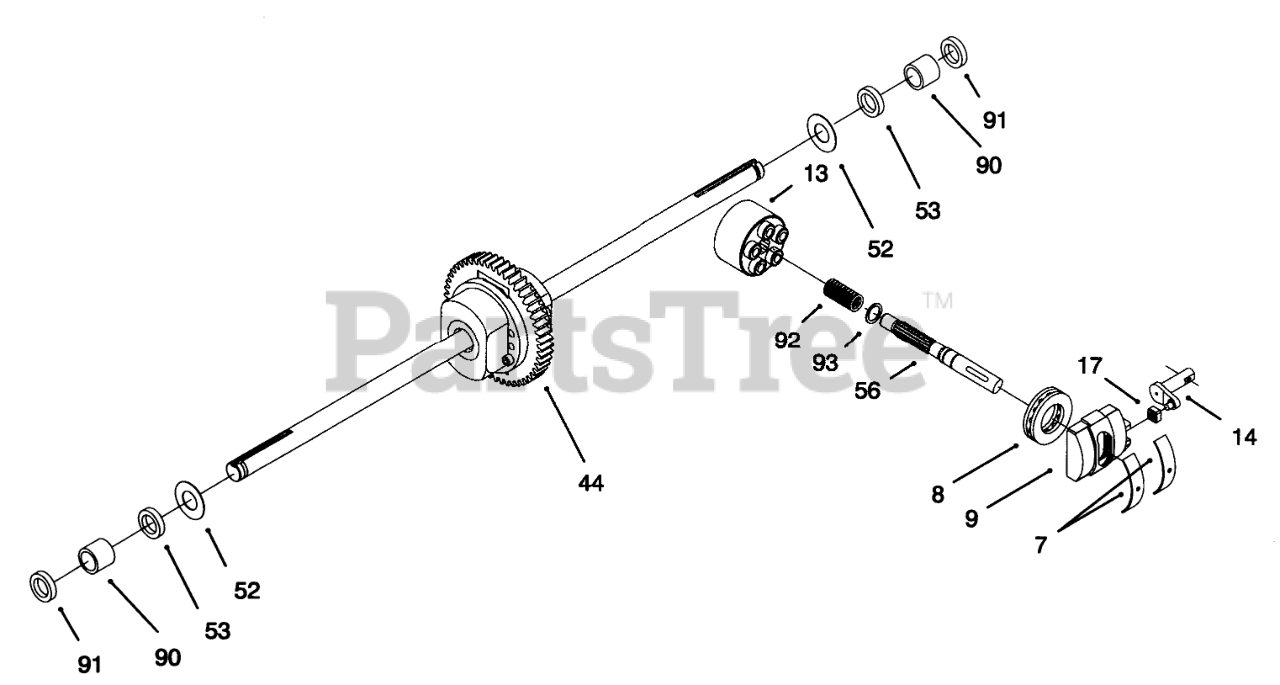

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

7

Toro 94-1905

BEARING-CRADLE

$

$

Not available

8

Toro 94-1906

BEARING - THRUST
(Superseded to 94-6922)

$61.99

$

In Stock, only 3 left!

0

9

Toro 94-1907

SWASHPLATE-VARIABLE

$502.99

$

Usually ships in 3-6 days

0

13

Toro 94-1908

BLOCK - CYCLINDER ASM
(Superseded to 103-2666)

$488.99

$

Usually ships in 3-6 days

0

14

Toro 94-1909

ARM-TRUNION

$

$

Not available

17

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

24

Toro 92-6545

SEAL-LIP

$16.99

$

Usually ships in 3-6 days

0

44

Toro 94-1921

ASM - DIFFERENTIAL

$

$

Not available

52

Toro 94-1922

WASHER

$

$

Not available

53

Toro 94-1924

SEAL
(Superseded to 121-0970)

$

$

Not available

56

Toro 94-1925

SHAFT - INPUT

$

$

Not available

90

Toro 94-1934

SLEEVE - BEARING

$17.99

$

Usually ships in 3-6 days

0

91

Toro 94-1935

SEAL - WIPER

$

$

Not available

92

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

93

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

15

Toro 92-6544

SEAL-LIP

$15.99

$

Usually ships in 3-6 days

0
