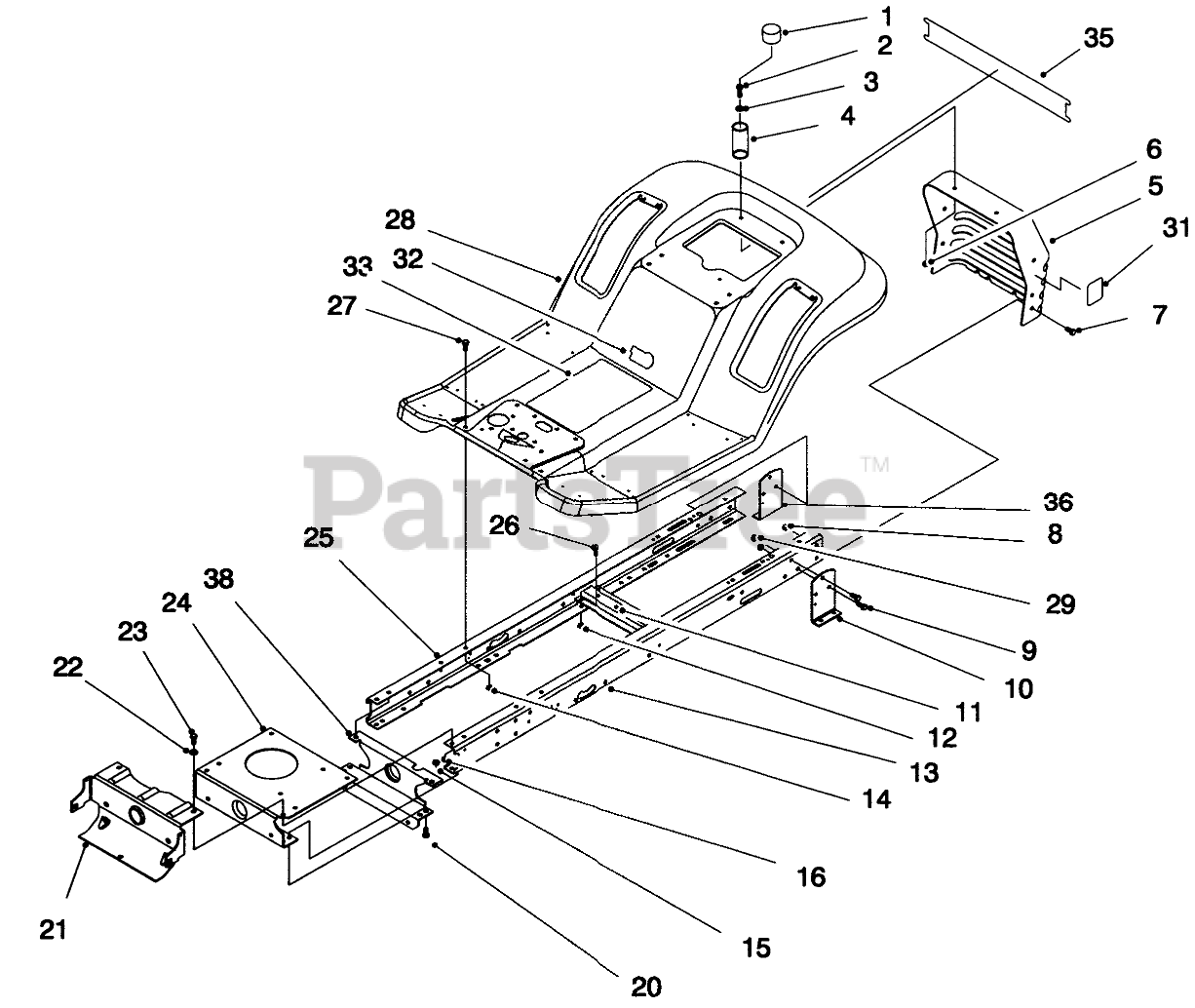

71192 (15-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$33.99

$

Usually ships in 3-6 days

0

5

Toro 88-3940

Panel-Rear Hitch
(Superseded to 99-2957-03)

$183.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 93-3857

Bracket-Trans. Mtg. L.H.
(Superseded to 93-3857-03)

$

$

Not available

11

Toro 88-4620

Bracket-Idle Pivot
(Superseded to 88-4620-03)

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 88-4660

Frame-Rail L.H.
(Superseded to 99-2958-03)

$120.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 93-3834

Support-Front Axle
(Superseded to 98-3576-03)

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 88-4630

Plate-Engine Mount
(Superseded to 88-4630-03)

$

$

Not available

25

Toro 88-4650

Frame-Rail R.H.
(Superseded to 99-2959-03)

$120.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 88-3840

Body-Rear
(Superseded to 88-3840-01)

$768.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 93-6678

DECAL - DUMP VALVE

$

$

Not available

32

Toro 117242

Decal-Made In USA
(Superseded to 76-1340)

$16.99

$

In Stock, only 1 left!

0

33

Toro 92-2486

Decal-Instruction Hydro
(Superseded to 94-1238)

$

$

Not available

33

Toro 93-6676

DECAL-INSTRUCTION

$38.99

$

Usually ships in 3-6 days

0

35

Toro 93-3774

DECAL - REAR BODY

$

$

Not available

36

Toro 93-3856

Bracket-Trans. Mtg. R.H.
(Superseded to 93-3856-03)

$

$

Not available

38

Toro 93-3831

Support-Rear
(Superseded to 93-3831-03)

$

$

Not available
