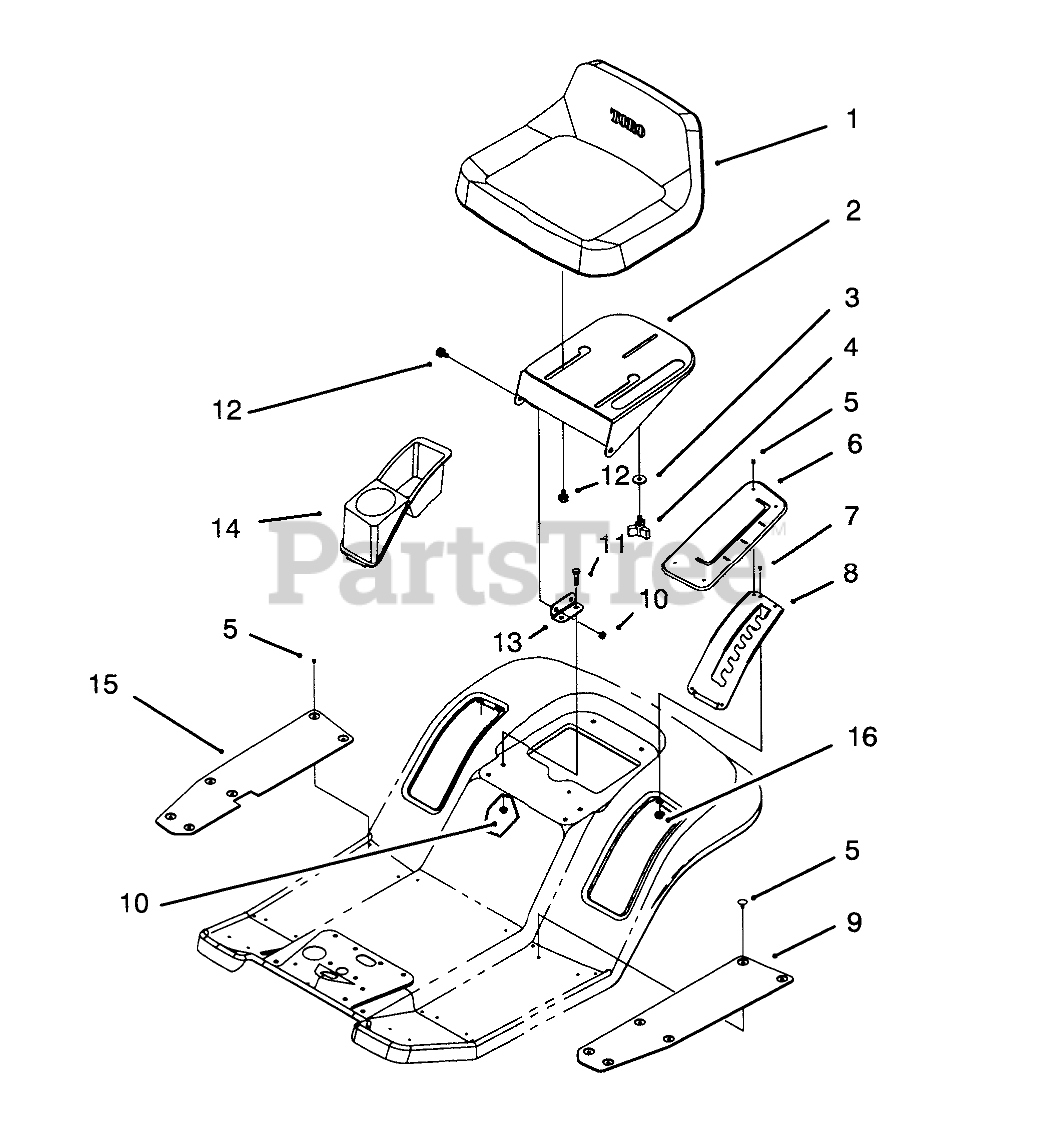

71191 (13-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) SEAT ASSEMBLY Parts Diagram

Lawn Tractor

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3950

SEAT
(Superseded to 88-4330)

$

$

Not available

2

Toro 88-4910

Support-Seat
(Superseded to 88-4910-03)

$100.99

$

Usually ships in 3-6 days

0

3

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

4

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

5

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

6

Toro 88-5170

COVER-HOC

$35.99

$

Usually ships in 3-6 days

0

Toro 93-7657

COVER-HOC

Note: Not illustrated

$

$

Not available

7

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

8

Toro 88-5030

Gate-H.O.C.
(Superseded to 88-5030-03)

$34.99

$

Usually ships in 3-6 days

0

9

Toro 88-5240

MAT-FOOT, LH

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

13

Toro 88-4820

Bracket-Seat Hinge
(Superseded to 88-4820-03)

$6.99

$

Usually ships in 3-6 days

0

14

Toro 88-4990

TRAY-FENDER

$36.99

$

Usually ships in 3-6 days

0

15

Toro 88-5230

MAT-FOOT, RH

$52.99

$

Usually ships in 3-6 days

0

16

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0
