71191 (13-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28M707-0122-01 Parts Diagram

Lawn Tractor

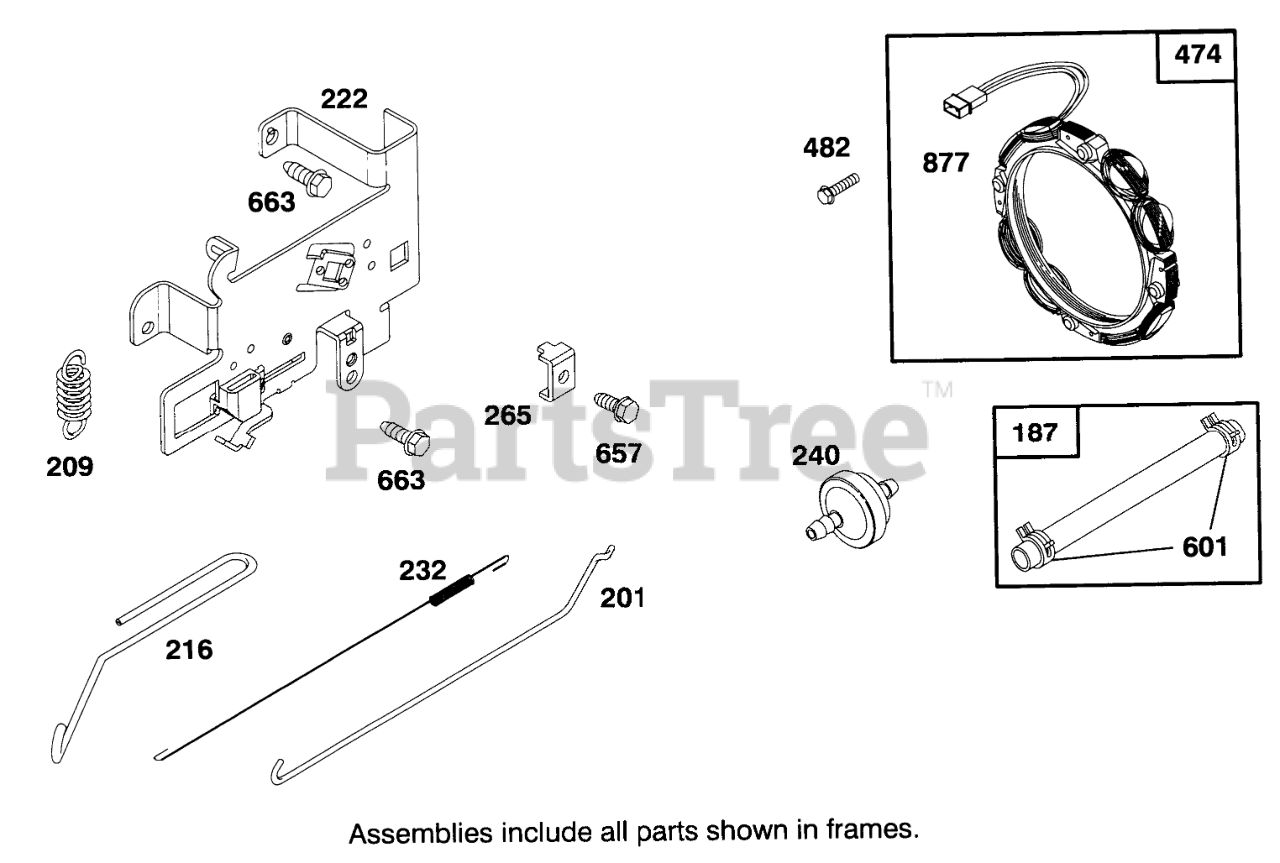

ENGINE BRIGGS & STRATTON MODEL 28M707-0122-01 Parts Diagram

  • Title

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 260871

Spring-Governor
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 495611

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 9

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0
