71189 (12-32 XL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 284707-1148-E1 Parts Diagram

Lawn Tractor

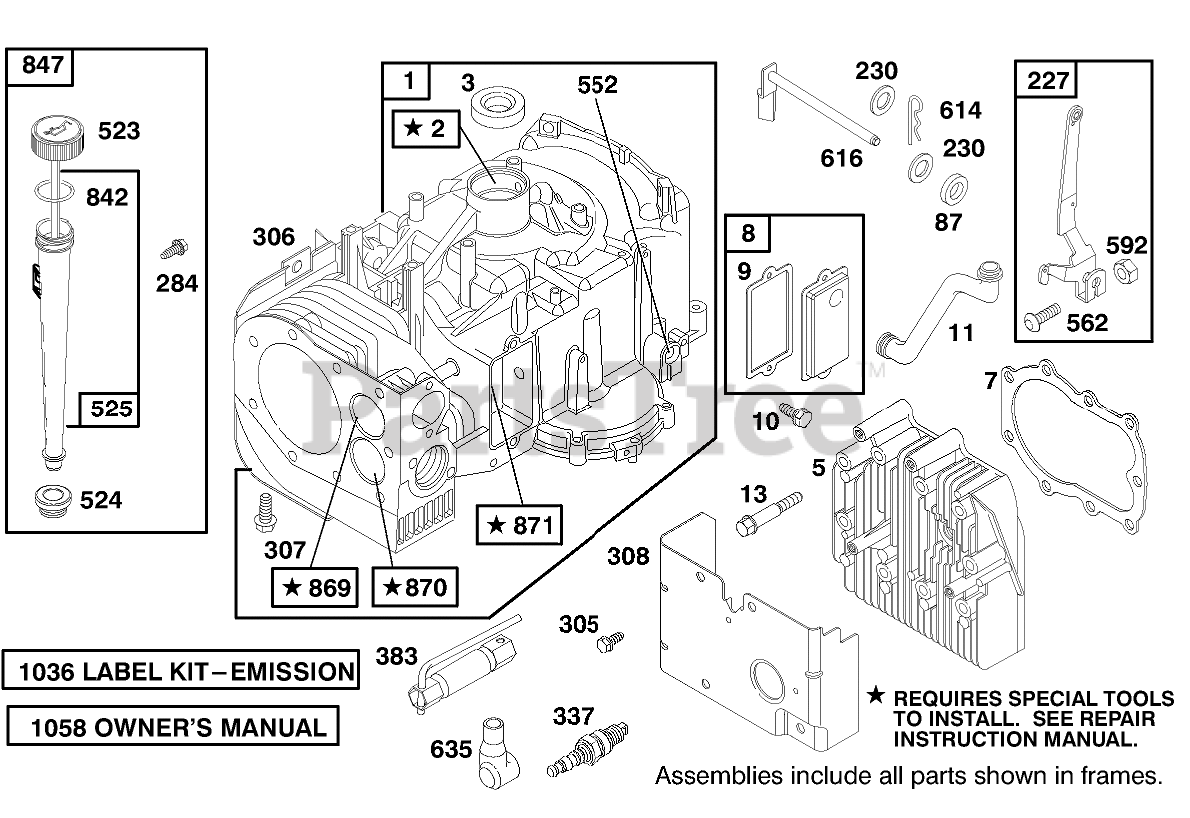

ENGINE BRIGGS & STRATTON MODEL 284707-1148-E1 Parts Diagram

  • Title

1

Briggs & Stratton 496413

Cylinder Assembly

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 494241.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$9.49

$

In Stock, only 3 left!

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 494241.

$9.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 495735

Breather ASM

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280100

Tube-Breather
(Superseded to 692253)

$9.99

$

In Stock, Qty 13

0

13

Briggs & Stratton 94622

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

87

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 494241.

$7.99

$

In Stock, Qty 8

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 94927

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 224545

Shield-Cylinder
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 491490

Cover-Cylinder Head
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 494241.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

Tube-Oil Fill
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

$

$

Not available

562

Briggs & Stratton 94907

Bolt-Carriage
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231978

Nut-Hex
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 10

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496415

Fill Group-Oil
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 262924

Seat-Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499362

Emission Label Kit

$3.99

$

Usually ships in 2-12 days

0

1058

Toro 273681

Manual-Owner's

$

$

Currently unavailable
