71188 (12-32 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

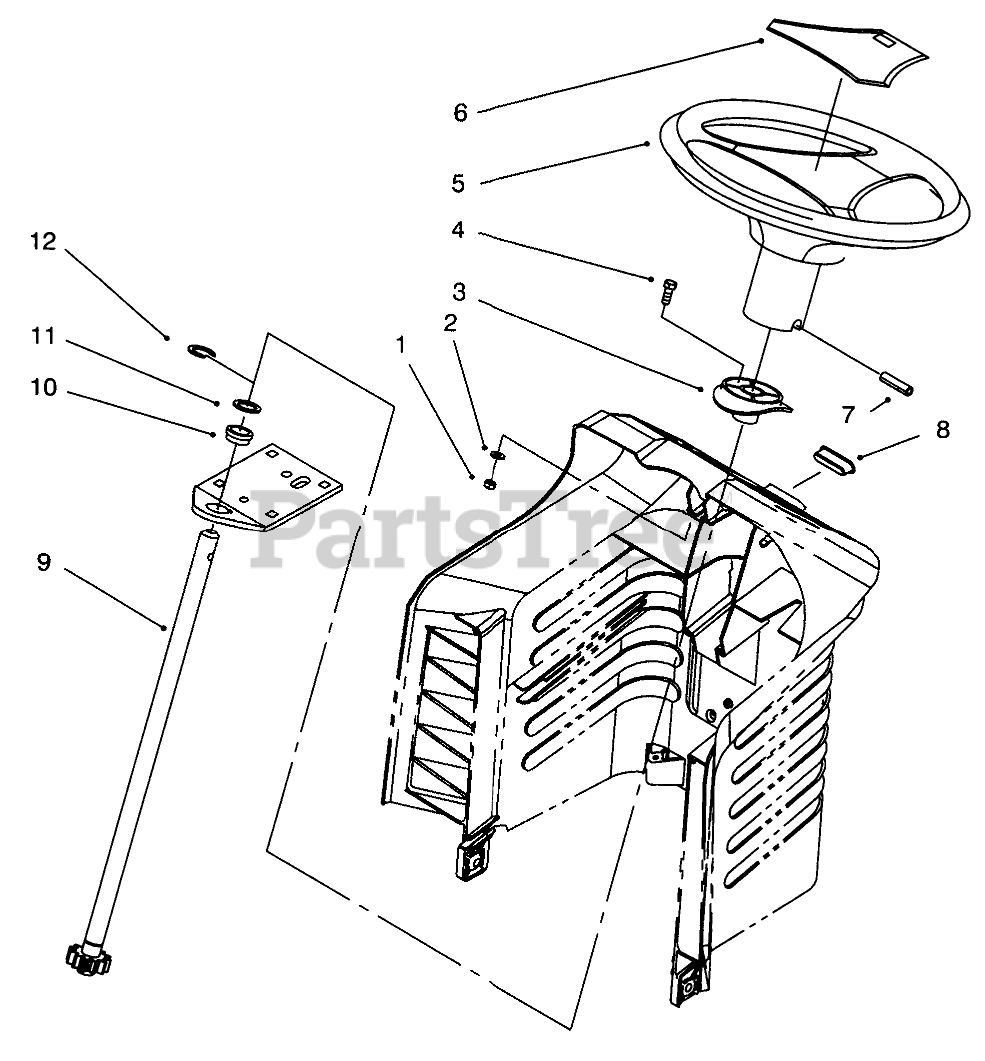

STEERING ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 88-4190

BUSHING-SLIDING

$16.99

$

In Stock, only 1 left!

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 88-3850

Wheel-Steering (Incl. Ref. #6)
(Superseded to 98-1467)

$234.99

$

Usually ships in 3-6 days

0

6

Toro 88-3870

COVER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

7

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

8

$4.99

$

Usually ships in 3-6 days

0

9

Toro 88-6380

SHAFT-STEERING, LONG

$170.99

$

In Stock, only 3 left!

0

10

Toro 88-5150

BEARING-FLANGE

$3.49

$

In Stock, Qty 16

0

11

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

12

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0
