71185 (13-38 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

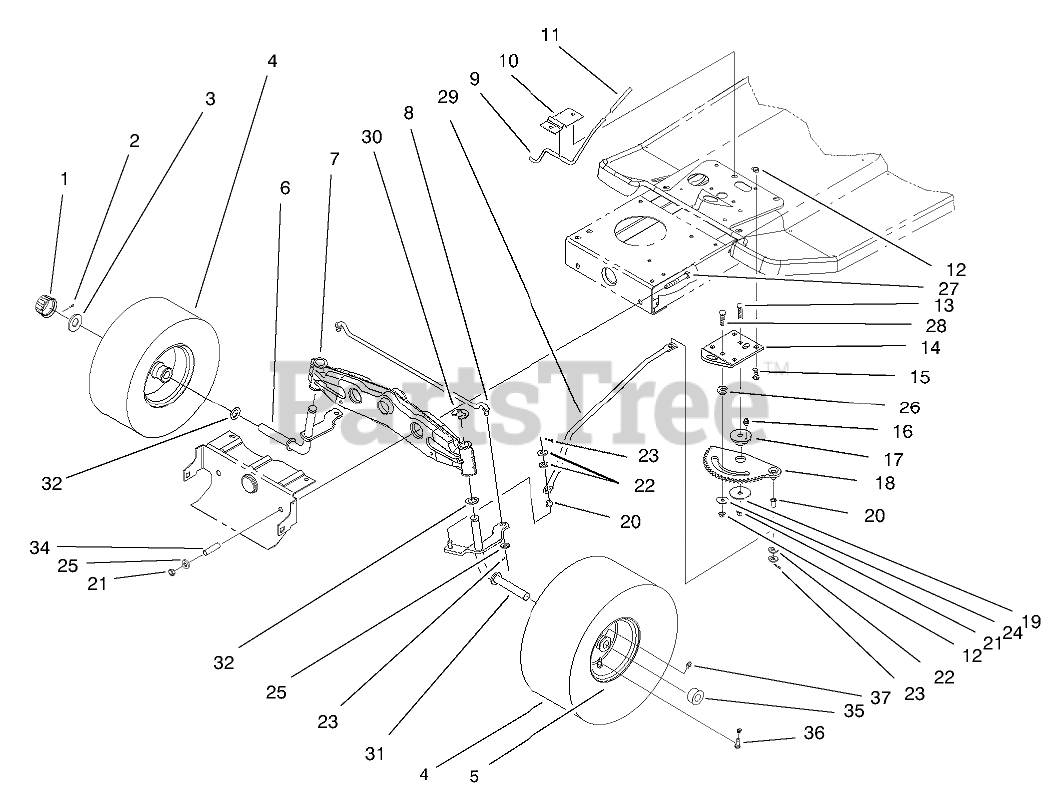

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

2

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

3

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 16

0

4

Toro 88-4060

TIRE 13 X 5.00 X 6

$

$

Not available

5

Toro 88-4360

RIM ASM

$209.99

$

Usually ships in 3-6 days

0

6

Toro 92-7889

Spindle-R.H.
(Superseded to 92-7889-03)

$147.99

$

Usually ships in 3-6 days

0

7

Toro 94-1962

Axle-Front
(Superseded to 94-1962-03)

$

$

Not available

8

Toro 88-5380

TIE ROD-STEERING

$

$

Not available

9

Toro 88-5510

ROD-BRAKE, PARKING

$

$

Not available

10

Toro 88-5520

Bracket-Parking Brake
(Superseded to 88-5520-03)

$10.99

$

Usually ships in 3-6 days

0

11

Toro 88-0890

GRIP-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

14

Toro 88-5130

Bracket-Steering Rack
(Superseded to 88-5130-03)

$55.99

$

In Stock, only 2 left!

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

17

Toro 88-4670

BUSHING-ECCENTRIC

$24.99

$

In Stock, only 2 left!

0

18

Toro 88-5200

RACK-STEERING

$93.99

$

In Stock, only 1 left!

0

19

Toro 111419

WASHER-BEARING

$

$

Not available

20

Toro 52-2891

BUSHING-FLANGED, NYLON

$3.49

$

In Stock, Qty 16

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

24

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 88-5010

SPACER-RACK, STEERING

$3.49

$

In Stock, only 1 left!

0

27

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

28

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 88-4830

LINK-DRAG

$65.99

$

Usually ships in 3-6 days

0

30

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

31

Toro 92-7890

Spindle-L.H.
(Superseded to 92-7890-03)

$199.99

$

Usually ships in 3-6 days

0

32

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

34

Toro 88-5470

SPACER

$15.99

$

Usually ships in 3-6 days

0

35

Toro 88-4400

BEARING-WHEEL
(Superseded to 110513)

$21.99

$

In Stock, Qty 12

0

36

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

37

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

Toro 232-40

Inner Tube
(Superseded to 232-38)

Note: Not illustrated

$155.99

$

Usually ships in 3-6 days

0

Toro 88-4280

Wheel & Tire Assembly (Incl. Ref. #4 & 5)

Note: Not illustrated

$

$

Not available
