71184 (12-38 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

Lawn Tractor

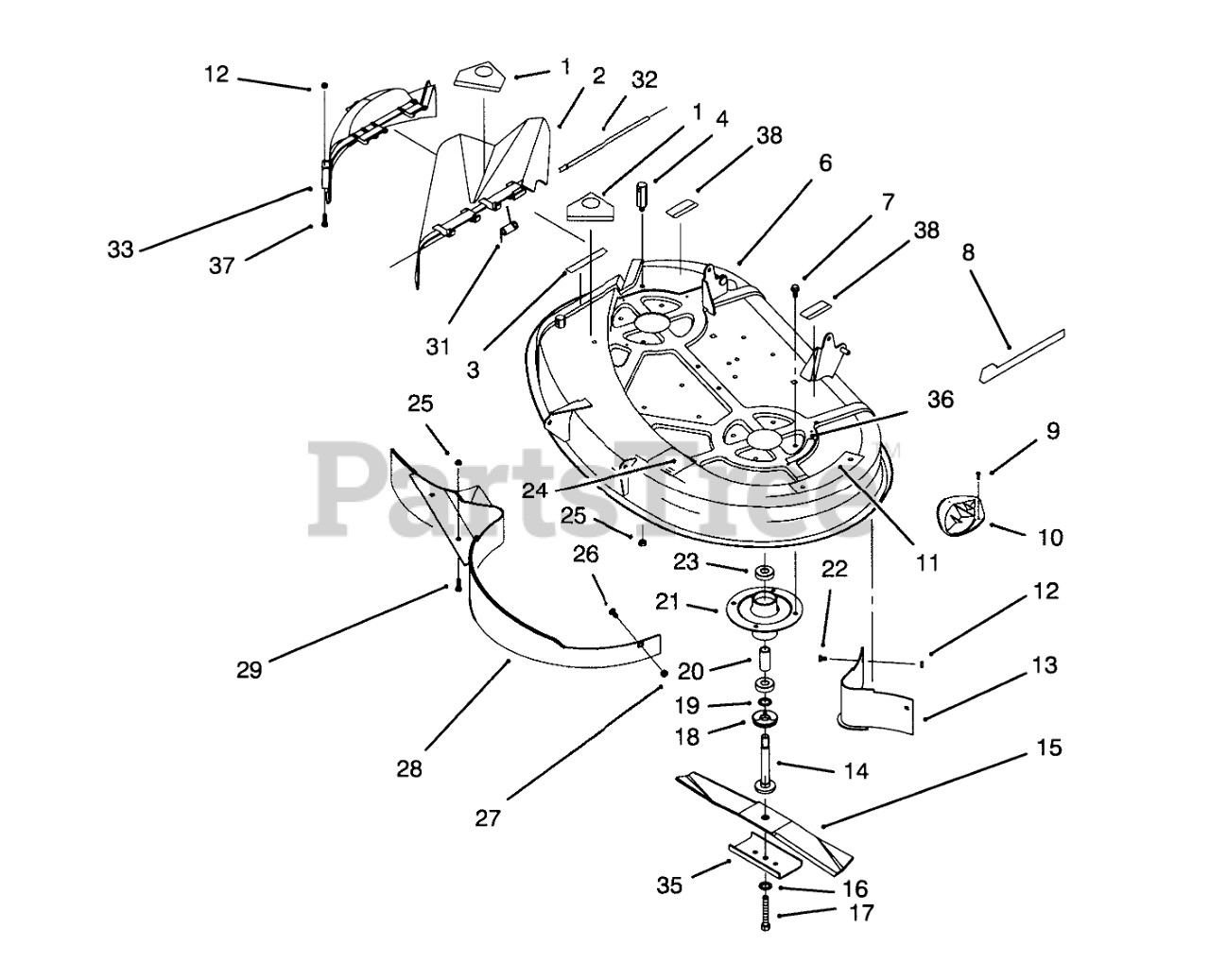

HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) Parts Diagram

  • Title
1

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0

2

Toro 93-0317

Deflector Ass-y (Incl. Ref. #1)

$71.99

$

In Stock, only 1 left!

0

3

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

4

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

6

Toro 88-5780-01

Deck-38"
(Superseded to 16-9469)

$964.99

$

Usually ships in 3-6 days

0

7

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

8

Toro 92-9520

DECAL-RECYCLER DECK 38"

$38.99

$

Usually ships in 3-6 days

0

9

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

10

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

11

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$59.99

$

Usually ships in 3-6 days

0

14

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

15

Toro 79-3061

Blade
(Superseded to 14-7799)

$62.99

$

In Stock, only 3 left!

0

16

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

18

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

19

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

20

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

21

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 7

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

24

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$6.49

$

Usually ships in 3-6 days

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$94.99

$

Usually ships in 3-6 days

0

29

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

32

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

33

Toro 88-4430

COVER-RECYCLER

$

$

Not available

35

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

36

Toro 68-3660

DECAL-DANGER, SHIELD

$10.99

$

In Stock, only 1 left!

0

37

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

38

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0
