71184 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) SHIFT ASSEMBLY Parts Diagram

Lawn Tractor

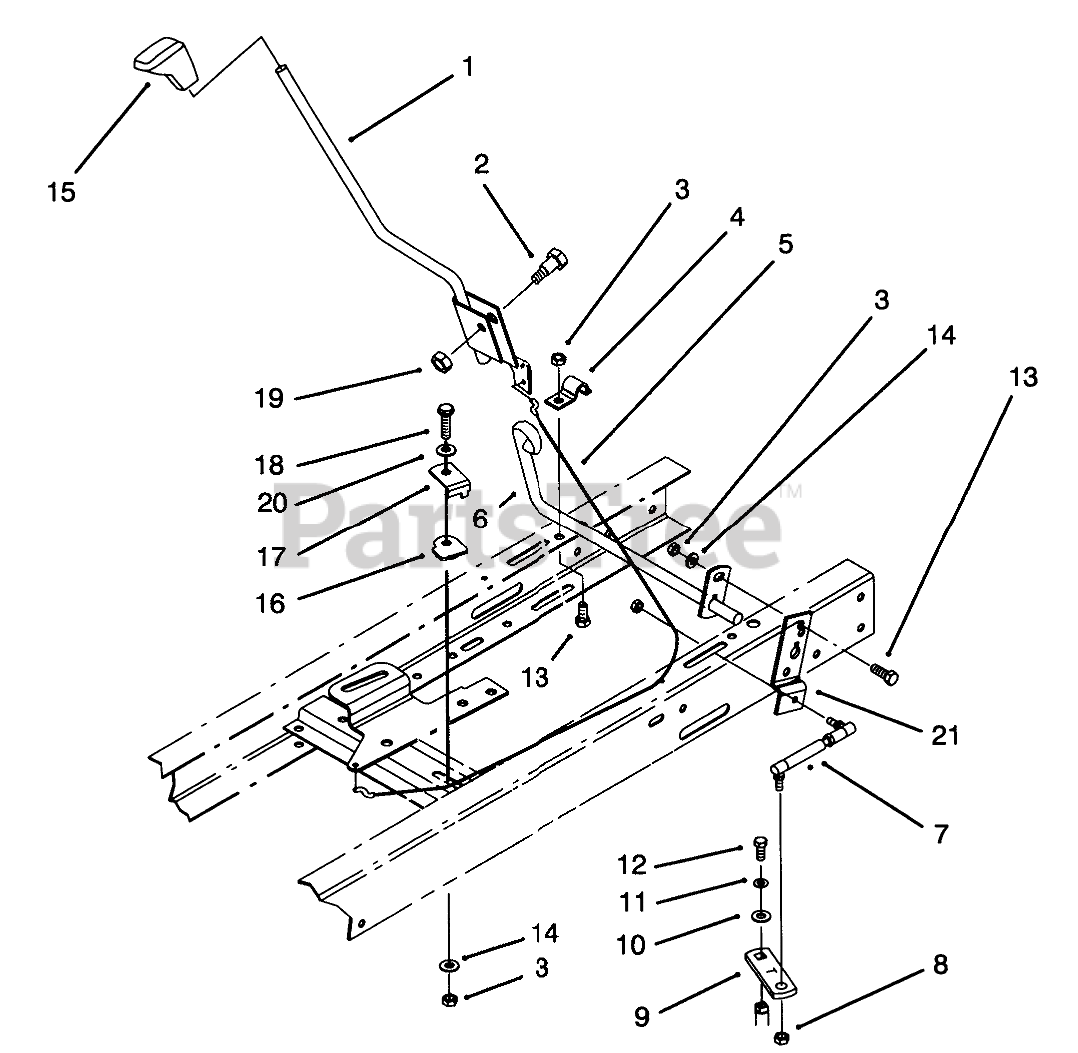

SHIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-5300

Lever-Shift
(Superseded to 88-5300-03)

$

$

Not available

2

Toro 5-4015

SHOULDER BOLT

$41.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-4810

CLAMP-PIVOT, SHIFT

$3.49

$

Usually ships in 3-6 days

0

5

Toro 55-9321

CABLE-CLUTCH

$12.99

$

In Stock, only 1 left!

0

6

Toro 92-5796

SHIFT PIVOT WAB

$

$

Not available

7

Toro 88-5530

TIE ROD, SHIFT

$470.99

$

Usually ships in 3-6 days

0

8

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

9

Toro 88-5340

LEVER-SHIFT

$

$

Not available

10

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 329-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 62-1292

SHIFT KNOB

$

$

Not available

16

Toro 84-5610

GUIDE-CABLE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 88-5930

KEEPER-CABLE

$6.49

$

Usually ships in 3-6 days

0

18

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

21

Toro 92-5794

SHIFT LEVER PIVOTB

$

$

Not available
