71182 (12-32 XL) - Toro Lawn Tractor (SN: 059010001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

Lawn Tractor

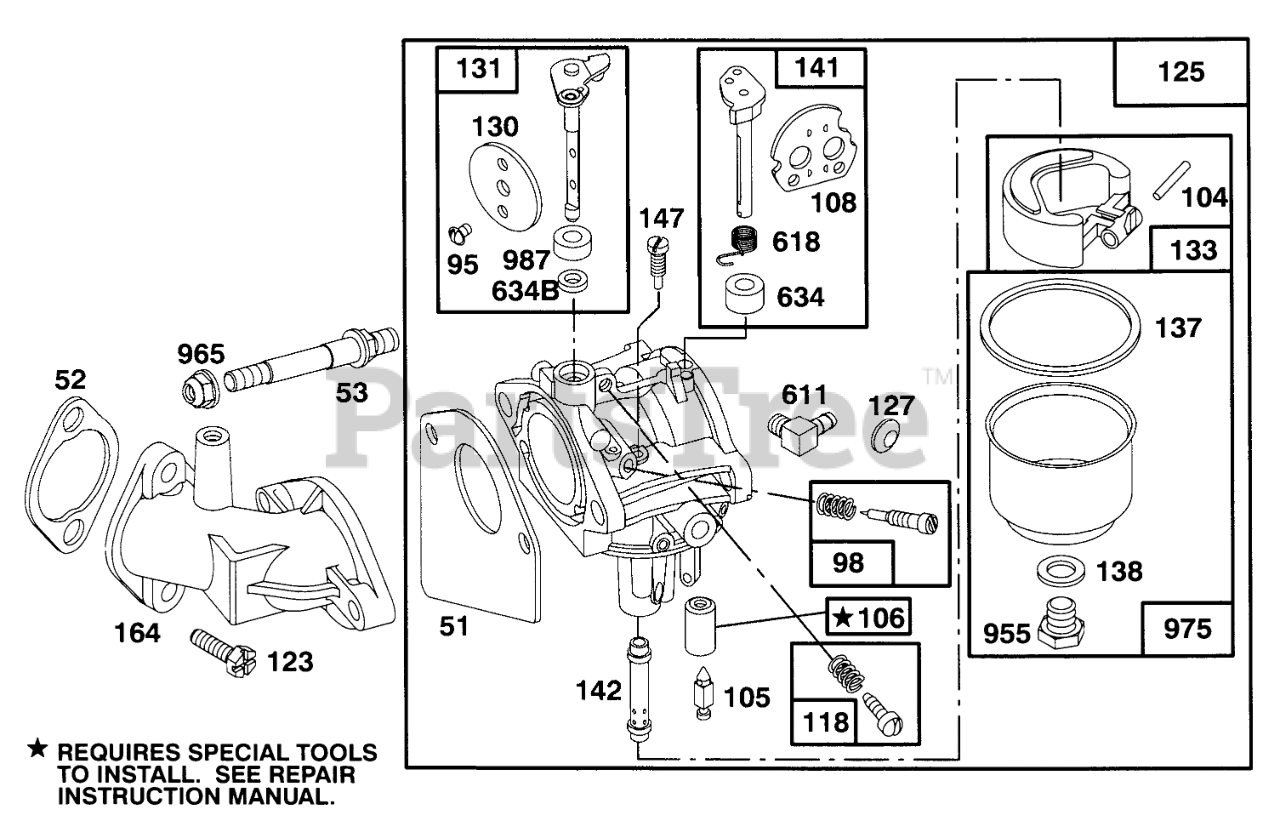

ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

  • Title

5

Toro 1272465

Gasket-Carburetor (Carb to Elbow)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

52

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Gasket Set-Part No. 494241.

$5.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$3.99

$

In Stock, only 4 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$7.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

Valve-Needle

$13.99

$

In Stock, only 1 left!

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 495706

Carburetor Assembly
(Superseded to 799728)

$

$

Not available

127

Plug-Welch(Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494380

Shaft & Lever-Choke
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 494537

Noale-Carburetor
(Superseded to 691425)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$29.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

611

Briggs & Stratton 494451

Fuel Inlet Tube
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$6.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$3.99

$

In Stock, only 3 left!

0

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94108

Locknut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Overhaul Kit-Part No. 495799

$5.49

$

Usually ships in 2-12 days

0
