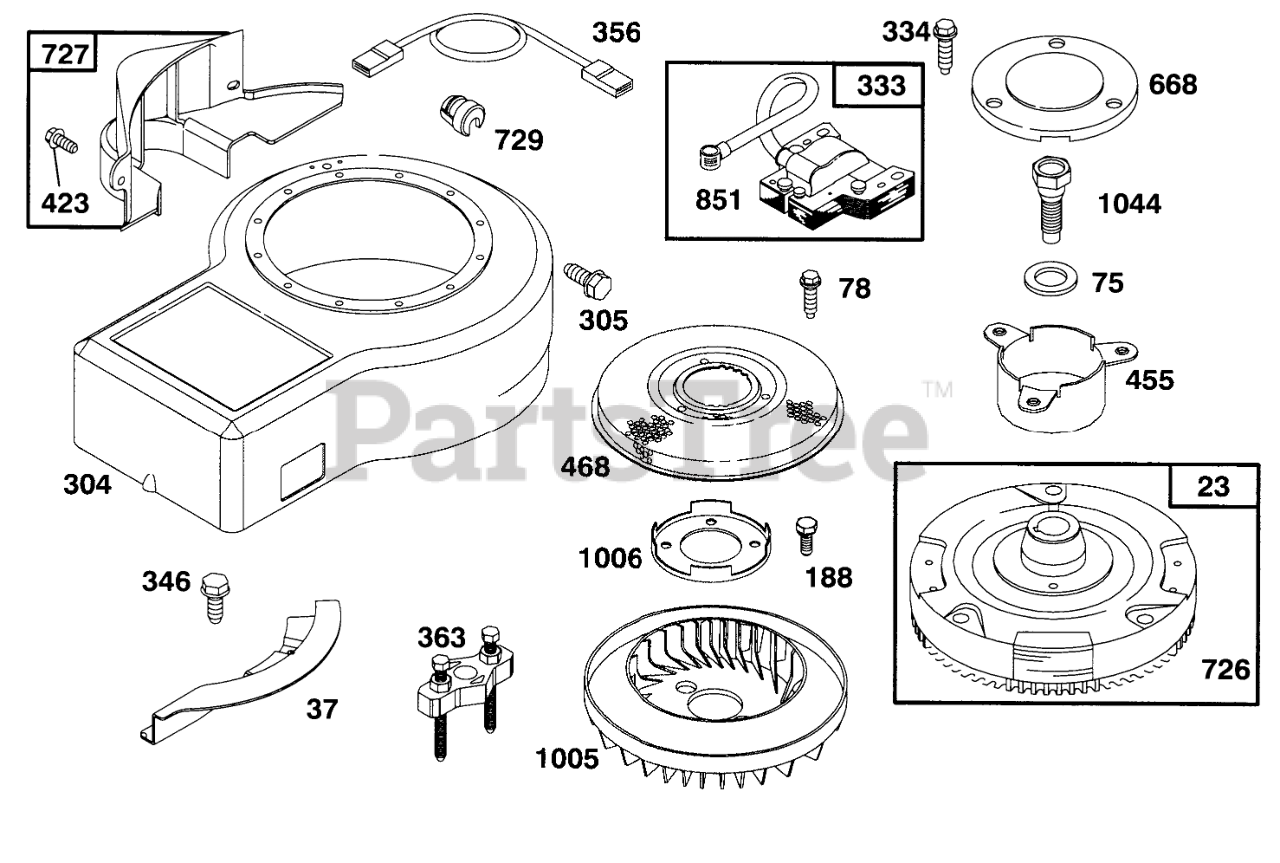

71182 (12-32 XL) - Toro Lawn Tractor (SN: 059010001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

Lawn Tractor

ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

  • Title
23

Briggs & Stratton 492326

Flywheel
(Superseded to 693557)

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 93805

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 494269

Housing-Blower
(Superseded to 494268)

$186.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 94073

Screw-Sem
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Flush Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

668

Briggs & Stratton 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring(Includes Mtg Hardware)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0
