71182 (12-32 XL) - Toro Lawn Tractor (SN: 059010001 - 059999999) (1995) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

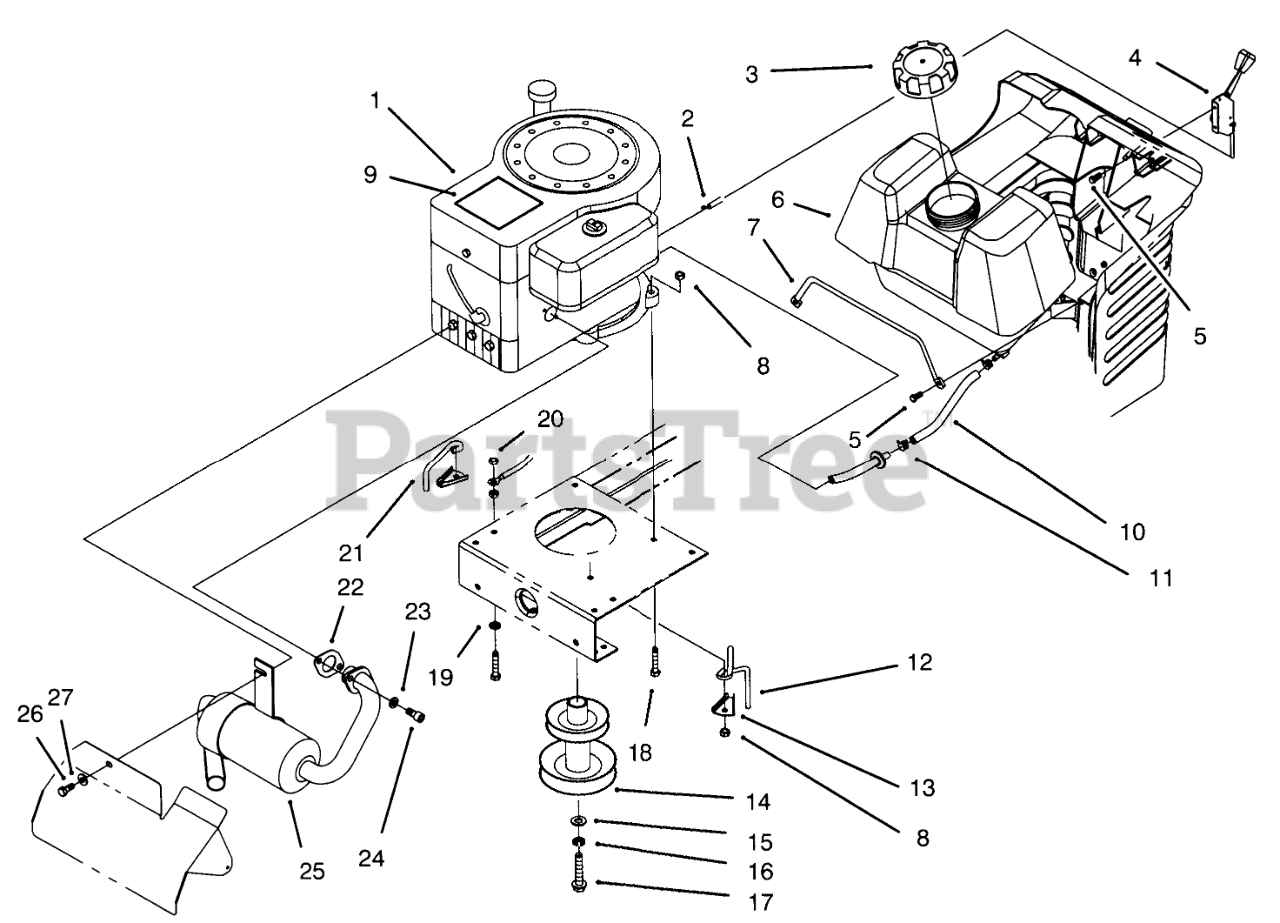

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-12 H.P. (Model No. 71182 Only)

$

$

Not available

Engine-12 H.P. (Model No. 71200 Only)

Note: Not illustrated

$

$

Not available

2

Toro 88-4350

THROTTLE CABLE ASM

$25.99

$

In Stock, only 2 left!

0

3

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

4

Toro 88-4340

THROTTLE CONTROL ASM

$35.99

$

Usually ships in 3-6 days

0

5

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

6

Toro 88-3880

GAS TANK ASM

$193.99

$

In Stock, only 1 left!

0

7

Toro 88-5920

GAS TANK ROD

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

9

Toro 92-2482

DECAL - ENGINE

$

$

Not available

10

Toro 47-2963

HOSE-FUEL
(Superseded to 107-9297)

$7.99

$

In Stock, only 1 left!

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 88-6060

GUIDE-BELT, LH

$19.99

$

Usually ships in 3-6 days

0

13

Toro 76-3820

ANCHOR-GUIDE, BELT

$2.49

$

Usually ships in 3-6 days

0

14

Toro 88-5050

PULLEY-ENGINE

$156.99

$

Usually ships in 3-6 days

0

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

19

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

20

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

21

Toro 88-5490

GUIDE-BELT, RH

$16.99

$

Usually ships in 3-6 days

0

22

Toro 88-4410

GASKET-EXHAUST

$16.99

$

In Stock, Qty 6

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3274-12

SCREW-HSH

$1.49

$

In Stock, Qty 5

0

25

Toro 88-6480

MUFFLER

$335.99

$

Usually ships in 3-6 days

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
