7117 H (1690491) - Simplicity 48" Garden Tractor, 17hp 48" Rotary Mower - Height Adjuster & Rollers Group Parts Diagram

48" Garden Tractor, 17hp

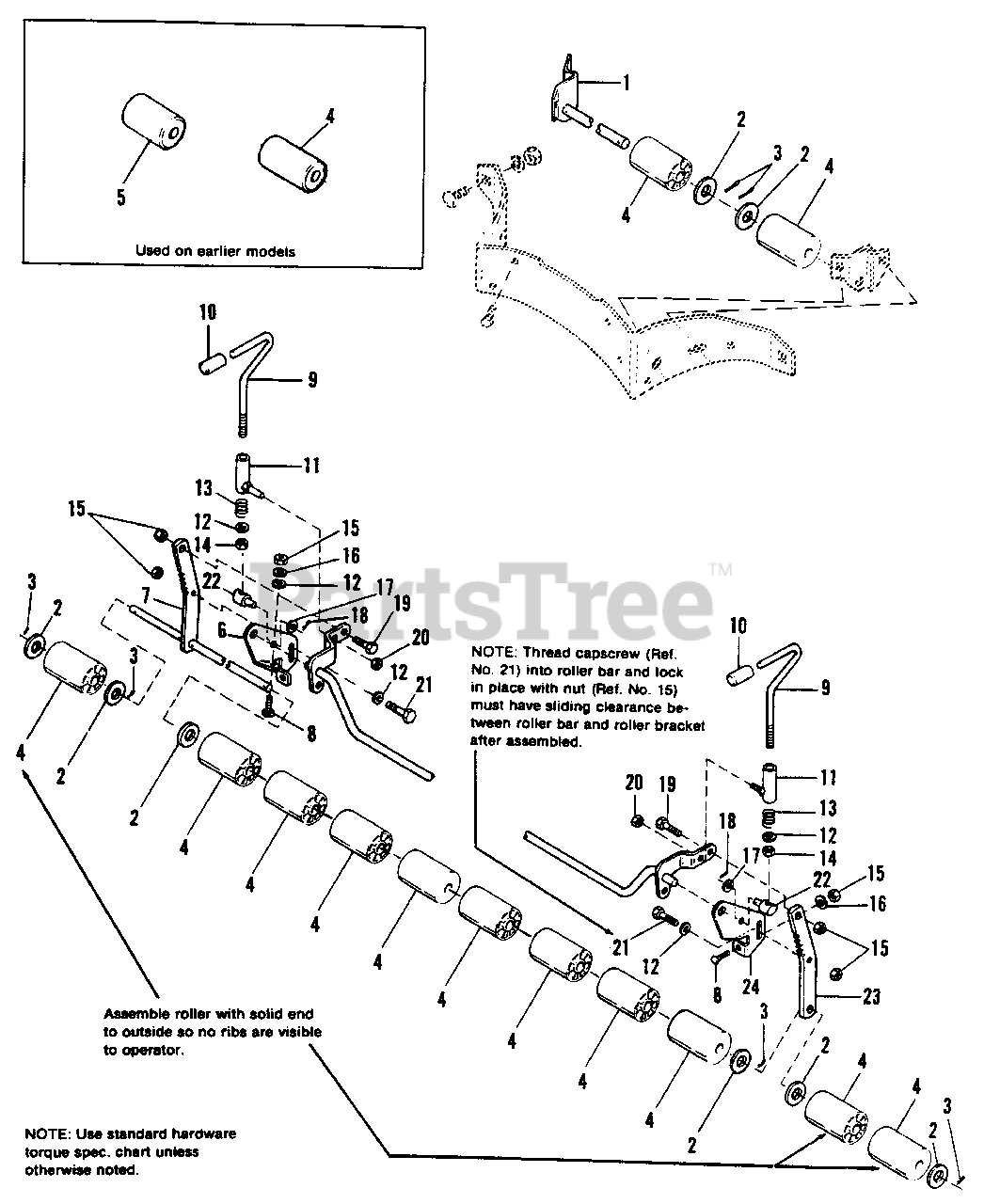

48" Rotary Mower - Height Adjuster & Rollers Group Parts Diagram

  • Title

1

Simplicity 2108454ASM

BRACKET & SHAFT ASSY.

$79.99

$

In Stock, only 2 left!

0

2

Simplicity 1960020SM

WASHER, Plain, 5/8

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1918458SM

PIN, Cotter. 3/16 x 1

$3.99

$

In Stock, Qty 10

0

4

Simplicity 1668513SM

ROLLER, 2-1/2 x 3-15/16

$10.99

$

In Stock, Qty 20+

0

5

Simplicity 2108432SM

ROLLER, 2-1/2 x 6-3/4

Note: Used before Serial no. 9509

$36.99

$

Usually ships in 2-12 days

0

6

Simplicity 2172047SM

BRACKET, Roller, R.H.
(Superseded to 2172047ASM)

$51.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668541ASM

SHAFT ASSY., Roller
(Superseded to 1668541BMYP)

$295.99

$

Usually ships in 2-12 days

0

8

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1650394SM

HANDLE, Adjusting

$80.99

$

Usually ships in 2-12 days

0

10

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 2108241SM

SOCKET ASSY.
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 2108360SM

SPRING

$5.49

$

In Stock, only 1 left!

0

14

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

15

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

20

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1923490SM

CAPSCREW, Hex Hd., 3/8-16 x 1

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 1 left!

0

23

Simplicity 1657891ASM

BAR, Roller

$48.99

$

Usually ships in 2-12 days

0

24

Simplicity 2172046ASM

BRACKET, Roller, L.H.

$103.99

$

Usually ships in 2-12 days

0
