7117 H (1690480) - Simplicity Garden Tractor, 17hp PTO Cone Clutch Group Parts Diagram

Garden Tractor, 17hp

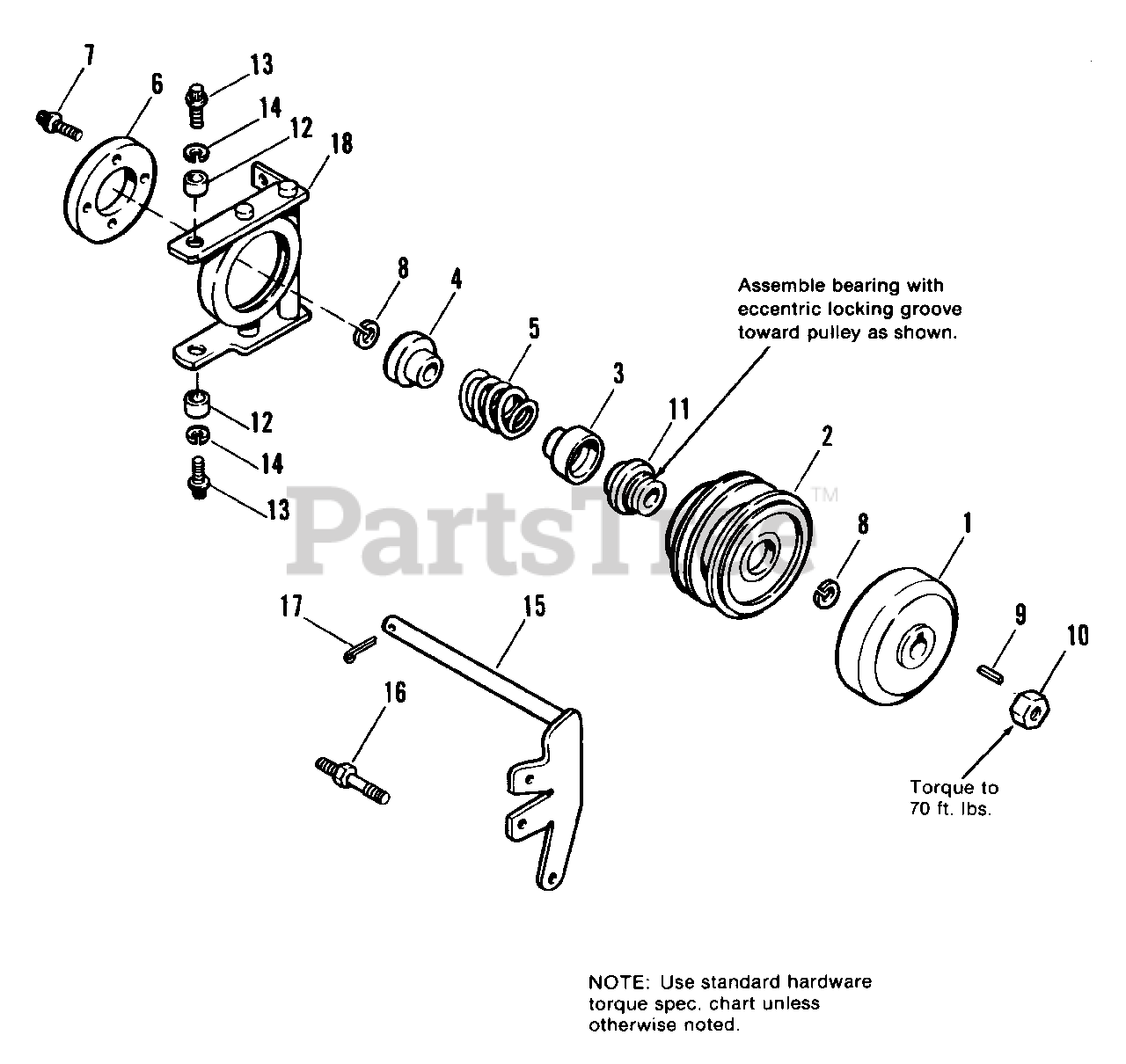

PTO Cone Clutch Group Parts Diagram

  • Title

1

Simplicity 2174862SM

CLUTCH PLATE ASSY.

$

$

Not available

2

Simplicity 1650304SM

PULLEY

$186.99

$

Usually ships in 2-12 days

0

3

Simplicity 1671339SM

GUIDE, Spring, Outside

$

$

Not available

4

Simplicity 1671339SM

GUIDE, Spring, Inside

$

$

Not available

5

Simplicity 2171772SM

SPRING

$

$

Not available

6

Simplicity 2173957SM

DISC, Brake

$38.99

$

Usually ships in 2-12 days

0

7

Simplicity 2820036SM

CAPSCREW, Skt. Hd., 1/4-20 x 5/8

$6.49

$

In Stock, only 1 left!

0

8

Simplicity 2172206SM

RING, Retaining

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

10

Simplicity 2822133

LOCKNUT, Hex, 3/4 x 16

$

$

Not available

11

Simplicity 1650254SM

BEARING ASSY.

$

$

Not available

12

Simplicity 2171371SM

SPACER

$9.49

$

In Stock, only 1 left!

0

13

Simplicity 1960086SM

SCREW, Thd. Forming

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1666781SM

PIVOT ARM ASSY.
(Superseded to 1666781ASM)

$176.99

$

Usually ships in 2-12 days

0

16

Simplicity 2157273SM

STUD

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 2818459

PIN, Cotter, 3/16 x 1-1/2

$

$

Not available

18

Simplicity 1650906SM

PIVOT ASSY.
(Superseded to 1650906ASM)

$402.99

$

Usually ships in 2-12 days

0
