7117 (1691719) - Simplicity 48" Garden Tractor, 17hp Transmission Group Parts Diagram

48" Garden Tractor, 17hp

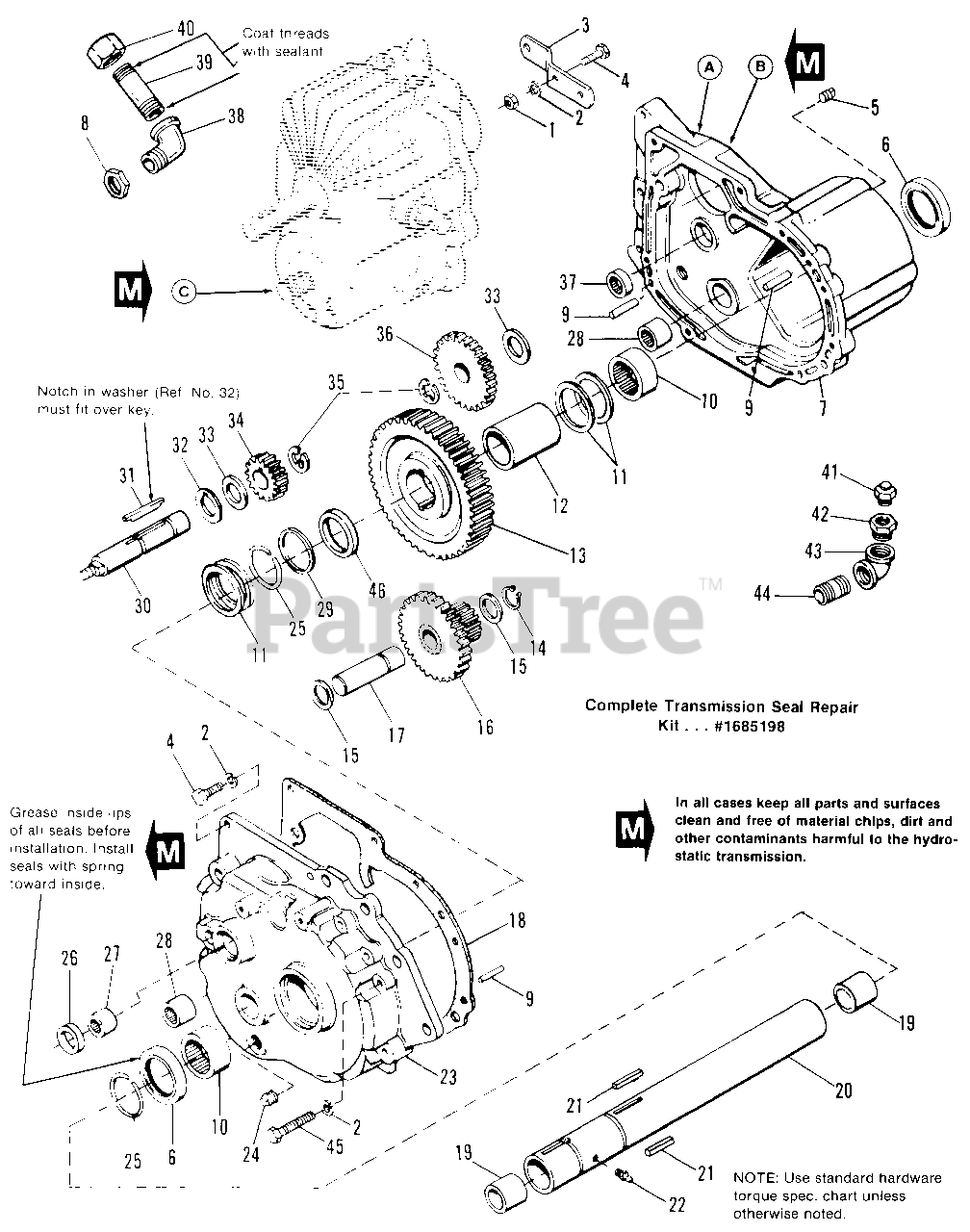

Transmission Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1667171SM

SUPPORT, Spring

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

5

Simplicity 2801652SM

PLUG, Pipe

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 2154269SM

SEAL

$

$

Not available

7

Simplicity 1650429SM

CASE ASSY., w/Bearings

$518.99

$

Usually ships in 2-12 days

0

8

Simplicity 1932849SM

LOCKNUT, 3/8, Rigid Conduit

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1927609SM

PIN, Roll, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

10

Simplicity 1652469SM

BEARING

$45.99

$

In Stock, only 1 left!

0

11

Simplicity 2154097SM

WASHER

$

$

Not available

12

Simplicity 1651512

SPACER, Axle, L.H.

Note: Used on Mfg. No. 1691382 after serial no. 2640 and before serial no. 3029.

$

$

Not available

12

Simplicity 2166041SM

SPACER, Axle, L.H.

Note: Used on Mfg. No. 1691382 before serial no. 2641 and after serial no. 3028 and all Mfg. No.1691717 & 1691957.

$31.99

$

Usually ships in 2-12 days

0

13

Simplicity 1652504

GEAR, Drive

Note: Used on Mfg. No. 1691382 after serial no. 2640 and before serial no. 3029.

$

$

Not available

13

Simplicity 1670857SM

GEAR, Drive

Note: Used on Mfg. No. 1691382 before serial no. 2641 and after serial no. 3028 and all Mfg. No.1691717 & 1691957.

$

$

Not available

14

Simplicity 2166017SM

RING, Retaining

$1.99

$

Usually ships in 2-12 days

0

15

Simplicity 2166016

WASHER

$

$

Not available

16

Simplicity 2176236SM

PINION & SHAFT ASSY.

$216.99

$

Usually ships in 2-12 days

0

17

Simplicity 2166012SM

SHAFT, Intermediate

$23.99

$

Usually ships in 2-12 days

0

18

Simplicity 2166043SM

GASKET

$16.99

$

In Stock, Qty 7

0

19

Simplicity 1653120SM

BUSHING

$10.99

$

Usually ships in 2-12 days

0

20

Simplicity 1651517SM

TUBE ASSY., Axle

Note: Used on Mfg. No. 1691382 after serial no. 2640 and before serial no. 3029.

$

$

Not available

20

Simplicity 1670864SM

TUBE ASSY., Axle

Note: Used on Mfg. No. 1691382 before serial no. 2641 and after serial no. 3028 and all Mfg. No.1691717 & 1691957.

$524.99

$

Usually ships in 2-12 days

0

21

Simplicity 2156086SM

KEY

Note: Used on Mfg. No. 1691382 after serial no. 2640 and before serial no. 3029.

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 2154096SM

KEY

Note: Used on Mfg. No. 1691382 before serial no. 2641 and after serial no. 3028 and all Mfg. No.1691717 & 1691957.

$6.99

$

In Stock, only 1 left!

0

22

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1650427SM

COVER ASSY., Grease Case w/Bearings

$328.99

$

Usually ships in 2-12 days

0

24

Simplicity 1673452SM

PLUG, Pipe

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 2154268SM

RING, Retaining

$7.49

$

In Stock, only 3 left!

0

26

Simplicity 2166021SM

SEAL

$

$

Not available

27

Simplicity 2166019SM

BEARING

$26.99

$

Usually ships in 2-12 days

0

28

Simplicity 2166018SM

BEARING, Needle

$32.99

$

Usually ships in 2-12 days

0

29

Simplicity 2166167

WASHER

$

$

Not available

30

Simplicity 1650775SM

SHAFT, Brake

$51.99

$

Usually ships in 2-12 days

0

31

Simplicity 2166014SM

KEY

$

$

Not available

32

Simplicity 1651078ASM

WASHER

$49.99

$

Usually ships in 2-12 days

0

33

Simplicity 2166013

WASHER

$

$

Not available

34

Simplicity 2176243SM

PINION

$59.99

$

Usually ships in 2-12 days

0

35

Simplicity 2176980SM

RING, Retaining

$2.99

$

In Stock, only 2 left!

0

36

Simplicity 2166004SM

GEAR

$87.99

$

Usually ships in 2-12 days

0

37

Simplicity 2154271SM

BEARING, Needle

$

$

Not available

38

Simplicity 1673453SM

ELBOW, Street

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 2801493

NIPPLE, Pipe

$

$

Not available

40

Simplicity 1667346SM

CAP, Pipe

$7.49

$

Usually ships in 2-12 days

0

41

Simplicity 2172899SM

VALVE, Refief

$14.99

$

Usually ships in 2-12 days

0

42

Simplicity 2801825SM

BUSHING, Pipe

$8.99

$

Usually ships in 2-12 days

0

43

Simplicity 2801677

ELBOW, Pipe

$

$

Not available

44

Simplicity 2801480SM

NIPPLE, Pipe

$6.49

$

Usually ships in 2-12 days

0

45

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

46

Simplicity 2166040SM

SPACER, Axle, R.H.

Note: Used on Mfg. No. 1691382 before serial no. 2641 and after serial no. 3028 and all Mfg. No.1691717 & 1691957.

$11.99

$

Usually ships in 2-12 days

0
