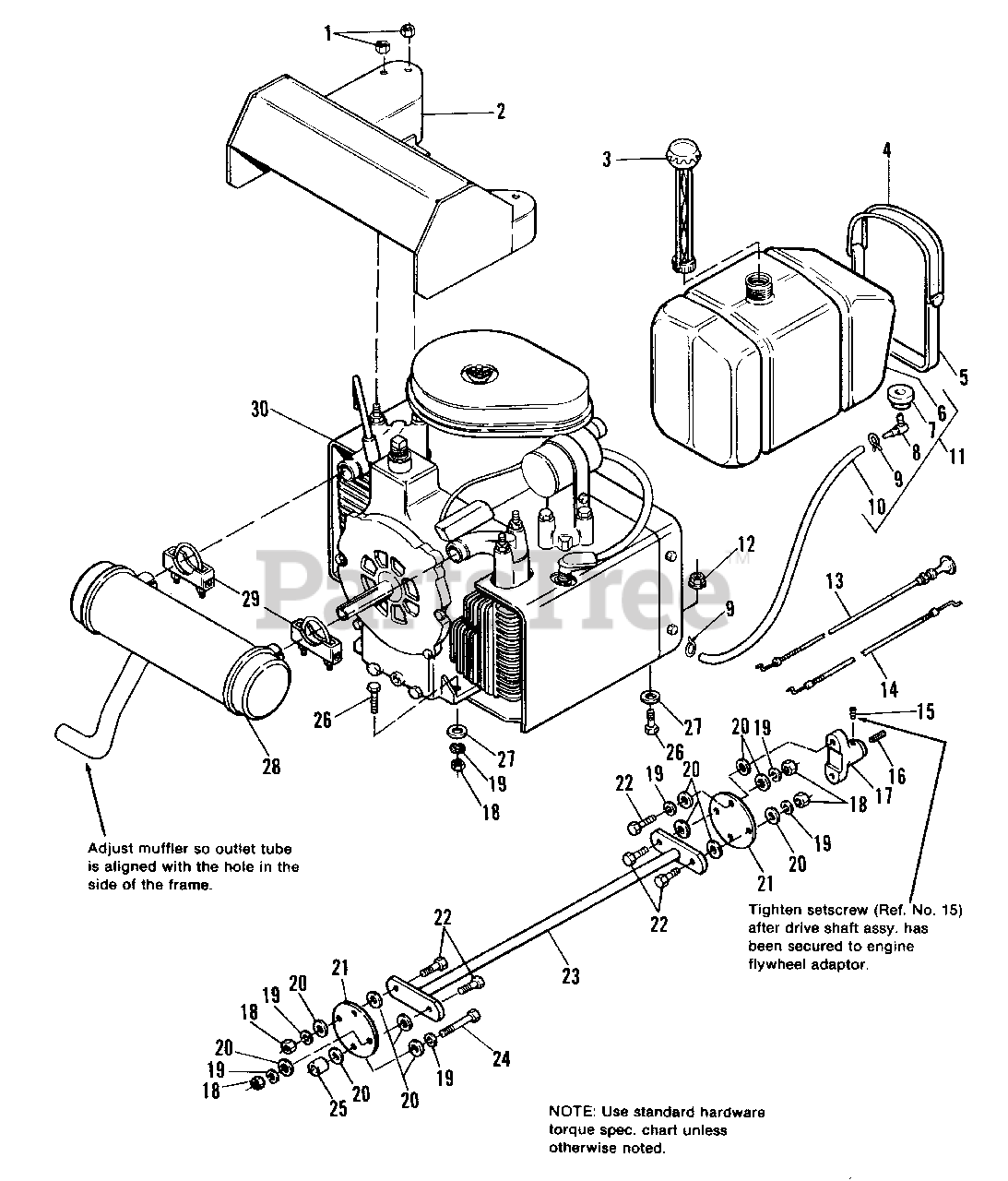

7117 (1690646) - Simplicity Garden Tractor, 17hp Engine, Exhaust & Drive Shaft Group - 7117 Parts Diagram

Garden Tractor, 17hp

Engine, Exhaust & Drive Shaft Group - 7117 Parts Diagram

  • Title

1

Simplicity 2829001

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

2

Simplicity 1666940SM

SHIELD ASSY., Heat

$

$

Not available

3

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

4

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 2171330SM

STRAP, Tank

$43.99

$

Usually ships in 2-12 days

0

6

TANK, Fuel (See Ref. No. 11)

$

$

Not available

7

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 1664460SM

FITTING

$9.99

$

In Stock, Qty 17

0

9

Simplicity 2154372

CLAMP, Hose

$

$

Not available

10

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

11

Simplicity 1687040SM

TANK ASSY., Fuel

Note: Ref. No. 11 includes Ref. Nos. 6, 7, 8, 9 (Qty. 1) & 10.

$

$

Not available

12

Simplicity 2828352

LOCKNUT, Hex, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1666269SM

CONTROL, Choke

$75.99

$

Usually ships in 2-12 days

0

14

Simplicity 1666266SM

CONTROL, Throttle

$55.99

$

In Stock, only 1 left!

0

15

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

16

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

17

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

18

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

21

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

22

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1666118SM

SHAFT ASSY., Drive

$77.99

$

Usually ships in 2-12 days

0

24

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

25

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

26

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

27

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1666923SM

MUFFLER, Exhaust

$378.99

$

Usually ships in 2-12 days

0

29

Simplicity 2835040SM

CLAMP, Exhaust

$5.99

$

Usually ships in 2-12 days

0

30

ENGINE, 17 HP Kohler

$

$

Not available
