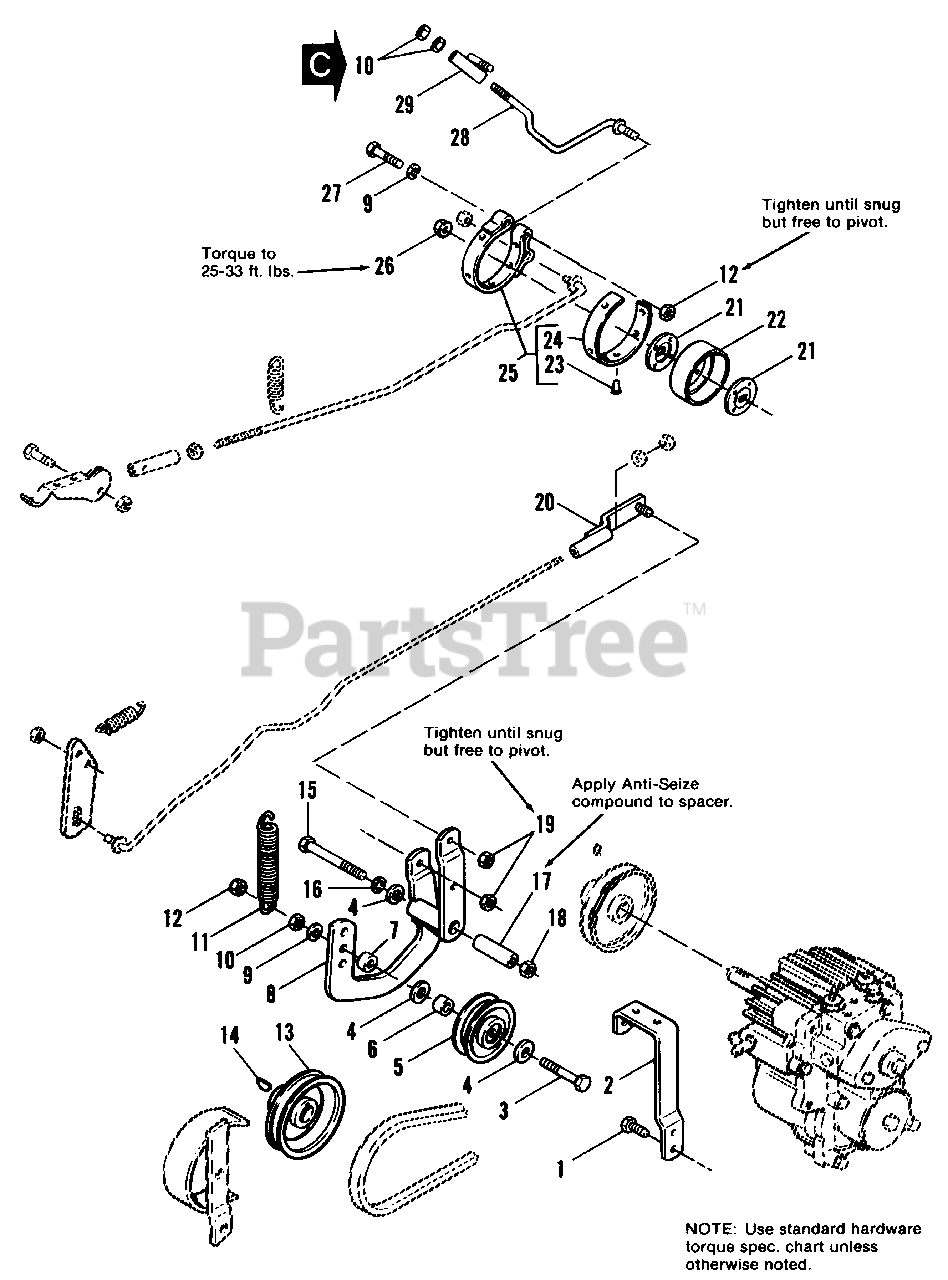

7116 H (1690489) - Simplicity 48" Garden Tractor, 16hp Clutch & Brake Group Parts Diagram

48" Garden Tractor, 16hp

Clutch & Brake Group Parts Diagram

  • Title
1

Simplicity 2826035

SCREW, Thd. Form, 3/8 x 3/4

$

$

Not available

2

$

$

Not available

3

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1685144SM

PULLEY ASSY.

$

$

Not available

$4.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 6

0

8

Simplicity 2166126SM

LEVER ASSY., Idler

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

$17.99

$

In Stock, Qty 8

0

12

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1657323SM

PULLEY
(Superseded to 1657323ASM)

$87.99

$

Usually ships in 2-12 days

0

14

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

15

Simplicity 2828295

CAPSCREW, Hex Hd., 7/16-14 x 3-3/4

$

$

Not available

16

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

19

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

20

Simplicity 2166157SM

GUIDE ASSY.
(Superseded to 2166157ASM)

$53.99

$

Usually ships in 2-12 days

0

21

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 2166176SM

DRUM, Brake

$14.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 2172237

LINING, Brake

$

$

Not available

25

Simplicity 2172234

BAND ASSY., Brake

$

$

Not available

26

Simplicity 2830650

LOCKNUT, Flange, Whiz, 7/16-14

$

$

Not available

27

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

28

$22.99

$

Usually ships in 2-12 days

0

29

Simplicity 2166119SM

GUIDE ASSY., Rod

$51.99

$

In Stock, only 1 left!

0
