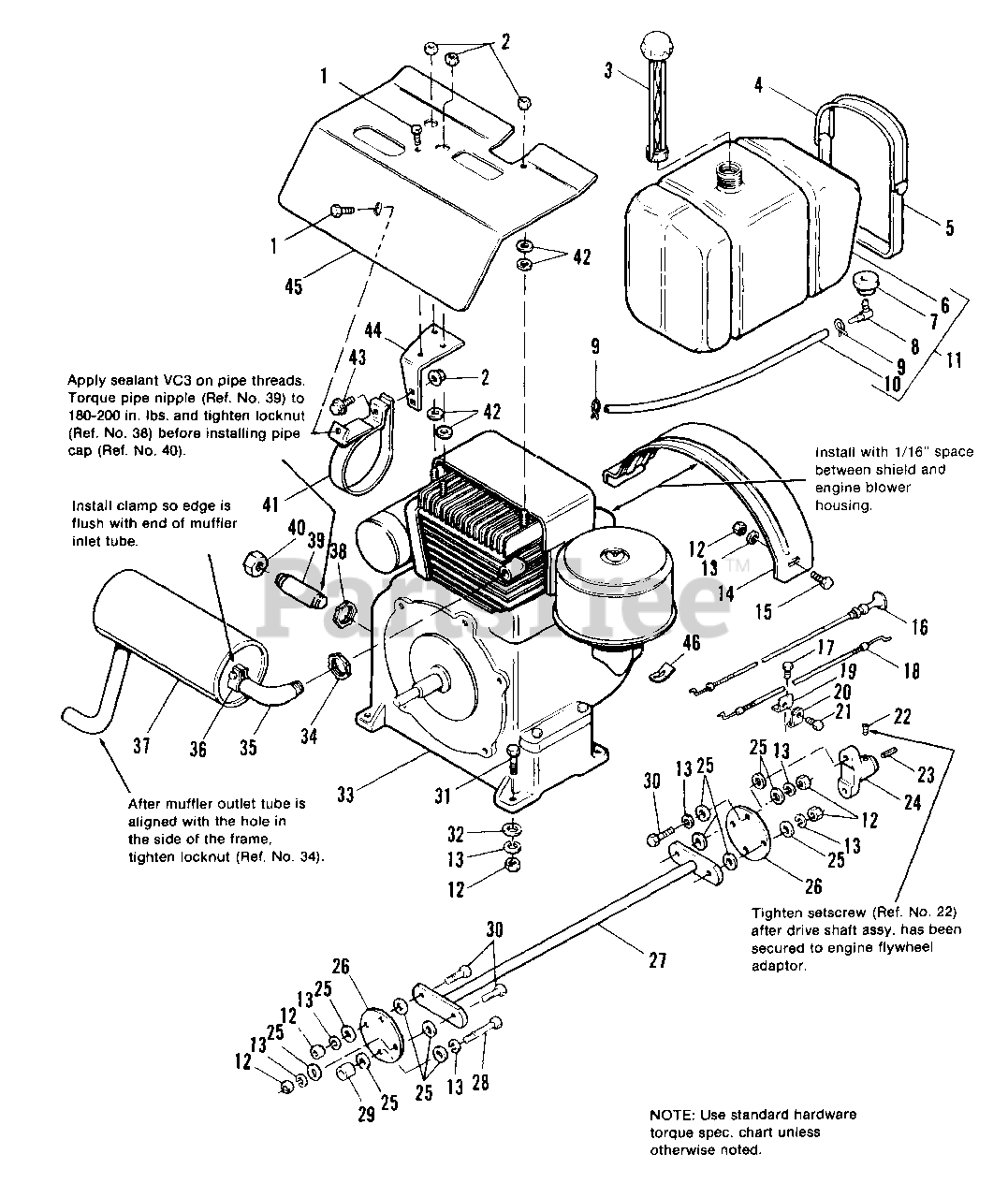

7116 (1690660) - Simplicity Garden Tractor, 16hp Engine, Exhaust & Drive Shaft Group - 7114 & 7115 Early Models Parts Diagram

Garden Tractor, 16hp

Engine, Exhaust & Drive Shaft Group - 7114 & 7115 Early Models Parts Diagram

  • Title

1

Simplicity 2825003

SCREW, Hex, Taptite, 1/4-20 x 1/2

$

$

Not available

2

Simplicity 2827557

NUT, Hex, Whizlock, 5/16-18

$

$

Not available

3

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

4

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 2171330SM

STRAP, Fuel Tank

$43.99

$

Usually ships in 2-12 days

0

6

TANK, Fuel (See Ref. No. 11)

$

$

Not available

7

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 1664460SM

FITTING

$9.99

$

In Stock, Qty 20+

0

9

Simplicity 2154372

CLAMP

$

$

Not available

10

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

11

Simplicity 1687040SM

TANK ASSY., Fuel

Note: Ref. No. 11 includes Ref. Nos. 6, 7, 8, 9 (Qty. 1), & 10.

$

$

Not available

12

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

14

Simplicity 1667407

SHIELD

$

$

Not available

15

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

16

Simplicity 1666269SM

CONTROL, Choke

$75.99

$

Usually ships in 2-12 days

0

17

Simplicity 2827429

SCREW, Hex Hd., Type F, 1/4-20 x 5/8

$

$

Not available

18

Simplicity 1666268SM

CONTROL, Throttle

$39.99

$

In Stock, Qty 5

0

19

Simplicity 1656453

BRACKET, Cable

$

$

Not available

20

Simplicity 2158475SM

CLIP, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

21

Simplicity 2829477

SCREW, Hex, Taptite, #10-24 x 1/2

$

$

Not available

22

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

23

Simplicity 2157427SM

KEY, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

24

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

25

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

26

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

27

Simplicity 1666152SM

SHAFT ASSY., Drive

$98.99

$

In Stock, only 1 left!

0

28

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

29

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

30

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

32

Simplicity 1924940SM

WASHER, Piain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

ENGINE, 14 HP Briggs & Stratton ENGINE, 16 HP Briggs & Stratton

$

$

Not available

34

Simplicity 2154378SM

LOCKNUT

$6.99

$

Usually ships in 2-12 days

0

35

Simplicity 1666122SM

ELBOW ASSY., Exhaust

$123.99

$

Usually ships in 2-12 days

0

36

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$

$

Not available

37

Simplicity 1666059SM

MUFFLER, Exhaust

$

$

Not available

38

Simplicity 2832849

LOCKNUT, 3/8-18

$

$

Not available

39

Simplicity 901490

NIPPLE, Pipe

$

$

Not available

40

Simplicity 1667346SM

CAP, Pipe, Hex

$7.49

$

Usually ships in 2-12 days

0

41

Simplicity 1666833ASM

STRAP ASSY., Muffler

$54.99

$

Usually ships in 2-12 days

0

42

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

43

Simplicity 2833689

CAPSCREW, Flange, Whizlock, 5/16-18 x 1-1/2

$

$

Not available

44

Simplicity 1666885SM

SUPPORT, Muffler

$

$

Not available

45

Simplicity 1666831

SHIELD, Heat

$

$

Not available

46

Simplicity 1663622

RESTRICTOR, Throttle (7114 Only)

$

$

Not available
