7116 (1690487) - Simplicity 48" Garden Tractor, 16hp Seat & Deck Group Parts Diagram

48" Garden Tractor, 16hp

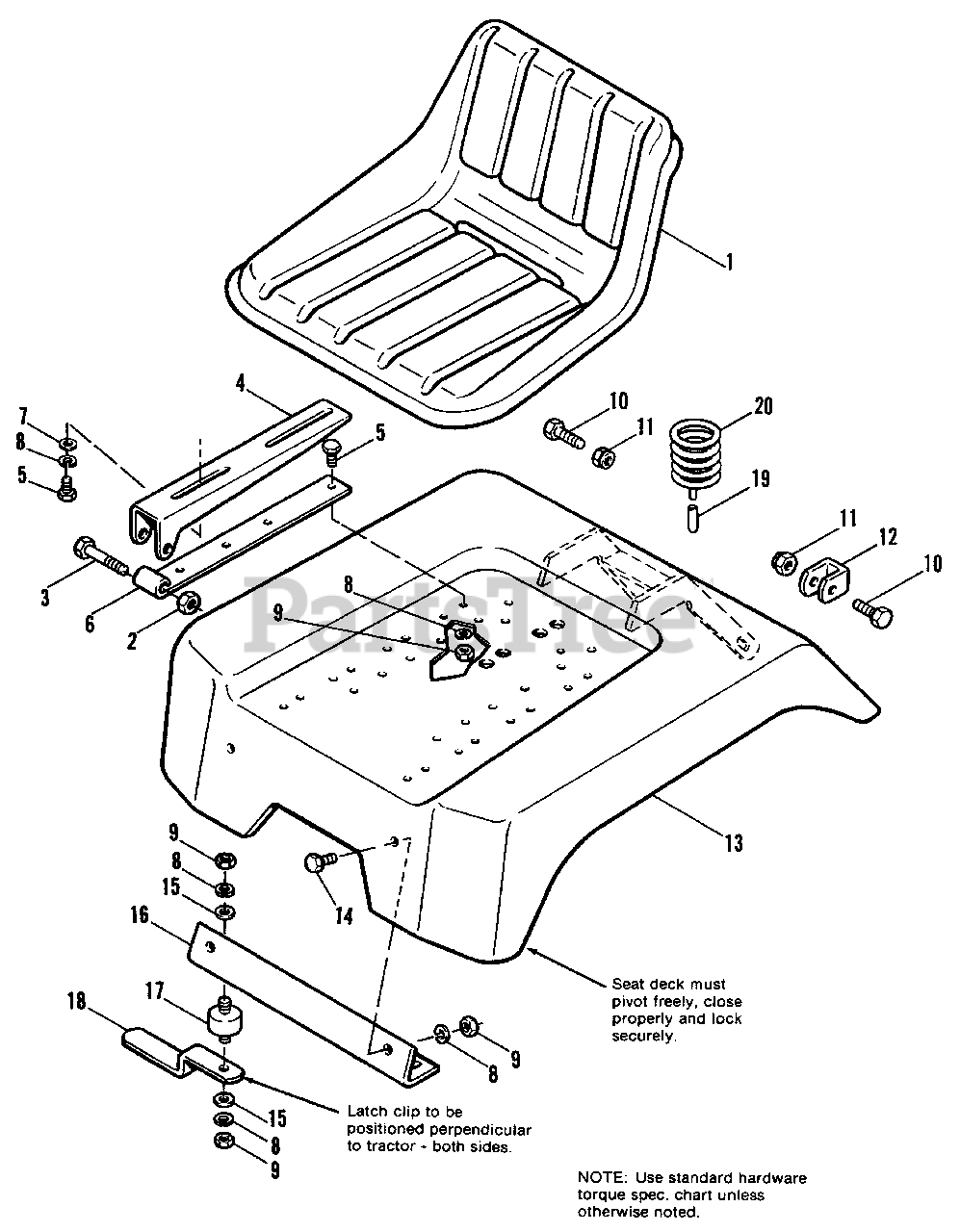

Seat & Deck Group Parts Diagram

  • Title

1

Simplicity 1686712SM

SEAT

$487.99

$

Usually ships in 2-12 days

0

2

Simplicity 2823428

LOCKNUT. Hex, Full, 3/8-16

$

$

Not available

3

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

4

Simplicity 1701559SM

HINGE, Upper

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

6

Simplicity 1666737SM

HINGE, Lower

$17.99

$

Usually ships in 2-12 days

0

7

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1920415SM

CAPSCREW, Hex, Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1607870SM

STOP, Seat Deck
(Superseded to 1607870ASM)

$52.99

$

Usually ships in 2-12 days

0

13

Simplicity 1715769SM

DECK ASSY., Seat
(Superseded to 1715769CSM)

$250.99

$

Usually ships in 2-12 days

0

14

Simplicity 2825205

CAPSCREW, Hex, Hd., 5/16-18 x 5/8

$

$

Not available

15

Simplicity 2817377

WASHER, 1/4

$

$

Not available

16

Simplicity 2164029SM

BRACKET, Front Seat Deck

$

$

Not available

17

Simplicity 1666744SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

18

Simplicity 1606823SM

CLIP, Latch

$

$

Not available

19

Simplicity 1666691SM

COVER, Wire

$4.99

$

In Stock, only 4 left!

0

20

Simplicity 1666690SM

SPRING, Seat

$

$

Not available
