7116 (1690476) - Simplicity Garden Tractor, 16hp Brake Linkage Group Parts Diagram

Garden Tractor, 16hp

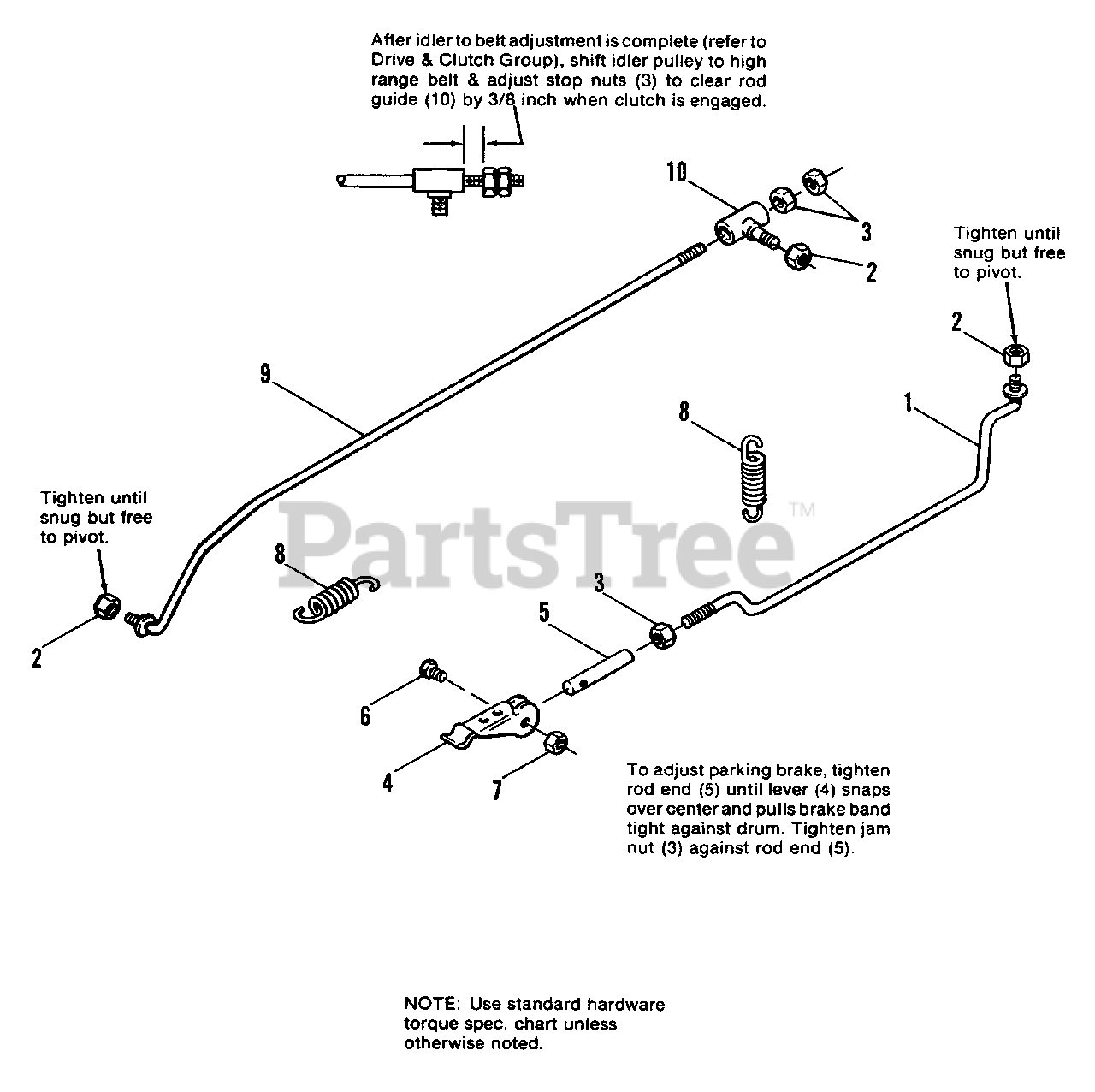

Brake Linkage Group Parts Diagram

  • Title
1

Simplicity 1666791

PARKING BRAKE ROD ASSY.

$

$

Not available

2

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

3

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2172108SM

LEVER, Parking Brake

$

$

Not available

$15.99

$

In Stock, only 1 left!

0

6

Simplicity 2826771

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available

7

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

$

$

Not available

9

Simplicity 1656455

CLUTCH & BRAKE ROD ASSY.

$

$

Not available

10

Simplicity 2164094SM

ROD GUIDE ASSY.

$45.99

$

Usually ships in 2-12 days

0
