7116 (1690475) - Simplicity Garden Tractor, 16hp Draw Bar Group Parts Diagram

Garden Tractor, 16hp

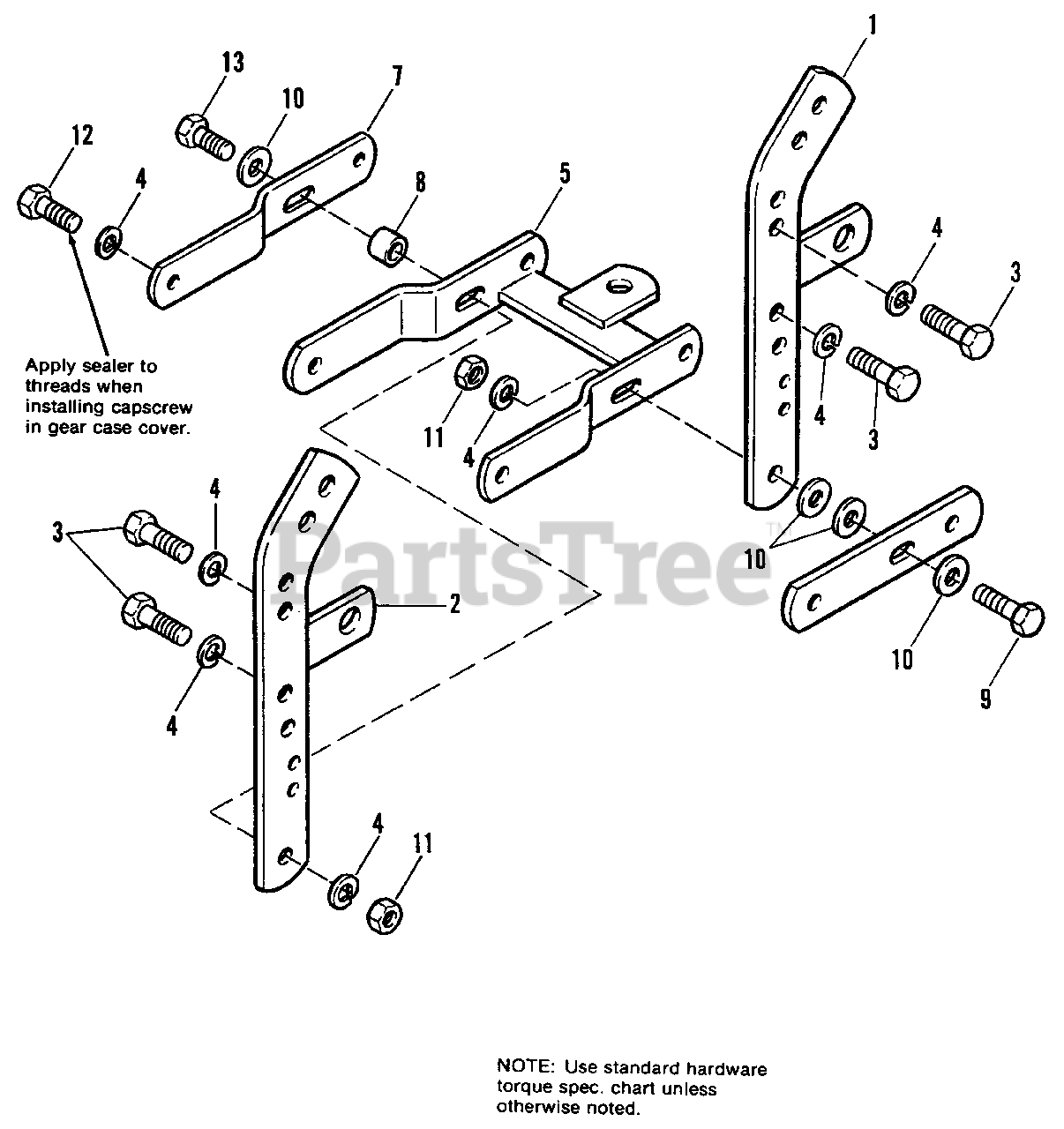

Draw Bar Group Parts Diagram

  • Title
1

Simplicity 164304

ARM ASSY., L.H.

$

$

Not available

2

Simplicity 164284

ARM ASSY., R.H.

$

$

Not available

3

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0

4

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

5

Simplicity 154202

DRAW BAR ASSY.

$

$

Not available

6

Simplicity 157091

BAR, Pull, L.H.

$

$

Not available

7

Simplicity 154203

BAR, Draw, R.H.

$

$

Not available

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

10

Simplicity 2818430

WASHER, 7/16

$

$

Not available

11

Simplicity 2818213

NUT, Hex, 7/16-14

$

$

Not available

12

Simplicity 2823027

CAPSCREW, Hex Hd., 7/16-14 x 1-3/4

$

$

Not available

13

Simplicity 926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$

$

Not available
