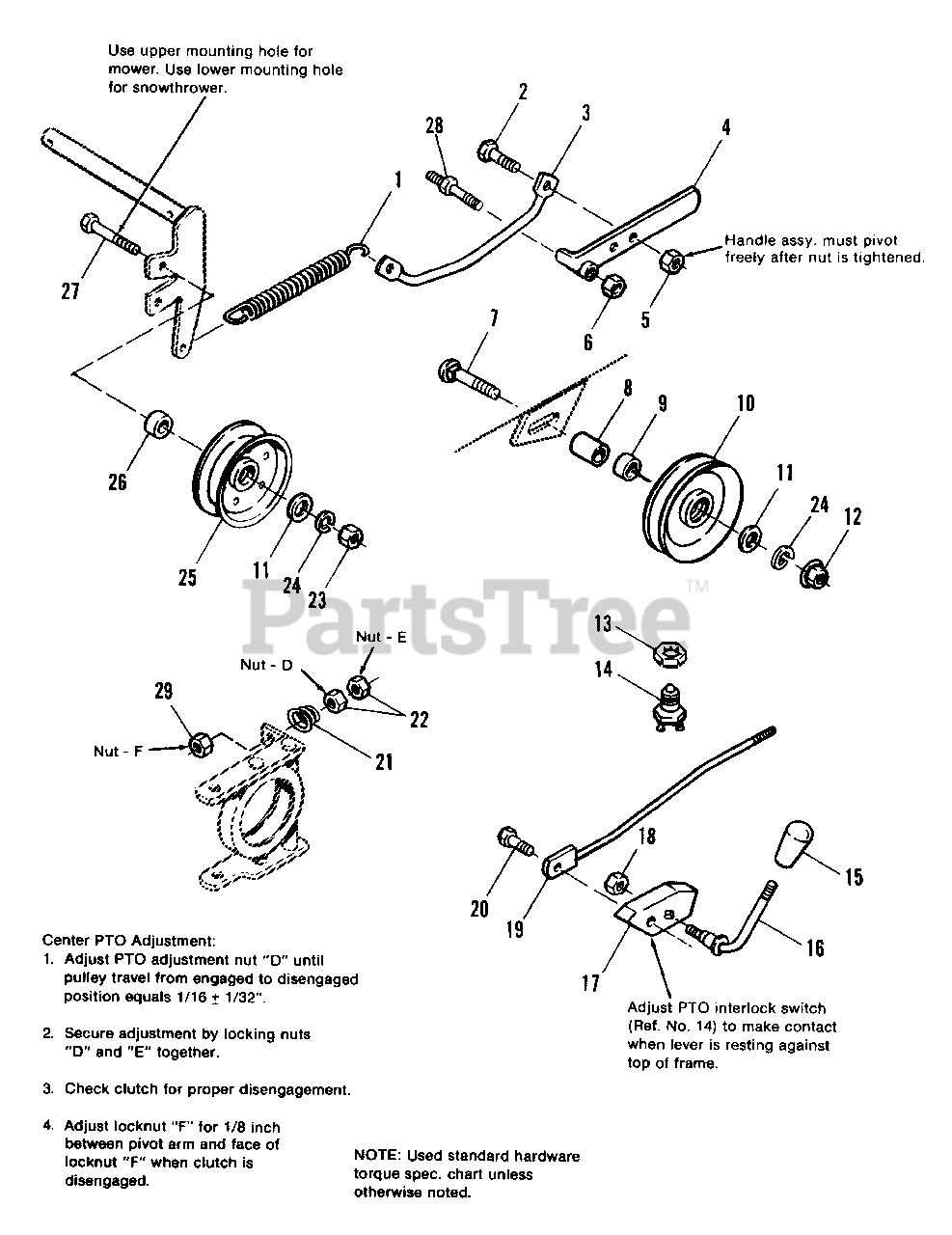

7114 (1690722) - Simplicity 42" Garden Tractor, 14hp P.T.O. Control Group Parts Diagram

42" Garden Tractor, 14hp

P.T.O. Control Group Parts Diagram

  • Title
1

Simplicity 1715435SM

SPRING, Tension

$9.49

$

In Stock, Qty 20+

0

2

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

3

Simplicity 2164047

ROD, Tension

$

$

Not available

4

Simplicity 2164155SM

HANDLE ASSY.

$102.99

$

Usually ships in 2-12 days

0

5

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

6

Simplicity 2824058

LOCKNUT, Hex, 7/16-14

$

$

Not available

7

Simplicity 2831353

BOLT, Carriage, 3/8-16 x 1-3/4

$

$

Not available

$3.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1665440SM

PULLEY ASSY., w/Bearings

$

$

Not available

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 2816950SM

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 1930647

NUT, Pal
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

15

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

16

Simplicity 174644

HANDLE, PTO, Clutch

$

$

Not available

$

$

Not available

18

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1671323SM

ROD ASSY., Control

$142.99

$

Usually ships in 2-12 days

0

20

Simplicity 2174686

CAPSCREW, Special

$

$

Not available

$

$

Not available

22

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 1606554SM

PULLEY, Idler

$

$

Not available

$5.99

$

In Stock, Qty 16

0

27

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

$25.99

$

Usually ships in 2-12 days

0

29

Simplicity 2828698

LOCKNUT, Hex, Jam, Cntr., 5/16-18

$

$

Not available
