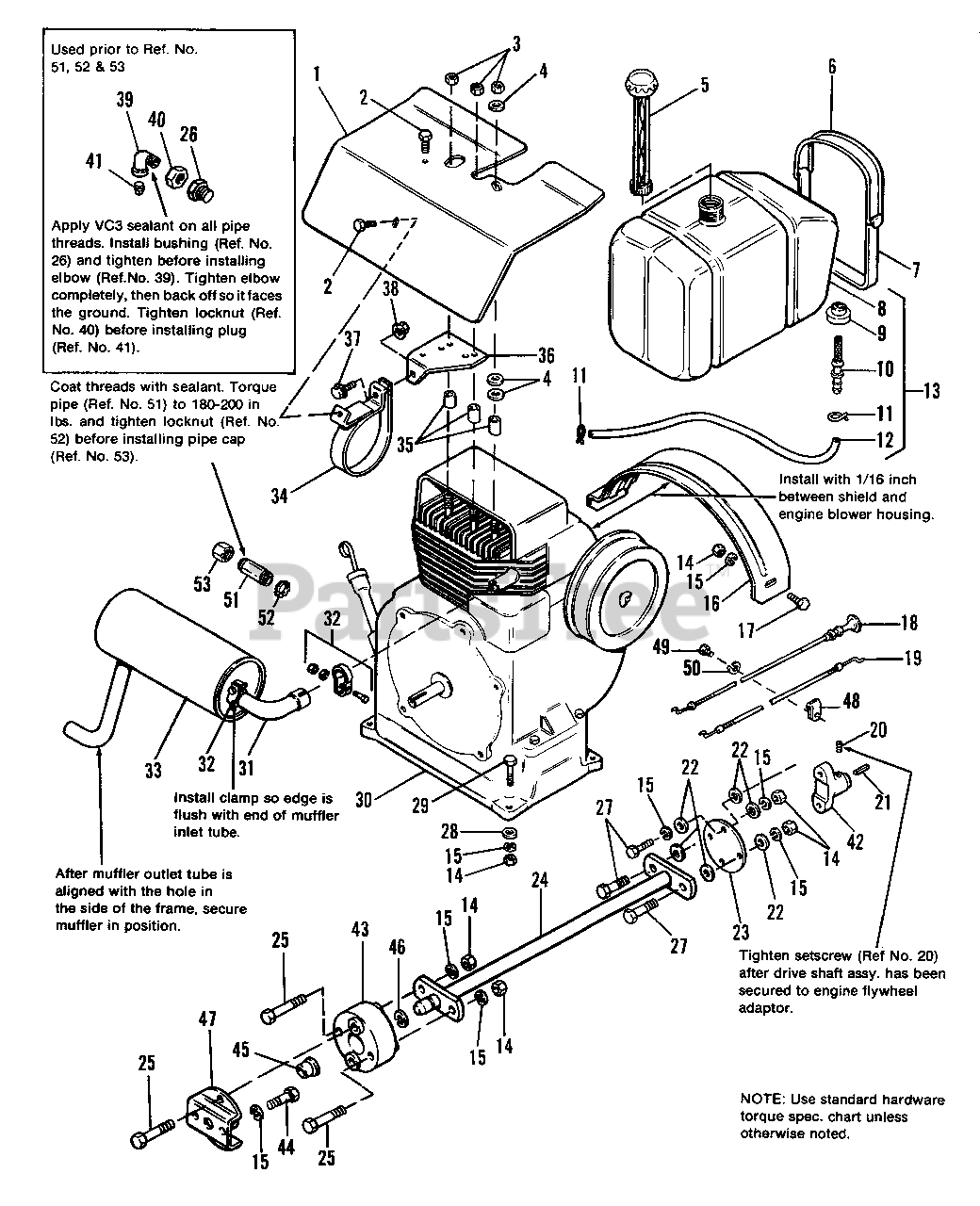

7112 H (1690576) - Simplicity 42" Garden Tractor, 12hp Engine, Exhaust & Drive Shaft Group - 7112 & 7114 Later Models Parts Diagram

42" Garden Tractor, 12hp

Engine, Exhaust & Drive Shaft Group - 7112 & 7114 Later Models Parts Diagram

  • Title

1

Simplicity 166838

SHIELD, Heat

$

$

Not available

2

Simplicity 2825003

SCREW, Hex, Taptite, 1/4-20 x 1/2

$

$

Not available

3

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/18-6

$

$

Not available

4

Simplicity 2156065

WASHER

$

$

Not available

5

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

6

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

7

Simplicity 2171330SM

STRAP, Tank

$43.99

$

Usually ships in 2-12 days

0

8

TANK, Fuel (See Ref. No. 13)

$

$

Not available

9

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 1664460SM

FITTING

$9.99

$

In Stock, Qty 20+

0

11

Simplicity 2154372

CLAMP, Hose

$

$

Not available

12

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

13

Simplicity 1687040SM

TANK ASSY., Fuel

Note: Ref. No. 13 includes Ref. Nos. 8, 9, 10, 11 (Qty. 1) & 12.

$

$

Not available

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 1667407

SHIELD

$

$

Not available

17

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

18

Simplicity 1666269SM

CONTROL, Choke

$75.99

$

Usually ships in 2-12 days

0

19

Simplicity 1666266SM

CONTROL, Throttle

$55.99

$

In Stock, only 1 left!

0

20

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

21

Simplicity 2157427SM

KEY, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

22

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

23

Simplicity 2173026SM

COUPLING

$39.99

$

Usually ships in 2-12 days

0

24

Simplicity 1669042SM

SHAFT ASSY., Drive

$119.99

$

Usually ships in 2-12 days

0

25

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16, 2-1/2

$

$

Not available

26

Simplicity 904239

BUSHING, Pipe, 3/4 x 3/8

Note: Used on models with oil drain elbow (Ref. No. 39).

$

$

Not available

27

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

30

ENGINE, 12 HP Kohler

$

$

Not available

31

Simplicity 1666120SM

ELBOW, Exhaust

$

$

Not available

32

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$

$

Not available

33

Simplicity 1666059SM

MUFFLER, Exhaust

$

$

Not available

34

Simplicity 1666833ASM

STRAP ASSY., Muffler

$54.99

$

Usually ships in 2-12 days

0

35

Simplicity 2121121

SPACER

$

$

Not available

36

Simplicity 1666837

SUPPORT, Muffler

$

$

Not available

37

Simplicity 2833689

CAPSCREW, Hex, Whiz, Flange, 5/16-18 x 1-1/2

$

$

Not available

38

Simplicity 2827557

NUT, Hex, Whiz, Flange, 5/16-18

$

$

Not available

39

Simplicity 2801723

ELBOW, Pipe, 90ø, 3/8

Note: Used on models with oil drain elbow (Ref. No. 39).

$

$

Not available

40

Simplicity 2832849

LOCKNUT, 3/8-18

Note: Used on models with oil drain elbow (Ref. No. 39).

$

$

Not available

41

Simplicity 2801653

PLUG, Pipe, 3/8

Note: Used on models with oil drain elbow (Ref. No. 39).

$

$

Not available

42

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

43

Simplicity 1668637

COUPLING, Compression

$

$

Not available

44

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

45

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

46

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 18

0

47

Simplicity 1669040SM

PLATE ASSY., Adaptor

$

$

Not available

48

Simplicity 1673017

CLIP, Control Cable

$

$

Not available

49

Simplicity 2821958

CAPSCREW, Flex, 1/4-20 x 1/2

$

$

Not available

50

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

51

Simplicity 1673451

DRAIN, Oil

Note: Used on models with straight oil drain (Ref. No. 51).

$

$

Not available

52

Simplicity 932851

LOCKNUT, 3/4

Note: Used on models with straight oil drain (Ref. No. 51).

$

$

Not available

53

Simplicity 1673073

CAP, Hex 3/4

Note: Used on models with straight oil drain (Ref. No. 51).

$

$

Not available
