7112 (1690745) - Simplicity 42" Garden Tractor, 12hp Lift Lever & Cable Group - 7112 & 7114 Parts Diagram

42" Garden Tractor, 12hp

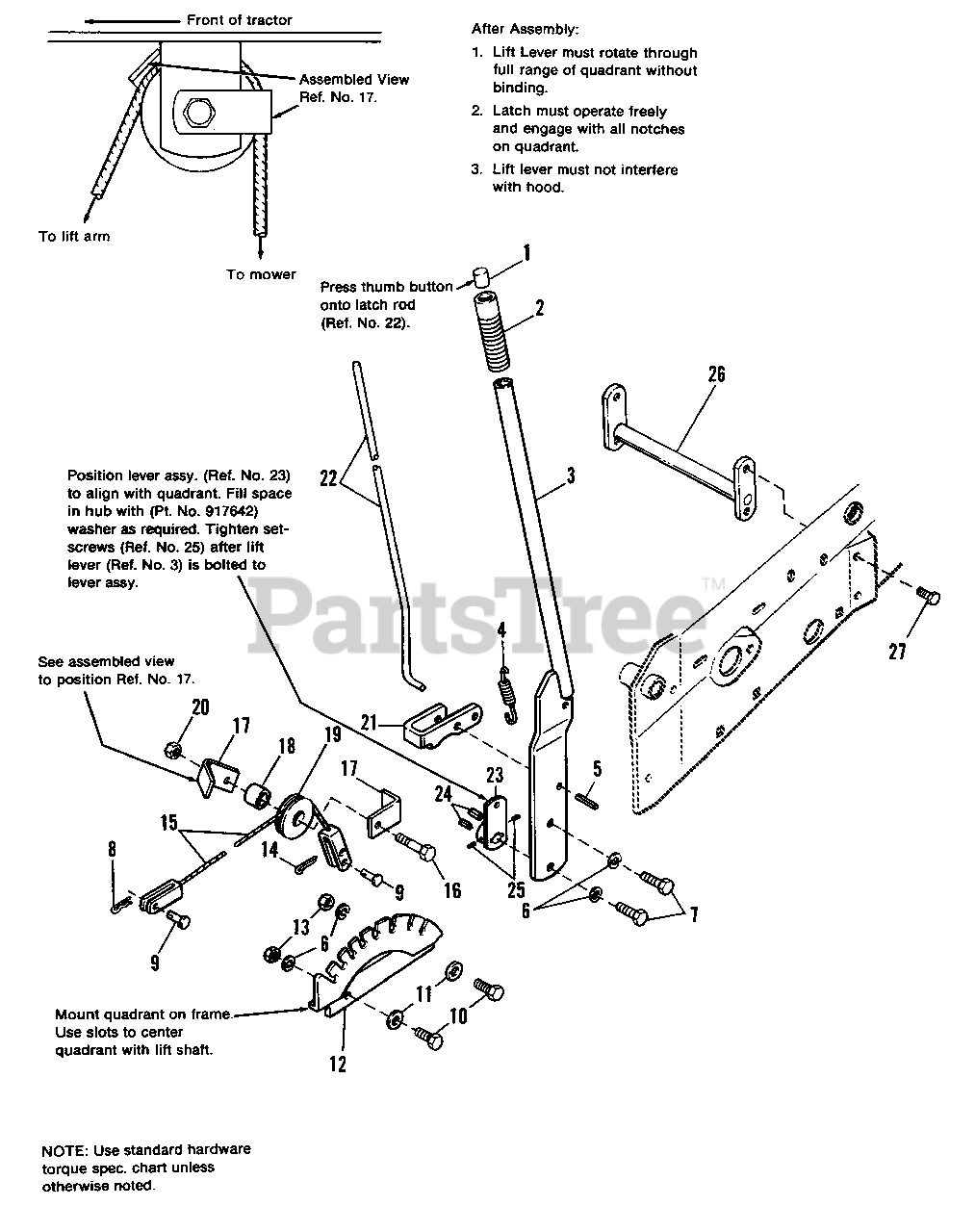

Lift Lever & Cable Group - 7112 & 7114 Parts Diagram

  • Title

1

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

2

Simplicity 2156209

GRIP
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1666257SM

LEVER ASSY., Lift

$103.99

$

Usually ships in 2-12 days

0

4

Simplicity 1650155SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 918390

PIN, Spring, 3/8 x 1-1/4

$

$

Not available

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 2823490

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

8

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1708298SM

PIN

$

$

Not available

10

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

11

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

12

Simplicity 171599

QUADRANT

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

15

Simplicity 1673700SM

CABLE ASSY., Lift

$104.99

$

Usually ships in 2-12 days

0

16

Simplicity 2108418

SCREW, Special

$

$

Not available

17

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

18

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

19

Simplicity 2172725SM

PULLEY

$48.99

$

In Stock, only 1 left!

0

20

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

21

Simplicity 173039

LATCH, Lift Lever

$

$

Not available

22

Simplicity 1666663

ROD, Latch

$

$

Not available

23

Simplicity 171593

LEVER ASSY., Lift

$

$

Not available

24

Simplicity 2157652

KEY

$

$

Not available

25

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

26

Simplicity 1673393

SUPPORT ASSY.

$

$

Not available

27

Simplicity 2823683

SCREW, Self-Tapping, 3/8 x 3/4

$

$

Not available
