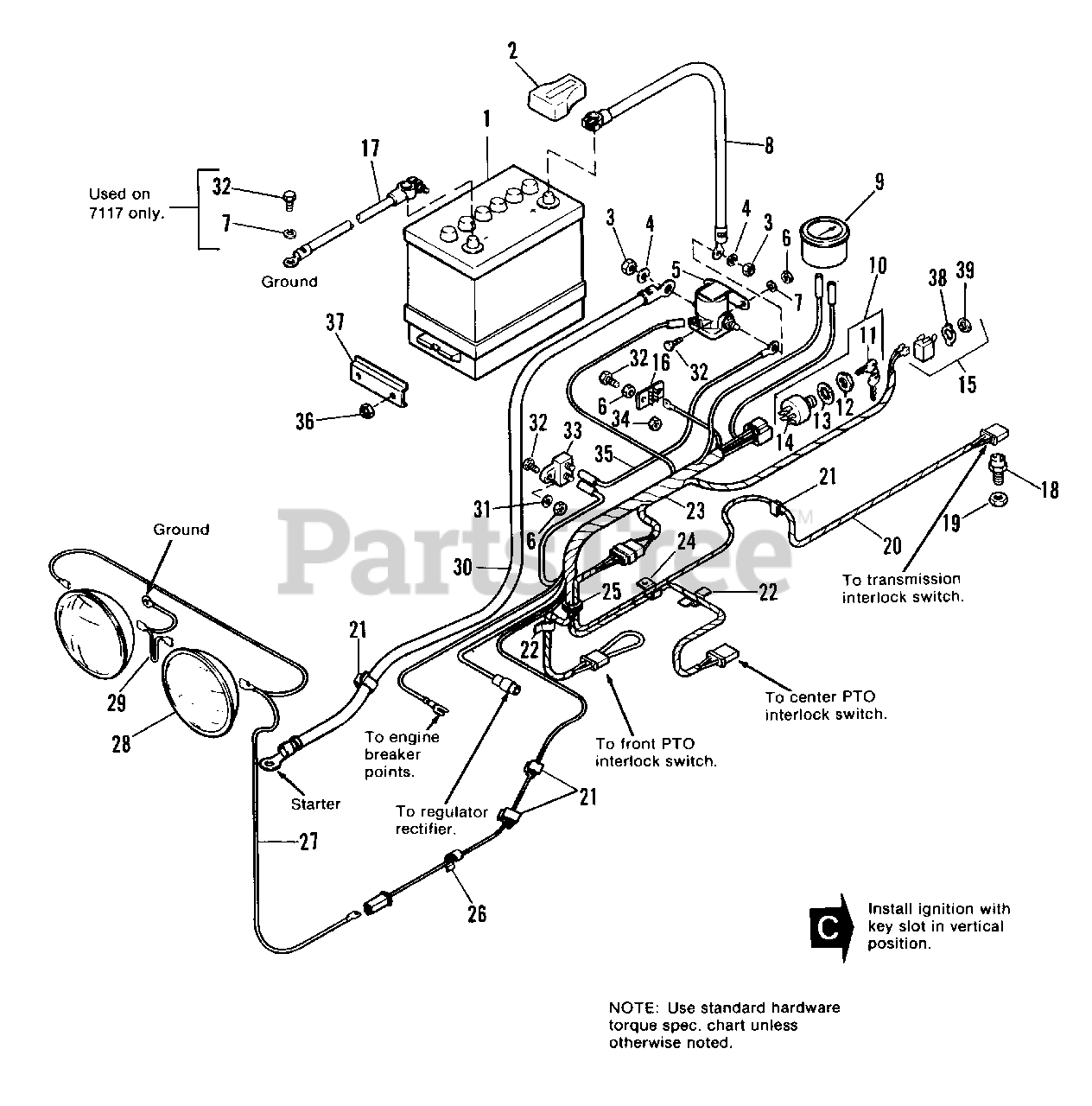

7112 (1690645) - Simplicity 42" Garden Tractor, 12hp Electrical Group Parts Diagram

42" Garden Tractor, 12hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1685058SM

BATTERY (Includes Decals)

$

$

Not available

2

Simplicity 1713534SM

PROTECTOR, Terminal

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2122216SM

SOLENOID, Starter

$

$

Not available

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2816964SM

LOCKWASHER, 1/4 (Qty. 3 on 7117)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 1665235SM

CABLE (Battery to Solenoid)

$25.99

$

In Stock, only 1 left!

0

9

Simplicity 1603189SM

AMMETER

$

$

Not available

10

Simplicity 1607280SM

SWITCH & KEY ASSY., Ignition

Note: Ref. No. 10 Includes Ref. Nos. 11, 12, 13, & 14.

$75.99

$

In Stock, Qty 6

0

11

Simplicity 1717163SM

KEY SET (2)

$8.99

$

In Stock, Qty 20+

0

12

Simplicity 122235

NUT, Special

$

$

Not available

13

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

14

SWITCH, Ignition (See Ref. No. 10)

$

$

Not available

15

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

16

Simplicity 1665230SM

BOARD, Terminal

$12.99

$

Usually ships in 2-12 days

0

17

Simplicity 2171811SM

CABLE (Battery to Ground)

$

$

Not available

18

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

19

Simplicity 1930647

NUT, Pal
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1665236

WIRE ASSY.

$

$

Not available

21

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 176912

CLIP, Tinnerman

$

$

Not available

23

Simplicity 1666327

HARNESS ASSY.

$

$

Not available

24

Simplicity 2832771

CLIP, Cable

$

$

Not available

25

Simplicity 2172175

GROMMET

$

$

Not available

26

Simplicity 2172436SM

CLIP, Tinnerman

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1666665SM

WIRE ASSY.

$5.49

$

Usually ships in 2-12 days

0

28

Simplicity 1665853SM

LAMP, Sealed Beam, G.E. #4411-1

$

$

Not available

29

Simplicity 1666731

WIRE ASSY.

$

$

Not available

30

Simplicity 1666328SM

CABLE (Solenoid to Starter)

$14.99

$

Usually ships in 2-12 days

0

31

Simplicity 921880

LOCKWASHER, 1/4

$

$

Not available

32

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8 (Qty. 6 on 7117)

$

$

Not available

33

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

34

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

35

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

36

Simplicity 2824433

LOCKNUT, Elastic, 5/16-18

$

$

Not available

37

Simplicity 2171225SM

CLAMP

$10.99

$

In Stock, only 1 left!

0

38

Simplicity 1650878

PLATE

$

$

Not available

39

Simplicity 1650880

NUT, Switch

$

$

Not available
