7112 (1690644) - Simplicity Garden Tractor, 12hp Steering Group Parts Diagram

Garden Tractor, 12hp

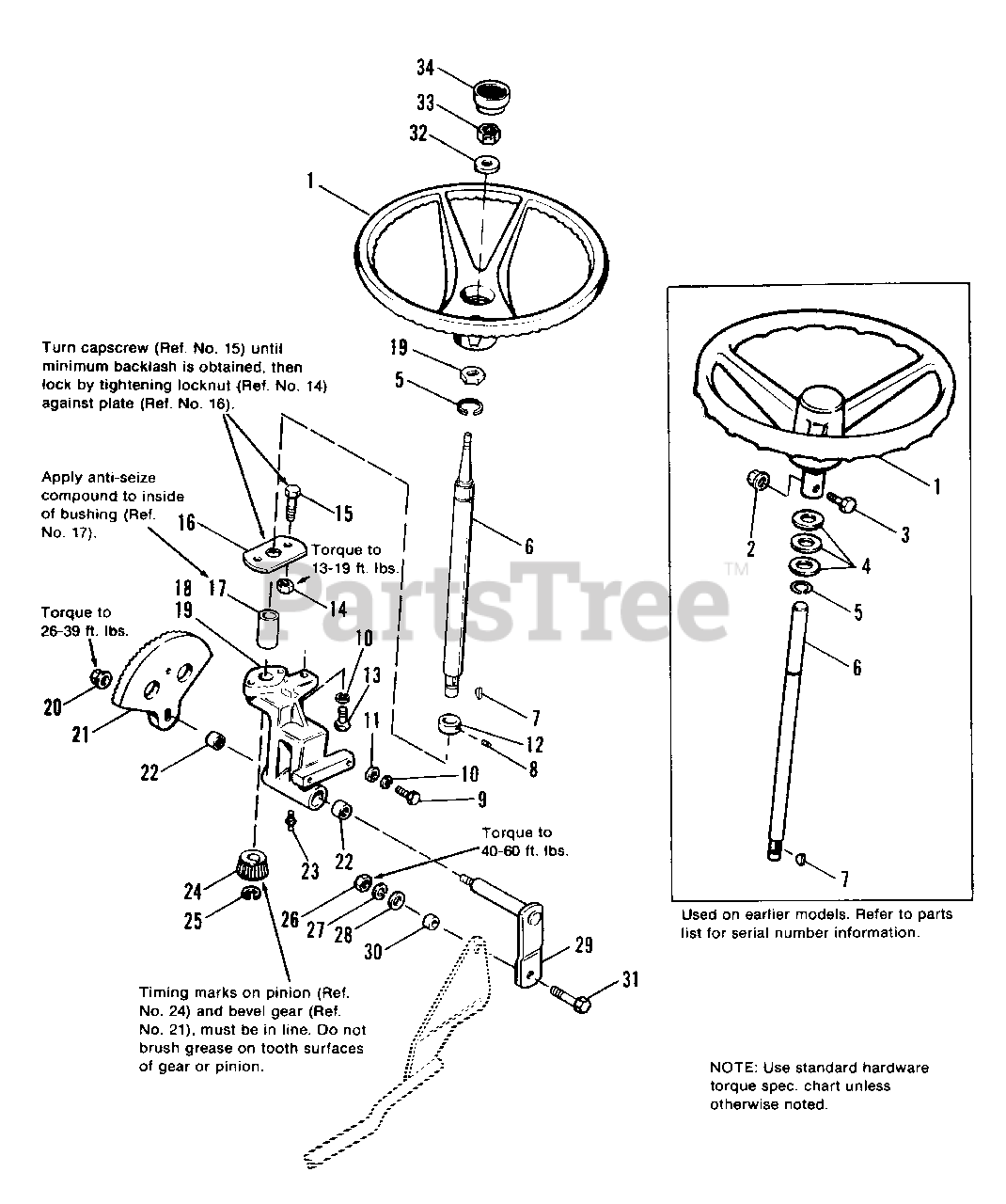

Steering Group Parts Diagram

  • Title

1

Simplicity 1685187SM

WHEEL, Steering

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$

$

Not available

1

Simplicity 1606342SM

WHEEL, Steering

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

2

Simplicity 2835048

LOCKNUT, Hex, Flange, 5/16-18

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

3

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

4

Simplicity 158223

WASHER

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

5

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1667691SM

SHAFT, Steering

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$122.99

$

Usually ships in 2-12 days

0

6

Simplicity 171020

SHAFT, Steering

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

7

Simplicity 2810224SM

KEY, Woodruff, #6

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

9

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

13

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

14

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

15

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 2171000SM

PLATE, Steering

$49.99

$

Usually ships in 2-12 days

0

17

Simplicity 2170992SM

BUSHING

$25.99

$

Usually ships in 2-12 days

0

18

Simplicity 1668625SM

HOUSING ASSY., Steering (Incl. Ref. Nos. 17 & 22)(Used with Steering Shaft 1667691)

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$239.99

$

Usually ships in 2-12 days

0

18

Simplicity 2171832

HOUSING ASSY., Steering (Incl. Ref. Nos. 17 & 22)(Used with Steering Shaft 171020)

Note: EARLY MODELS Mfg. No. 1690644 used before serial no. 1186 Mfg. No. 1690646 used before serial no. 1120 Mfg. No. 1690648 used before serial no. 1019 Mfg. No. 1690644 (Used before serial no. 1386)

$

$

Not available

19

Simplicity 1667574SM

WASHER, Hex

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 2830650

LOCKNUT, Hex, Flange, 7/16-14

$

$

Not available

21

Simplicity 2170987SM

GEAR, Bevel

$62.99

$

Usually ships in 2-12 days

0

22

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

23

Simplicity 2814687

FITTING, Grease

$

$

Not available

24

Simplicity 2170988SM

PINION, Bevel

$

$

Not available

25

Simplicity 2827793SM

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

26

Simplicity 2816951

NUT, Hex, Full, 1/2-13

$

$

Not available

27

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

28

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

29

Simplicity 1666204SM

ARM ASSY., Steering

$

$

Not available

30

Simplicity 2105051

SPACER

$

$

Not available

31

Simplicity 2820328

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2

$

$

Not available

32

Simplicity 2177649SM

WASHER, Compression

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$9.49

$

In Stock, Qty 5

0

33

Simplicity 2823362

LOCKNUT, Hex, Cntr., 5/16-18

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$

$

Not available

34

Simplicity 1657017SM

CAP, Steering Wheel

Note: LATER MODELS Mfg. No. 1690644 used after serial no. 1185 Mfg. No. 1690646 used after serial no. 1119 Mfg. No. 1690648 used after serial no. 1018

$

$

Not available
