7112 (1690644) - Simplicity Garden Tractor, 12hp Hood & Grill Group Parts Diagram

Garden Tractor, 12hp

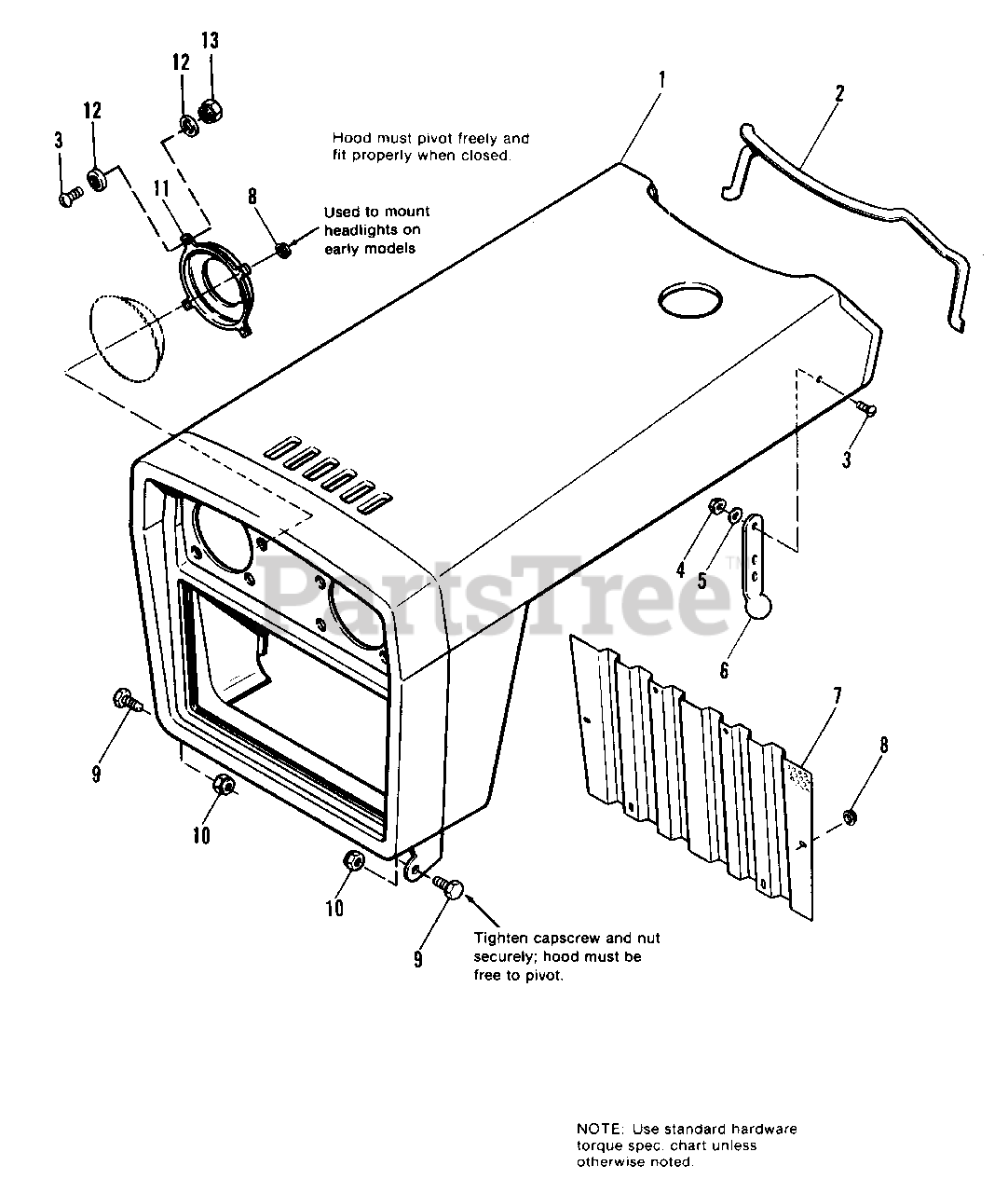

Hood & Grill Group Parts Diagram

  • Title

1

Simplicity 1669399

HOOD & GRILLE ASSY.

Note: Used on later model tractors where attaching hardware is separate from the hood.

$

$

Not available

1

Simplicity 1665945

HOOD & GRILLE ASSY.

Note: Used on early model tractors. Hood is equipped with weld studs to mount headlights. Qty. 14, required of Ref. No. 8 for this style.

$

$

Not available

2

Simplicity 1666163SM

MOULDING, Hood

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 2830531

SCREW, Truss Hd., #10-32 x 1/2 (Qty. 2 used on early models)

Note: Used on later model tractors where attaching hardware is separate from the hood.

$

$

Not available

4

Simplicity 2830627

LOCKNUT, Hex, #10-32

$

$

Not available

5

Simplicity 2171804

WASHER, Special

$

$

Not available

6

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

7

Simplicity 1666148SM

SCREEN

$83.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960517SM

LOCKNUT, Pal

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

10

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 1665813SM

BRACKET, Headlight

$27.99

$

Usually ships in 2-12 days

0

12

Simplicity 2817380

WASHER, Flat, 3/16

Note: Used on later model tractors where attaching hardware is separate from the hood.

$

$

Not available

13

Simplicity 2828919

NUT & WASHER, #10-32

Note: Used on later model tractors where attaching hardware is separate from the hood.

$

$

Not available
