7112 (1690644) - Simplicity Garden Tractor, 12hp Draw Bar Group Parts Diagram

Garden Tractor, 12hp

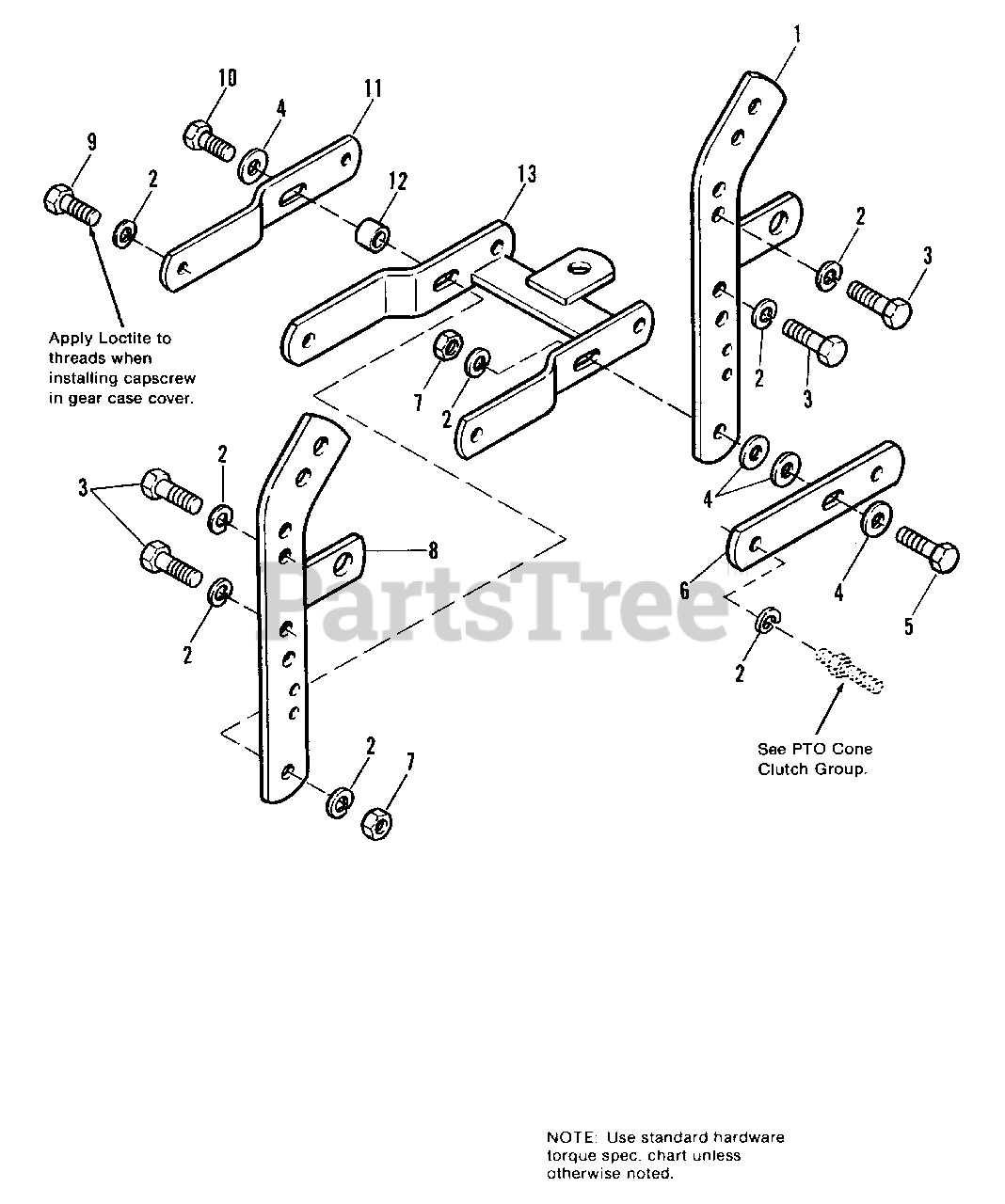

Draw Bar Group Parts Diagram

  • Title

1

Simplicity 164304

ARM ASSY., L.H.

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 20+

0

4

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

5

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

6

Simplicity 157091

BAR, Pull, L.H.

$

$

Not available

7

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

8

Simplicity 164284

ARM ASSY., R.H.

$

$

Not available

9

Simplicity 2823027

CAPSCREW, Hex Hd., 7/16-14 x 1-3/4

$

$

Not available

10

Simplicity 926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$

$

Not available

11

Simplicity 154203

BAR, Draw, R.H.

$

$

Not available

12

Simplicity 1608759SM

SPACER

$

$

Not available

13

Simplicity 154202

DRAW BAR ASSY.

$

$

Not available
