7112 (1690644) - Simplicity Garden Tractor, 12hp Dash Group Parts Diagram

Garden Tractor, 12hp

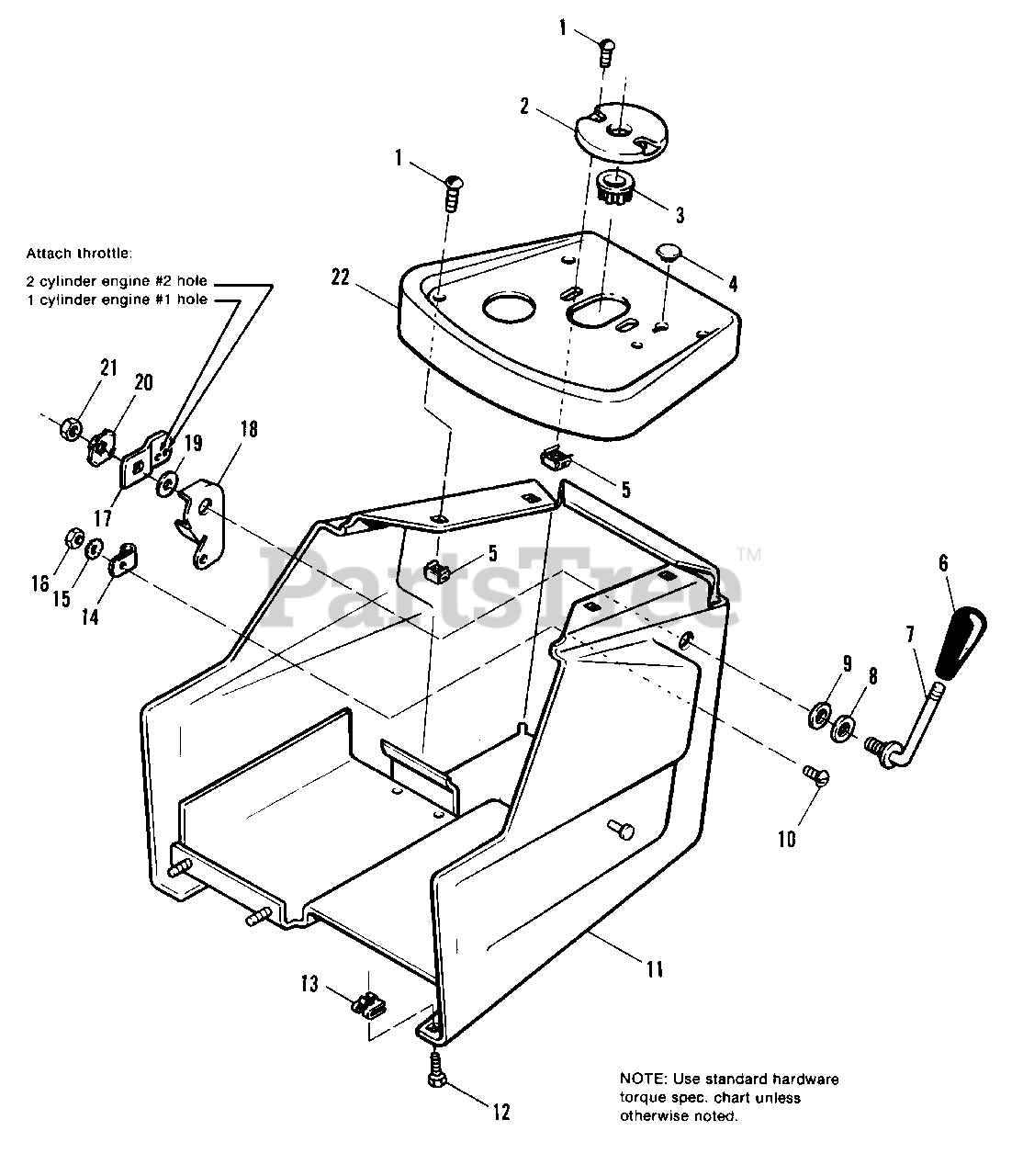

Dash Group Parts Diagram

  • Title

1

Simplicity 2826025

SCREW, Machine, Rd. Hd., 1/4-20 x 1/2

$

$

Not available

2

Simplicity 2172008SM

PLATE, Adjusting, Steering
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

3

Simplicity 2157077SM

BUSHING

$140.99

$

Usually ships in 2-12 days

0

4

Simplicity 2177447

PLUG, Button

$

$

Not available

5

Simplicity 2817867

NUT, Tinnerman

$

$

Not available

6

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

7

Simplicity 1686629SM

HANDLE, Clutch Control

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 2156116

WASHER

$

$

Not available

10

Simplicity 2830531

SCREW, Round Hd., #10-32 x 1/2

$

$

Not available

11

Simplicity 1685408SM

DASH ASSY.

$

$

Not available

12

Simplicity 2830561

SCREW, Hex, Self Tapping, #14AB x 3/4

$

$

Not available

13

Simplicity 9287-03

NUT, Speed

$

$

Not available

14

Simplicity 2158475SM

CLIP, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

15

Simplicity 2822711

LOCKWASHER, Ext., #10

$

$

Not available

16

Simplicity 2817415

NUT, Machine, Hex, #10-32

$

$

Not available

17

Simplicity 1666703SM

ARM, Throttle

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 2103280SM

STOP, Throttle

$

$

Not available

19

Simplicity 159017

WASHER

$

$

Not available

20

Simplicity 2830665

LOCKWASHER, Dished Type, 3/8

$

$

Not available

21

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1651000SM

PANEL, Instrument

$

$

Not available
