711063 - Gravely Handlebar Conversion Kit Handlebars Parts Diagram

Handlebar Conversion Kit

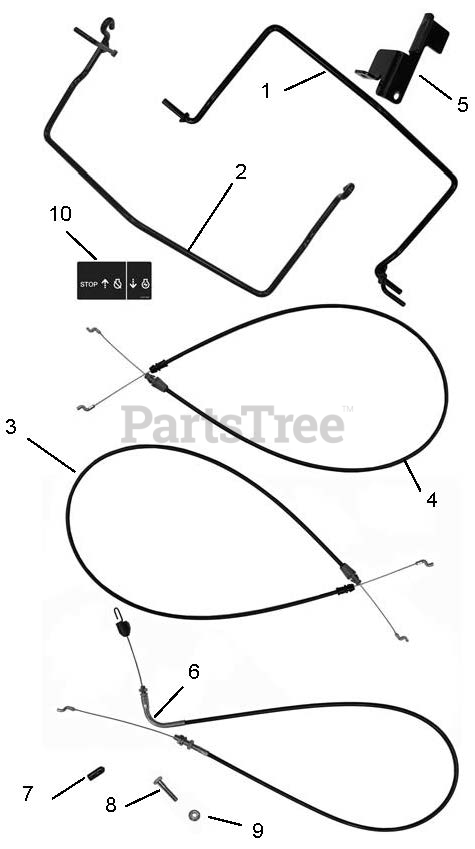

Handlebars Parts Diagram

  • Title
1

Gravely 01263751

BAIL, OPERATOR PRESENCE

$60.99

$

Usually ships in 4-12 days

0

2

Gravely 01263851

BAIL, CLUTCH

$

$

Not available

3

Gravely 01283400

CABLE, OPC GCV/GXV DBL BAIL

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 01283500

CABLE, TO BE REPLACED 12925
(Superseded to 51113800)

$65.99

$

In Stock, only 1 left!

0

5

Gravely 01250651

ANCHOR, CABLE - THUMB ADJUST

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 01246500

CABLE, XD DOUBLE BAIL DRIVE

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

8

Gravely 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

9

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07761700

DECAL - ENGINE CONTROL

$11.99

$

Usually ships in 4-12 days

0
