711040 - Ariens Large Swivel Wheel Kit Swivel Wheel Assembly Parts Diagram

Large Swivel Wheel Kit

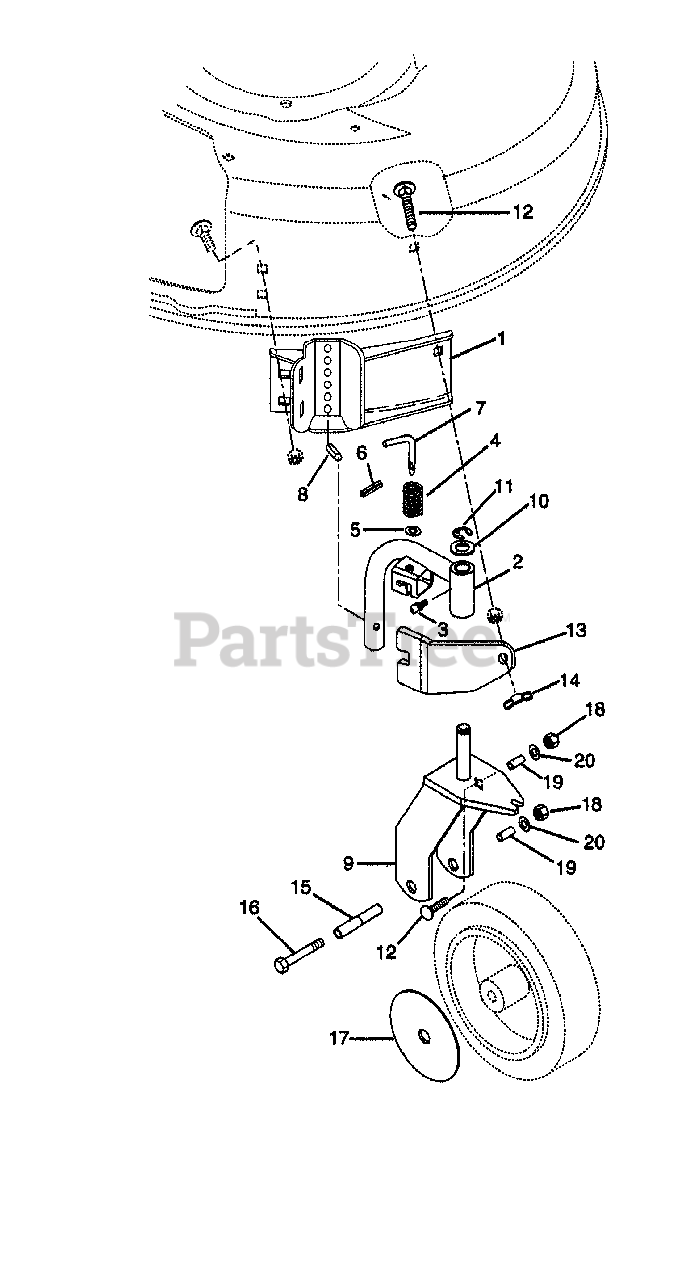

Swivel Wheel Assembly Parts Diagram

  • Title

1

Ariens 01186151

MOUNT-SWIVEL, RH

$

$

Not available

Ariens 01186251

MOUNT-SWIVEL, LH

$

$

Not available

2

Ariens 01186351

GOOSENECK-W/BSHGS, RH

$

$

Not available

Ariens 01186451

GOOSENECK-W/BSHGS, LH

$

$

Not available

3

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

4

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 6

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 18

0

7

Ariens 01186700

PIN-LATCH

$

$

Not available

8

Ariens 05801700

PIN-ROLL .313X1.25

$

$

Not available

9

Ariens 01186851

YOKE-WHEEL WELD ASSY, RH

$

$

Not available

Ariens 01186951

YOKE-WHEEL WELD ASSY, LH

$

$

Not available

10

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

13

Ariens 01187051

CLAMP-TUBE, RH

$

$

Not available

Ariens 01187151

CLAMP-TUBE, LH

$

$

Not available

14

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

15

Ariens 01187200

SPACER-SHOULDER,WHEEL

$

$

Not available

16

Ariens 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 01182800

COVER-WHEEL,FRONT SWIVEL

$

$

Not available

18

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 01187300

SPACER .334X.500X.58

$

$

Not available

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
